Pet Bottle Washing Recycling Line 1500-2000kg/H/Plastic Recycling Equipments
Zhangjiagang Glory Machinery Co., Ltd.- Material Processed：Plastic Bottle
- Plastic Type：PET
- Screw：Single-Screw
- Automation：Automation
- Computerized：Computerized
- Capacity：1500kg,H
Base Info
- Model NO.：PET-2000
- Processing：Plasitc
- Power：30kw
- Electrical：Imported
- Transport Package：Wooden Block
- Specification：1500kg,H
- Trademark：GM
- Origin：China
- Production Capacity：10sets,Year
Description
Basic Info.
Model NO. PET-2000 Processing Plasitc Power 30kw Electrical Imported Transport Package Wooden Block Specification 1500kg/H Trademark GM Origin China Production Capacity 10sets/YearProduct Description

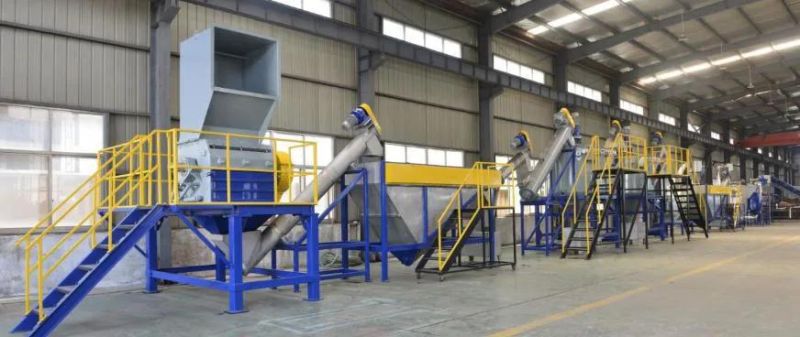

PET bottles recycling washing line
Capacity from 1000-3000kg/h

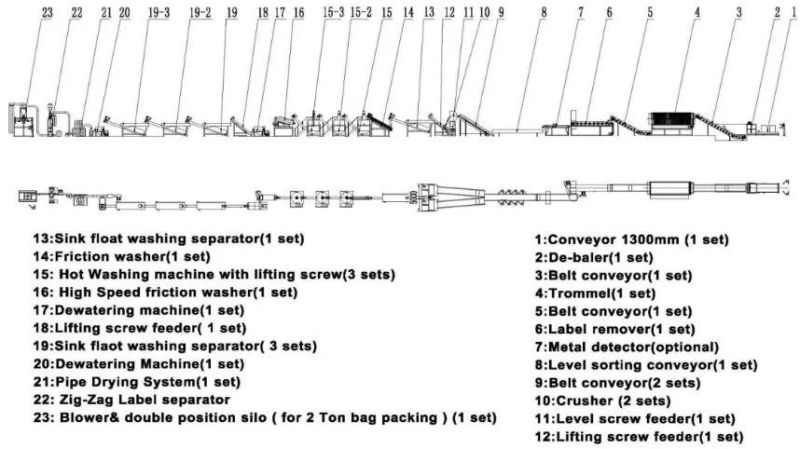

Processing flow chart
Debaling-trommel separation-pre-washing-manual sorting-wet crushing-sink float washing-hot washing-high speed friction washing-sink flat washing-air sorting-drying system-storage and packing
Main parameters
| Capacity | 500kg/h | 1000kg/h | 2000kg//h |
| Size of the production line | 30x10x6m | 50x120x6m | 80x15x6m |
| Total power | 155kw | 285kw | 445kw |
| Water consumption | 3t/h | 4t/h | 5t/h |
Main technical parameters:
1.1. Electricity power use :380V,50Hz,3phase
1.2 Material: PET bottles
1.3. Final size of scraps: mesh screen: φ12mm
1.4. Output: 1500-2000Kg/hour
1.5 Machine color: specified by customer
