Mini Plastic Film Extruder Machine with Rotary Die Head Hot Sale
WENZHOU E-SHION MACHINERY CO., LTD.- Type：PE Film Blowing Machine
- Raw Material：PE
- Maximum Folding Width of Film：600mm
- Screw Diameter：45mm
- Automation：Non-Automatic
- Computerized：Non-Computerized
Base Info
- Machine Weight：4T
- Certification：CE
- Screw Material：Double Alloy
- Die Head：Rotary Head
- Heater Material：Cast Aluminum
- Motor：China , Siemens Is Optional
- Inverter：China ,Delta or Panasonic Is Optional
- Electric Parts：Schneider ,Panasonic
- Temperature Control：Omron
- Gear Box /Reducer：Shuguang ,Hangzhou Weili
- Winder：Sing , Double
- Air Ring：Double-Lip Air Ring
- Transport Package：Plastic Film ,Bubble Film
- Specification：600mm
- Trademark：E-SHION
- Origin：China
- HS Code：8477309000
- Production Capacity：100sets,Year
Description
Power
5.5-24KW
Assistance Machine
0.75KW
Heating
12KW
Die-Head
Φ50-300mm Choose freely
Screw Diameter
Φ45/50mm Choose freely
Screw L/D Ratio
L/D 28:1
Screw Speed
10-100r/min
Max Ouput
30-50kg/h
Film Thickness
0.008-0.10 mm
Film Width
50-600 mm
Weight
2-3.5T
If you need other film blowing machine. Please click here

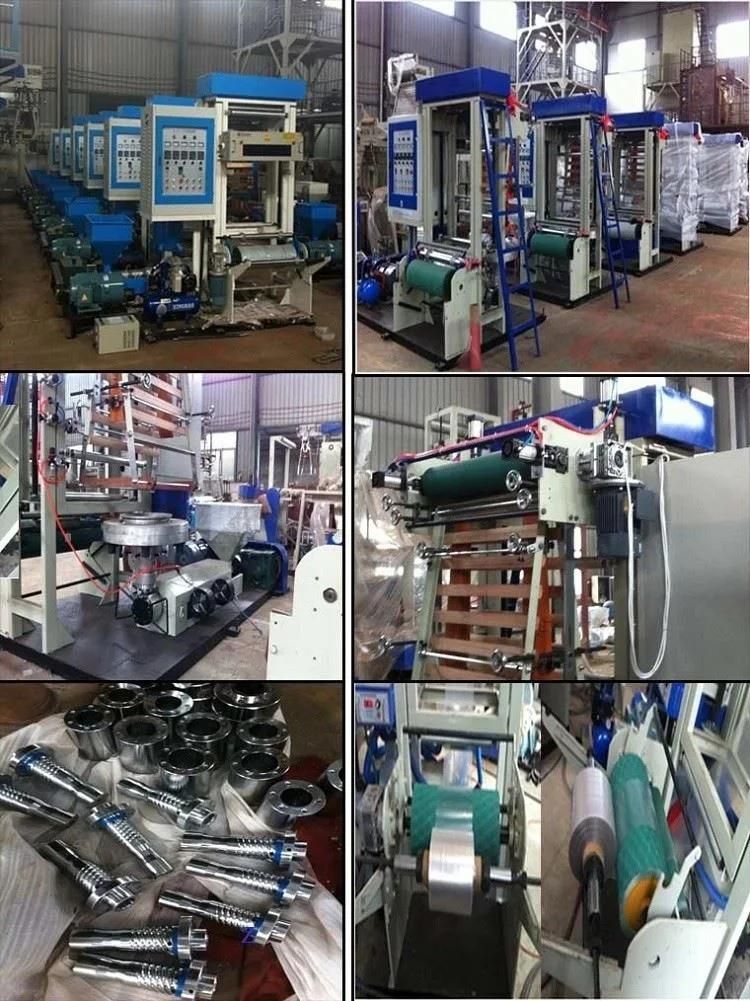

Machines in our workshop :
