PVC Pipe Production Line/PVC Pipe Making Machine/ PVC Pipe Extruder/ PVC Pipe Machine
ZHANGJIAGANG QING CHEN YU MACHINERY CO., LTD.- Product Type:PVC Pipe
- Automation:Automatic
- Computerized:Computerized
- Certification:CE
- PVC Pipe:63-1200mm
- Transport Package:Wooden
Base Info
- Model NO.:xjg
- Specification:ISO,CE
- Trademark:XJG
- Origin:China
- HS Code:8477800000
- Production Capacity:UNCERTAIN
Description
Basic Info.
Model NO. xjg Specification ISO/CE Trademark XJG Origin China HS Code 8477800000 Production Capacity UNCERTAINProduct Description

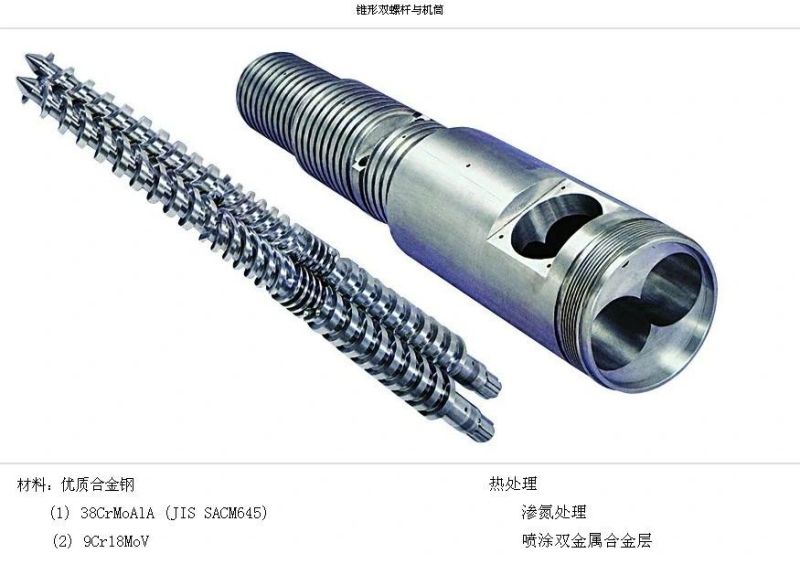

Φ 20-Φ 630 series PVC pipe extrusion line is mainly used in the manufacture of plastic PVC pipes with various diameters and wall thickness used in the industries such as agriculture and constructional plumbing, cable laying etc. This line is composed of conical twin-screw extruder, vacuum calibration tank, haul-off, cutter, stake and etc. The extruder and haul-off adopt imported AC frequency speed controller, vacuum pump and haul-off motor all adopt superior products. The haul-off method has two-claw, three-claw, four-claw, six-claw and etc. You may choose saw blade cutting type or planetary cutting type. It is additionally attached with length counter and intensifying device. This line is of reliable preformance and high production efficiency. Our company can also manufacture special pipe production lines, e. G. Spiral silencing pipe and core foaming pipe according to your requirements.Diameter scope (mm) | 16-40 Dual | 20-63 Dual | 20-63 | 50-160 | 63-200 | 160-315 | 315-630 | 560-800 |
Conical extruder | SJZ51/105 | SJZ65/132 | SJZ51/105 | SJZ65/132 | SJZ65/132 | SJZ80/156 | SJZ92/188 | SJZ105/216 |
Extruder Power(KW) | 18.5 AC | 37 AC | 18.5 AC | 37 AC | 37 AC | 55 AC | 110 DC | 160 DC |
Max. capacity (KG) | 120 | 250 | 120 | 250 | 250 | 350 | 800 | 1100 |
Max. Lineal speed (m/min..) | 10 | 15 | 15 | 8 | 3.5 | 3 | 1.2 | 1.3 |
