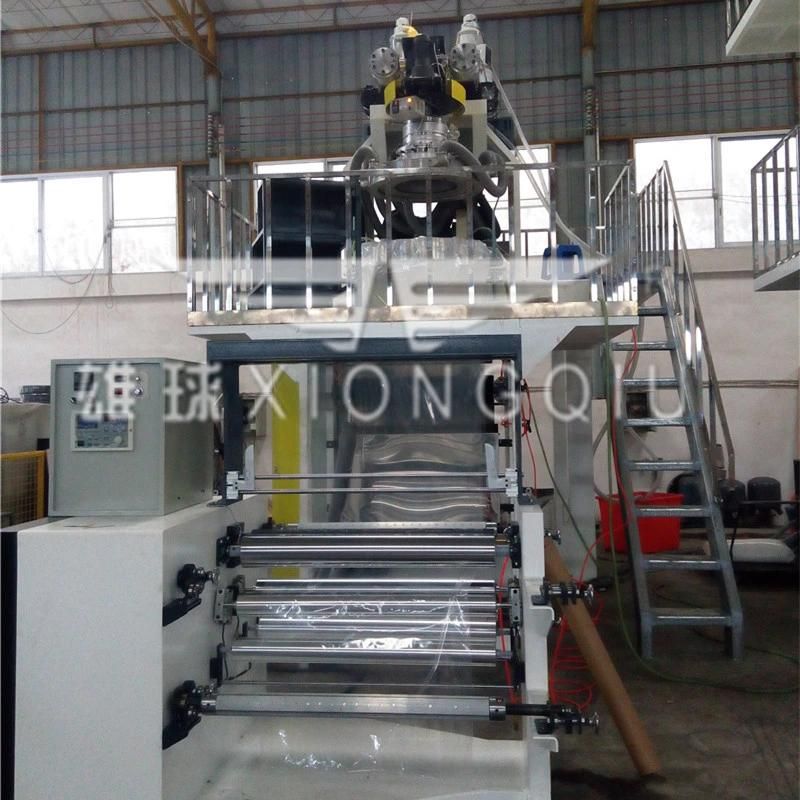

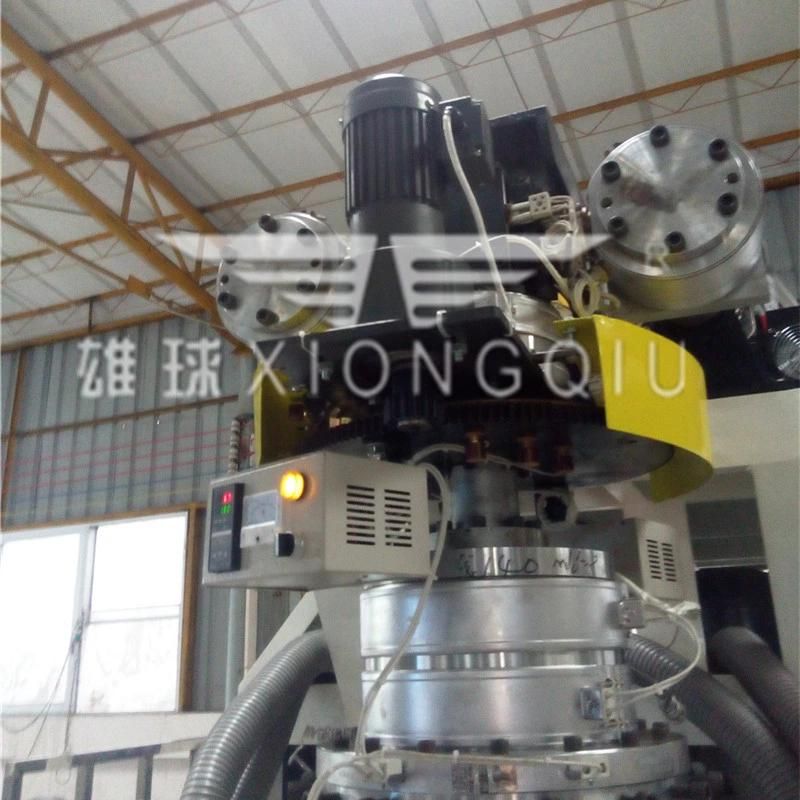

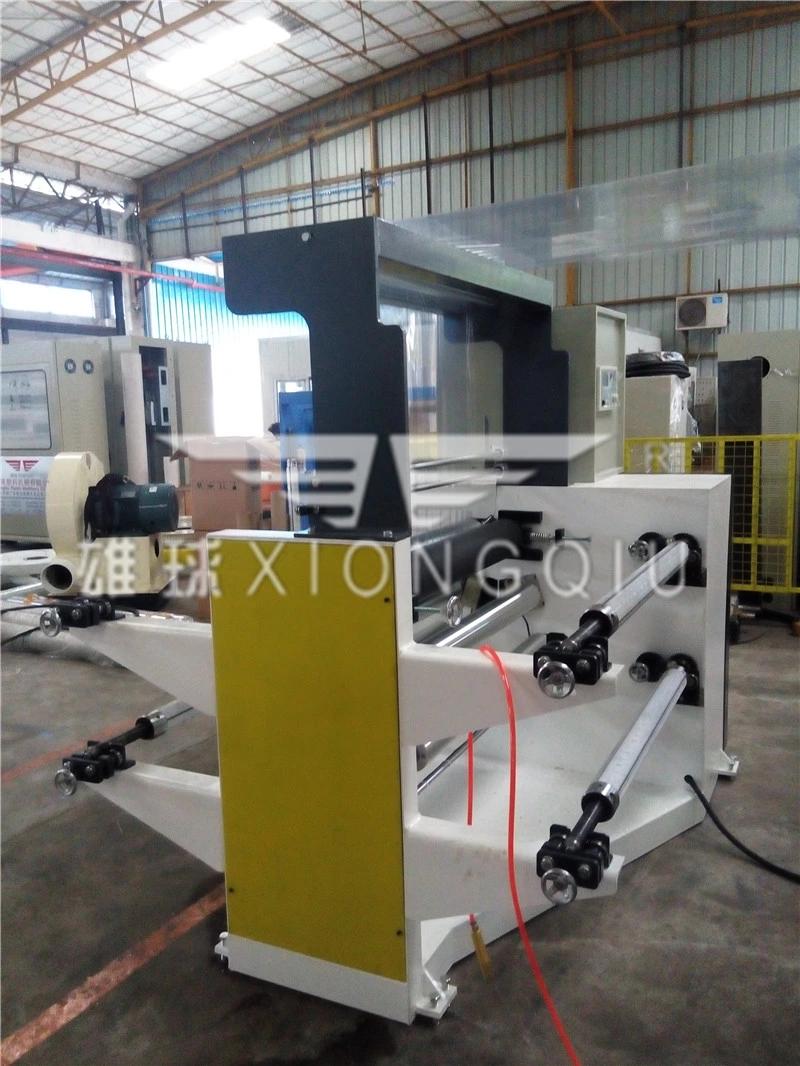

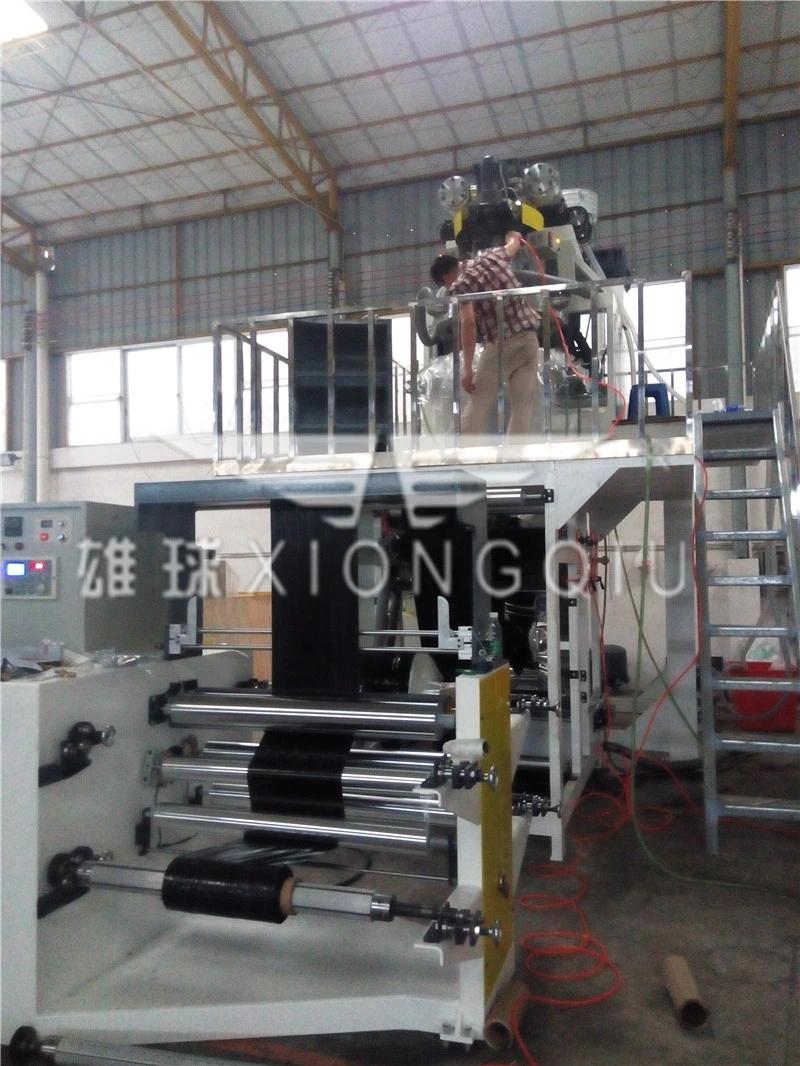

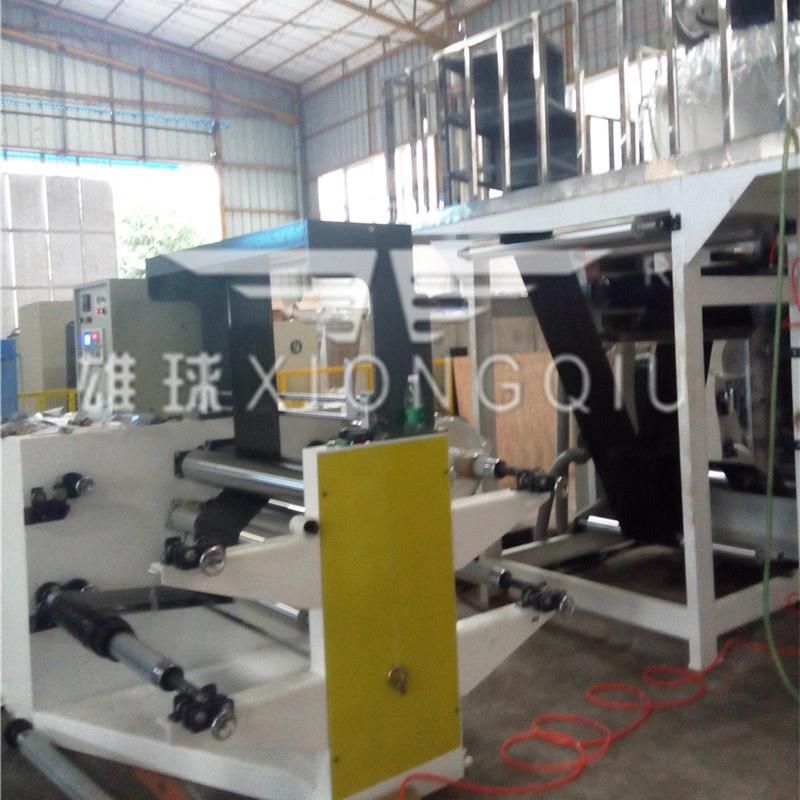

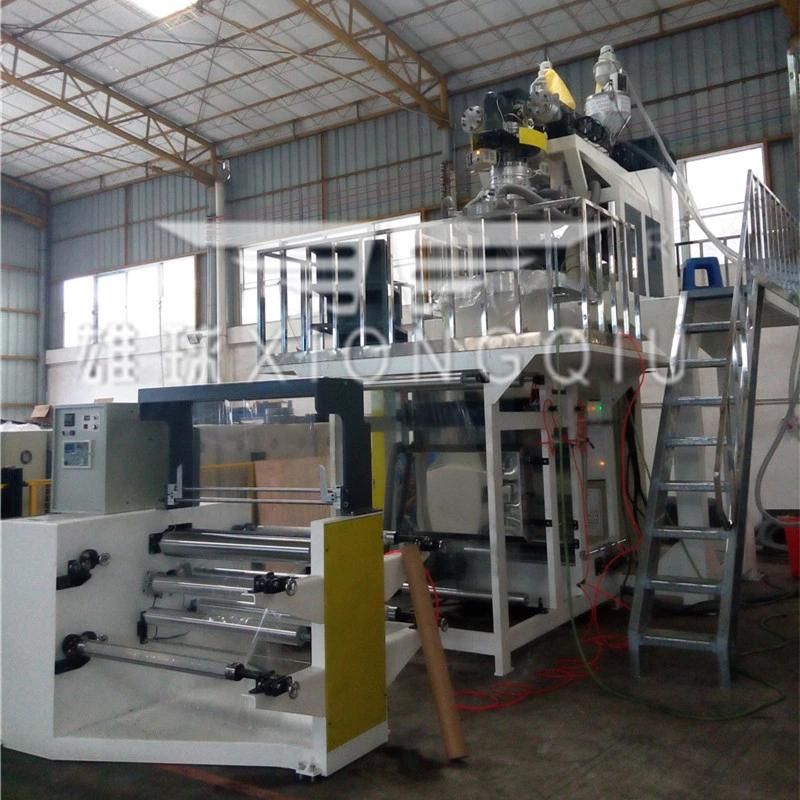

ABA 3 Layers PP Film Blowing Machine Pictures & Photos ABA 3 Layers PP Film Blowing ...
Xiongqiu Plastic Machinery Co., Ltd.- Type：PP Film Blowing Machine
- Raw Material：PP
- Maximum Folding Width of Film：1100mm
- Screw Diameter：65mm*2
- Automation：Non-Automatic
- Computerized：Computerized
Base Info
- Model NO.：FMP2-1100S8
- Machine Weight：6t
- Certification：CE, ISO9001:2008
- Size：L*W*H: 6m * 3m * 5.5m
- Voltage：380V 50Hz 3phase
- Transport Package：Plastic Warp Film for Container Shipment
- Specification：single layer
- Trademark：Xiongqiu Plastic Machinery Co., Ltd.
- Origin：Foshan, Guangdong Province
- HS Code：8477800000
Description
PPA / PPEfilm width(mm) 150--700 300--900 400--1100 thickness 0.02--0.15mm screw diameter Φ45mm * 2 Φ55mm * 2 Φ65mm * 2 L/D ratio 28:1 die diameter Φ220mm Φ330mm Φ430mm die structure Spiral mandrel die chrome plated surface 40Cr main power 11kw*2 18.5kw*2 22kw*2 max output 65kg/h 85kg/h 105kg/h optional equipment auto-loader device, film surface treater, air compressor, rotary die head, draging rotary
