• Model NO.：PU20J-T
• Trademark：ZCE
• Origin：China
• HS Code：8477800000
• Production Capacity：50,Month

Basic Info.

Model NO. PU20J-T Trademark ZCE Origin China HS Code 8477800000 Production Capacity 50/Month

Product Description

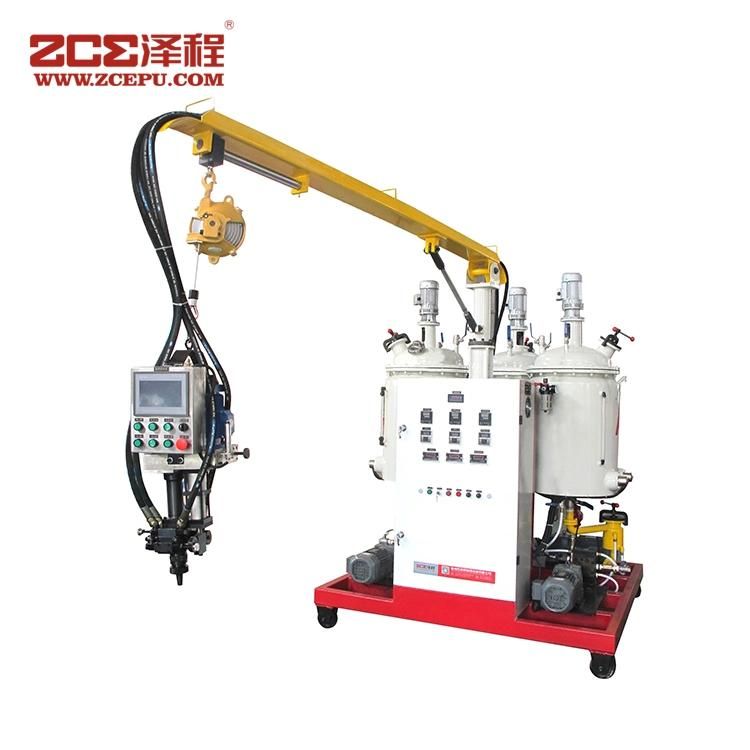

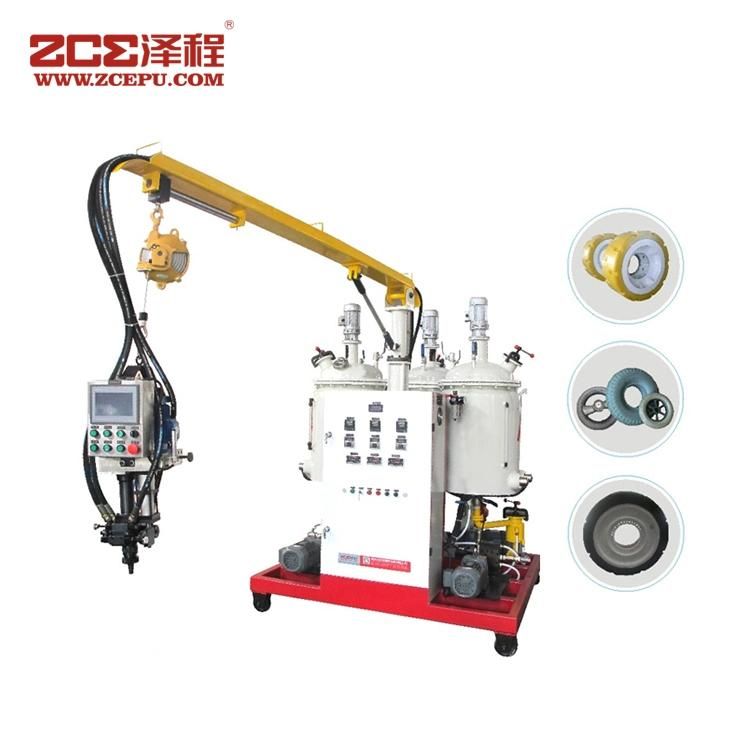

Product Photos


Applications

The product is used to produce polyurethane microporous industrial tires products, such as all kinds of bicycle tires, medical equipment tires, buggy tires, wheelchair tires, golf cart tires,industrial tires and solid tires for a variety of purposes.

Features

1.Using itelligent digital display meter, temperature error≤ ±1ºC.
2.High-temperature resistant low- speed high-precision metering pump; accurate matching, flexible adjustment and measurement accuracy error of less than ±0.5%.
3.Special mixing device: rational design, reliable pertormance, patented mixing head, uniform mixing; the requirement of microporous structure is completely guaranteed.
4. Adopt the imported PLC controller to supervise the control system of the whole equipment, automatically judge abnormality, make diagnosis and alarm, display abnormal factors; PLC module control, casting, automatic cleaning and air impact; stable performance and strong operability.

Main Parameters

ITEM	Machine Head Speed (r/min)	Total Discharge amount (kg/min)	Mixing Ratio (A:B)	External Dimension (mm)	Total Power (kw)	Weight (kg)
PU20J-T1	4000-6000	1-5	1:1	1700*1300*2400	8	1000
PU20J-T2	4000-6001	3-12	1:1	1700*1300*2400	9	1000
PU20J-T3	4000-6002	10-30	1:1	1700*1300*2400	9	1300
