12mm-75mm HDPE PP/Mpp Pipe Extrusion Line
QINGDAO TRUSTY PLASTIC MACHINERY CO., LTD.- After-sales Service：Oversea Installation and Debugging
- Warranty：14 Months
- Product Type：PE Pipe
- Screw：Single-Screw
- Automation：Automatic
- Computerized：Computerized
Base Info
- Model NO.：SJ-65
- Certification：CE
- Customized：Customized
- Condition：New
- Length(M)：30m
- Converter：ABB
- Width(M)：2
- Height(M)：3.5
- Contactor：Siemens
- Temperature Controller：Delta
- Motor：Bette
- Transport Package：Wooden Packing
- Specification：SJ-65
- Trademark：Trusty
- Origin：Qingdao
- HS Code：84772090
- Production Capacity：10sets,Month
Description
2.Machine List
| Name | Quantity(set) |
| Automatic drying feeder | 1 |

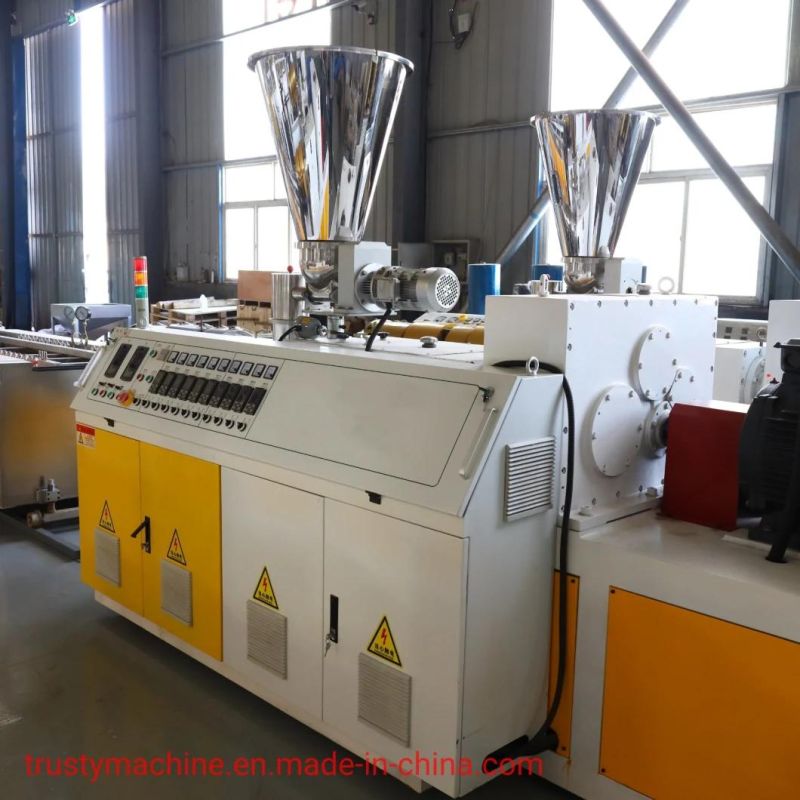

| Single screw extruder | 1 |
| Marker line extruder | 1 |
| Extruding mould | 1 |
| Shaper | 1 |
| Vacuum tank | 1 |
| Spray box | 1 |

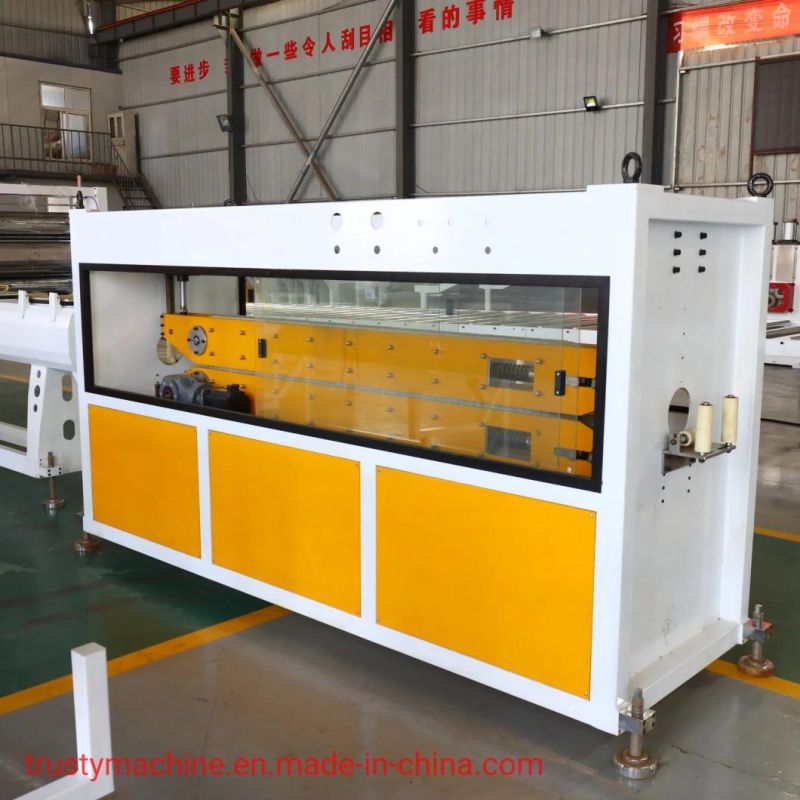

| Haul off with caterpillar | 1 |
| Computer printer | 1 |
| Chipless cutter | 1 |
| Roll over table | 1 |
| Crusher | 1 |
3.Technical parameter
Pipe range | 16-63mm | 20-110mm | 75-160mm | 90-250mm | 110-315mm | 160-450mm | 315-630mm | 500-800mm |
| Extruder | ¢65mm | ¢65mm | ¢75mm | ¢75mm | ¢90mm | ¢90mm | ¢120mm | ¢150mm |
| Extruder power | AC45kw | AC55kw | AC110kw | DC160kw | DC160kw | DC160kw | DC280kw | DC335kw |
Extrusion capacity | 80-120kg | 100-150kg | 250-300kg | 250-300kg | 350-400kg | 350-400kg | 650-700kg | 850-900kg |
Max. production speed | 18m/min | 12m/min | 6m/min | 6m/min | 3 m/min | 1.2m/min | 0.9m/min | 0.7m/min |
4. Production Process
Feed→Extrude→Shape→Spray→Haul off→Print→Cut→Stack the material→Crush
5.After sales service
(1)After the machines are finished, the seller will test all machines before shipment. If the buyer can not come to test the machine, we will test the machines and send the sample to buyer.
(2)After shipment, the seller will send one or two technicians to the buyer' s factory to help the buyer install the machine and train workers for buyer.
(3)We will supply all electricity drawing, machine installation drawing.
(4)When make shipment, we will put some spare electricity parts for free, like the barrel hearers, thermcouples, breakers, relays, and other items which is easier broken.
6.Company Profile
Qingdao Trusty plastic machinery company is located in Qingdao shandong peninsula, a beautiful coastal city, where railway, sea and aviation are very convenient.Our company manages each kind of plastic machinery, has the rich mature technical experience.
The quality of the equipment is reliable, and the price is reasonable.New and old customers are willing to visit our company to guide and jointly develop new requirements, new standards, new technologies and new processes in this industry.
