• Model NO.：Topsun
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Capacity：80-1800kg,H
• Series：Tsx
• Transport Package：Pallet,Case
• Trademark：TOPSUN
• Origin：Yantai, China
• HS Code：8474
• Production Capacity：5 PCS,Month

Basic Info.

Model NO. Topsun Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Capacity 80-1800kg/H Series Tsx Transport Package Pallet/Case Trademark TOPSUN Origin Yantai, China HS Code 8474 Production Capacity 5 PCS/Month

Product Description



Website: ytopsun.en.made-in-china.com,  ytopsun.en.made-in-china.com

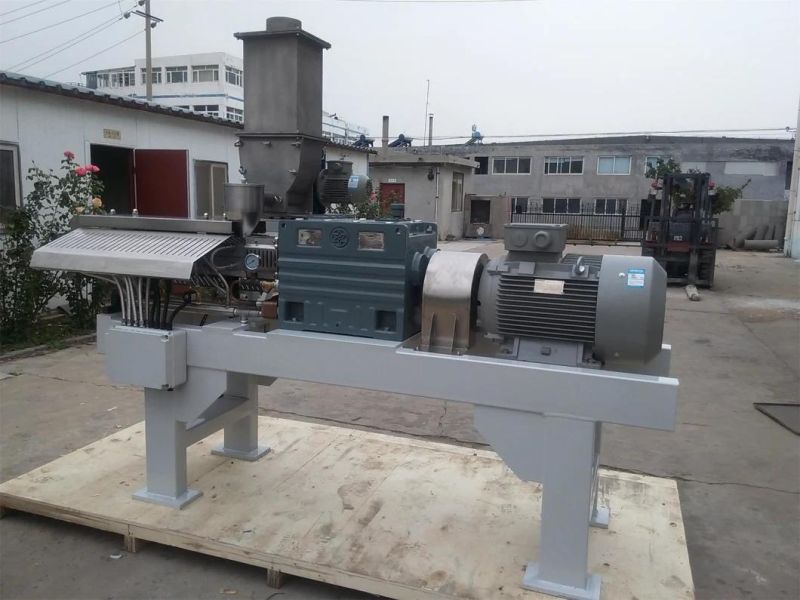

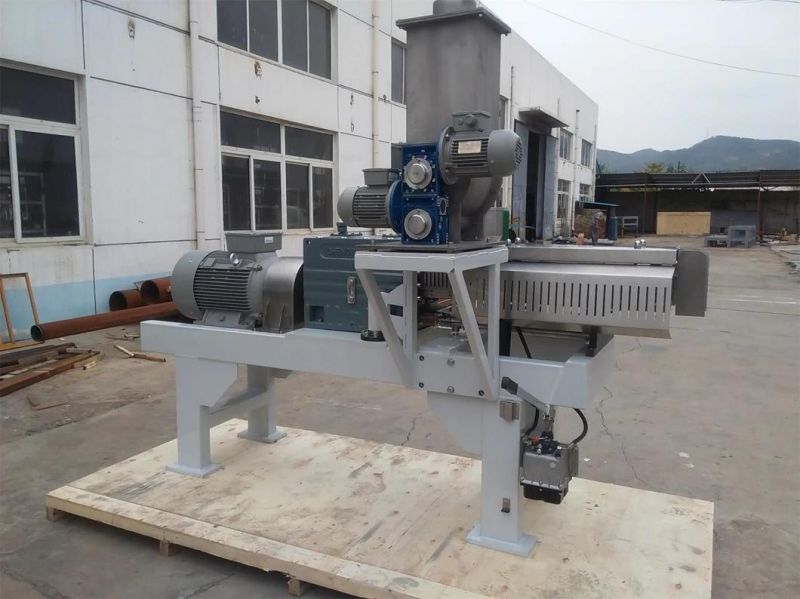

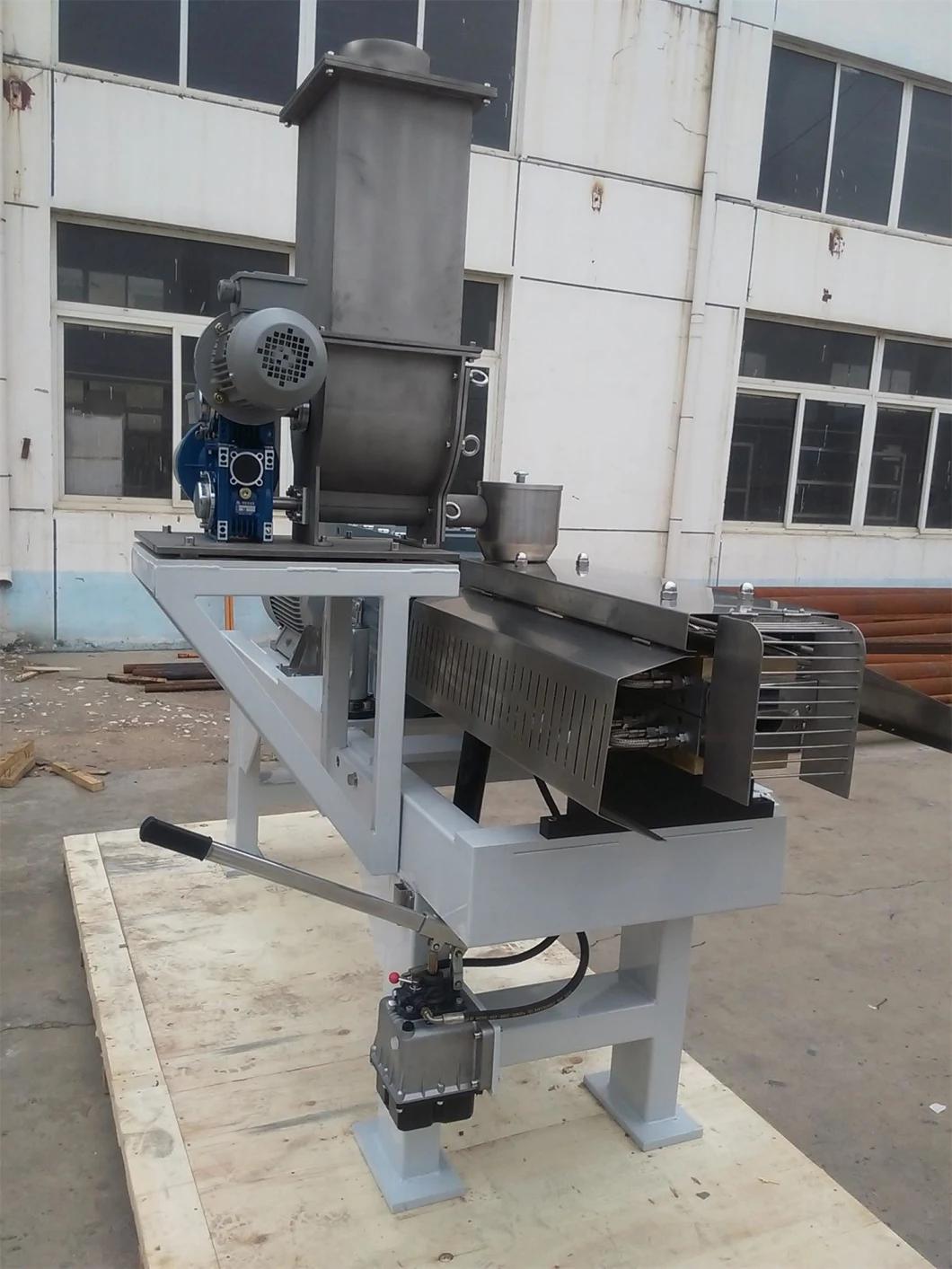

High torque & High Speed Rotation Twin-Screw Extruder:




1. Main Features:

*Easy to use and easy to clean

*Advanced heating and through-shaft cooling

*specific power and torque maximise output without wasting energy

*Torque limiter to protect the drive train

*Accurate and responsive temperature control over barrel

*Split design of barrel and liner inserts for easy cleaning and maintainence

*Top & Side feeding options

*Stainless cover for safety and appearance

2. Technical Parameters:


Model	Capacity (kg/h)	Diameter (mm)	Screw Length (mm)	Screw Speed (r/min)	Main Motor (kw)	Feeder Motor (kw)	Heating Power (kw)	Overall Dimensions (mm)
TSX-40	80-260	40	16D	0-800	11/15/18.5	0.55	8	1850*700*1750
TSX-52	150-450	52	16D	0-800	22/30/37	0.75	10	2700*900*2200
TSX-65	400-1000	65	16D	0-800	45/55/75	1.1	12	2900*1000*2400
TSX-75	800-1200	75	16D	0-800	75/90	1.5	16	3100*1200*2500
TSX-85	1200-1800	85	16D	0-800	90/110	2.2	20	3700*1500*2900

3. Company:

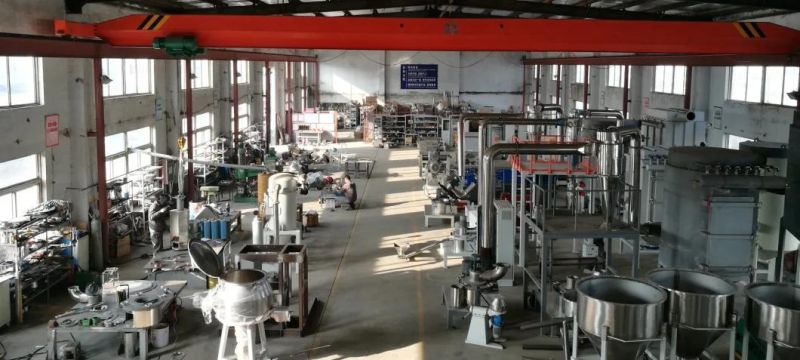

Dongsun is a leading manufacturer in China of Powder Coating Production Equipments, i.e. Mixers, Extruders, Cooling Belt and Air Classifier Mill. We inherit 30 years of experiences of this industry and have exported to nearly 30 countries and regions in the past 10 years, and win widely good reputations.

We passed CE certification approval and ATEX explosion resistant test, etc. international standards, we do know how to meet the diversified and customized made requests of our customers.

Our everlasting business philosophy: consistant quality, effective communication, responsible service.

1. Mixers:

1.1 Automatic Container Mixer
Automatic container mixer is working with continuous material trolleys, the container fills the materials and lifted up and connected tightly with mixing head automatically. The mixing head tilts together with the containers, and then obtain the homogeneous mixing result, after finishing mixing as per setting time, and return to original position, the whole process will be controlled by PLC

Main Features:

Several detachable containers for circular operation
High efficiency
Adopting PLC to realize automation
Homogenized mixture
No curing granule
Convenient for cleaning and maintenance
Safe and reliable operation

Technical Data:

Model	Volume (L)	Output (kg/tank)	Mixing Motor (kw)	Tilting Motor (kw)	Crushing Motor (kw)	Mixing Time (min)	Control Mode	Overall Dimensions (MM)
FHJ-15	15	8	1.5			5-10	PLC	750*480*950
FHJ-120	120	60	5.5	0.2		5-10	PLC	1800*1800*1950
FHJ-150	150	70	5.5	0.37	2.2	5-10	PLC	2150*1100*2300
FHJ-300	300	150	15	3	2.2	5-10	PLC	2150*1100*2300
FHJ-600	600	300	22	4	4	5-10	PLC	2650*1250*2700
FHJ-1000	1000	500	30	4	4	5-10	PLC	2900*1550*3100
FHJ-2000	2000	1000	45	5.5	5.5	5-10	PLC	3500*2350*3650

1.2 High Speed Pre-Mixer:

Features:
High efficiency & easy operation
Easy color changing, safe cleaning
Combined mixing & crushing as one
Mixing time presetting, short & homogeneous
Excellent sealing, powder leaking free
Vertical or horizontal type as optional

Technical Data:

Model	Volume (L)	Mixing Motor (kw)	Crushing Motor (kw)	Mixing Time (min)	Overall Dimensions (mm)
GHJ-20	20	0.55	0.37	3-5	700*500*800
GHJ-100	100	3	1.5	3-5	1000*600*900
GHJ-200	200	5.5	3	3-5	1500*900*1400
GHJ-300	300	7.5	4	3-6	1800*900*1400
GHJ-500	500	15	5.5	4-6	1800*1300*1800
GHJ-800	800	18.5	7.5	4-6	1900*1300*2000
GHJ-1000	1000	22	7.5	4-6	2300*1400*2000

1.3 Double Cone Mixer:

This twin-cone mixer is composed of a rotating container with two cones and two stirrers. This machine is applicable for powder coating, pharmaceutical, chemical, foodstuff, dyestuff, and other multi-compound materials. It has remarkable effect in mixing powders and particles with relatively good fluidity. Its barrel is made of stainless steel, which is polished both inside and outside, featuring beautiful appearance and easy operation.

Technical Data:

Model	Volume (L)	Output (kg/tank)	Rotating Motor (kw)	Mixing Motor (kw)	Mixing Time (min)	Overall Dimensions (mm)
SXH-100	300	150	1.5	1.5	0-30	1760*830*2030
SXH-200	400	200	1.5	1.5	0-30	1830*830*2150
SXH-300	600	300	2.2	1.5	0-30	1980*1000*2275
SXH-500	1000	500	4	4	1-30	2630*1140*2620
SXH-1000	2000	1000	5.5	5.5	0-30	3060*1440*2860
SXH-1500	3000	1500	7.5	7.5	0-30	3700*2000*2970
SXH-2000	4000	2000	8.5	8.5	0-30	3800*2500*3500

2. Twin-Screw Extruder

2.1 High torque & High Speed Rotation Twin-Screw Extruder:

Main Features:
*Full Gearbox from professional OEM maker, low noise, durable longevity
*High screw speed, high shearing, quick discharge
*Independent lube oil cooling system design
*Torque limiter to protect the drive train
*Suitable for reclaim powder, special powder production
*Split design of barrel and liner inserts for easy cleaning and maintainence

*Top & Side feeding options
*Other features same as conventional type extruder

Technical Parameters:

Model	Capacity (kg/h)	Screw Diameter (mm)	Screw Length (mm)	Screw Speed (r/min)	Main Motor (kw)	Feeder Motor (kw)	Heating Power (kw)	Overall Dimensions (mm)
TSX-40	80-260	40	16D	0-800	11/15/18.5	0.55	8	1850*700*1750
TSX-52	150-450	52	16D	0-800	22/30/37	0.75	10	2700*900*2200
TSX-65	400-1000	65	16D	0-800	45/55/75	1.1	12	2900*1000*2400
TSX-75	800-1200	75	16D	0-800	75/90	1.5	16	3100*1200*2500
TSX-85	1200-1800	85	16D	0-800	90/110	2.2	20	3700*1500*2900

2.2 Conventional Type Co-Rotation Parallel Twin Screw Extruder

Features:
*Strong shearing, easy cleaning
*Accurate auto temperature control, high cooling & heating exchange
*Hinged clamshell type barrel opening, segmented liners for easy replacing and cost saving
*Feeder easy assembly & disassembly, inner structure to avoid agglomeration
*Configurable screw applied for different powder formulas
*Screw and barrel adopt special materials like Cr12MoV, CPM, etc., high wearing resisting
*Quite gearbox with low noise dB level
*Torque limiter to protect the drive train
*Low energy consumption

Technical Parameters:

Model	Capacity (kg/h)	Screw Diameter (mm)	Screw Length	Screw Speed (r/min)	Main Motor (kw)	Feeder Motor (kw)	Heating Power (kw)	Overall Dimensions (mm)
SLJ-40	80-220	40	16D	0-500	11/15/18.5	0.55	4	1800*600*1700
SLJ-50	150-300	50	16D	0-500	22/30	0.75	8	2600*700*2000
SLJ-55	300-400	55	16D	0-500	30/37	0.75	8	2700*900*2300
SLJ-60	400-600	60	16D	0-500	45	1.1	12	2750*1000*2350
SLJ-75	600-800	75	16D	0-500	55	1.5	12	2900*1100*2400
SLJ-80	800-1200	80	16D	0-500	75/90	2.2	20	3700*800*2800

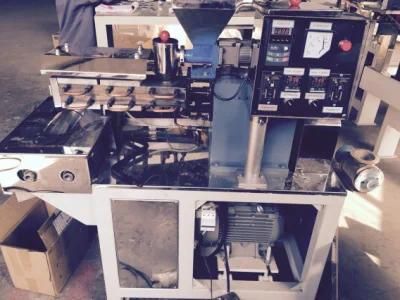

2.3 Lab Type Extruder

Technical Parameters:

Model	Capacity (kg/h)	Screw Diameter (mm)	Screw Length	Screw Speed (r/min)	Main Motor (kw)	Feeder Motor (kw)	Heating Power (kw)	Overall Dimensions (mm)
TSX-20	0.2-10	22	16D	0-600	2.2-4	0.1	2	1600*300*850
SLJ-30	1-30	30	16D	0-500	3-5.5	0.18	3.2	1430*550*1300
SLJ-32	40-80	32	16D	0-500	7.5/11	0.25	3.2	1600*500*1500

3 Cooling Belt

3.1 Water Cooled Cooling Belt with Flakers:

Features:
Consistent quality imported steel belt
Bottom cooling water spraying system, installed heating and cooling device
Equipped with guide device to avoid deforming
Better cooling result, higher efficient productivity
Few maintenance and easy cleaning
Chips thickness and roller speed adjustable
Crusher with finger pin and teeth type
Minimized cross contamination, simple operation

Technical Parameters:

Model	Roller Dia. (mm)	Belt Width (mm)	Belt Length (mm)	Drive Motor (kw)	Capacity (kg/h)	Cooling Mode	Overall Dimensions (mm)
GDY-406	220	600	4000	1.5	200-400	Cooled Water	4000*750*1600
GDY-508	325	800	5000	3	400-500	Cooled Water	5000*900*1800
GDY-510	325	1000	5000	3	500-700	Cooled Water	5000*1100*1900
GDY-610	440	1000	6000	4	600-800	Cooled Water	6000*1100*1900
GDY-612	440	1200	6000	4	700-900	Cooled Water	6000*1400*1900
GDY-712	600	1000	7000	5.5	900-1200	Cooled Water	7000*1400*2000

3.2 Air Cooled Type Caterpillar Cooling Belt with Flaker:

Features:
Stainless steel made caterpillar, air cooling
Flake chips thickness and conveying speed adjustable
Reasonable design for cooling rollers inside, professional surface treatment to avoid water leaking and rust
Installed with simplified air conditioning device
Safe operation, like emergency button, clockwise and counter-clockwise rotation.

Technical Parameters:

Model	Roller Dia. (mm)	Belt Width (mm)	Belt Length (mm)	Drive Motor (kw)	Blower Motor (kw)	Capacity (kg/h)	Cooling Mode	Overall Dimensions (mm)
JFY-204	160/160	400	2000	0.55	200-400	30-100	Chilled Water&Air	2000*450*900
JFY-406	160/220	600	4000	0.75	400-500	100-220	Chilled Water&Air	4000*850*950
JFY-508	180/325	700	5000	0.75	500-700	220-400	Chilled Water&Air	5000*1050*1200
JFY-510	180/325	800	5000	1.1	600-800	400-500	Chilled Water&Air	5000*1150*1200
JFY-610	180/325	800	6000	1.1	700-900	500-700	Chilled Water&Air	6000*1150*1200
JFY-710	180/325	1000	6000	1.5	900-1200	600-900	Chilled Water&Air	7000*1250*1450
JFY-812	180/325	1000	7000	2.2	900-1200	900-1200	Chilled Water&Air	8000*1650*1600

3.3 PU Type Air Cooled Cooling Belt

Features:
Adjustable thickness and roller speed
Air cooled to avoid cross contamination
Roller and crusher equipped with overload protection
High efficiencies
One piece PU belt to facilitate easy cleaning and maintenance
Compact design for limited space

Technical Parameters:

Model	Roll Dia. (mm)	Band Width (mm)	Band Length (mm)	Motor Power (kw)	Throughput (kg/h)	Dimensions (mm)
PFY-104	156	400	1000	1.1	50	1000*870*1050
PFY-206	220	600	2000	1.1	150	2000*1150*1100
PFY-208	445	800	2000	2.2	300	2000*1100*1100
PFY-210	445	1000	2000	2.2	500	2000*1300*1100
PFY-310	622	1000	3000	2.2	800	2000*1300*1200

4 ACM (Air Classifier Mill) Grinding System

Features:

Safety in accordance with EU explosion resistant standard ATEX/PSR11
Low noise design (from mill to fan system)
Particle size distribution adjustable on request
Mill body temperature and air intake volume monitoring
Rotary sieve with unique design and durable for mesh wear issue
Whole grinding system designed for powder dust free
Finished powder products with more than 98 percent
High output, easy operation cleaning and maintenance

Technical Parameters:

Model	Mill Motor kw	Rotor rpm	Classifier Motor	Classifier rpm	Fan kw	Air cbm/h	Capacity kg/h	Overall dimensions mm
ACM-02	2.2	12000	0.37	0-3000	3	350	2-30	1430*550*1300
ACM-05	4	11000	0.75	0-3000	4	800	30-80	2100*1000*2150
ACM-10	7.5	7000	1.5	0-3000	11	2500	100-260	6200*1250*3200
ACM-15	11	7000	1.5	0-3000	15	3000	200-350	6500*1300*3300
ACM-20	15	6600	2.2	0-3000	22	3500	300-400	7500*1300*3600
ACM-30	22	5500	3	0-3000	30	4500	400-550	7900*1500*3600
ACM-40	30	4600	5.5	0-3000	37	5500	600-800	8000*1700*3600
ACM-50	37	4000	7.5	0-3000	45	6500	1000-1200	9000*1900*3900
ACM-60	45	3500	7.5	0-3000	55	8000	1200-1600	9000*2000*4000

5. Company:

Dongsun is a leading manufacturer in China of Powder Coating Production Equipments, i.e. Mixers, Extruders, Cooling Belt and Air Classifier Mill. We inherit 30 years of experiences in this industry and have exported to nearly 30 countries and regions in the past 10 years, and win widely good reputations.

We passed CE certification approval and ATEX explosion resistant test, etc. international standards; we do know how to meet the diversified and customized made requests of our customers.

Our everlasting business philosophy: consistent quality, effective communication, responsible service.


6. Why choosing us?
Our boss has worked in this industry for more than 13 years.
Our vice GM has worked in this industry for more than 20 years.
Our technical manager has worked in this industry for more than 7 years.
Our production manager has worked in this industry for more than 8 years.
We have an excellent team. We are experienced, excellent, friendly and responsible, with a view to long term cooperation.


1.Any inquires will be replied in the first time.

2.High quality products, competitive price, fast lead time.

3.Our sales staff will be have a good communication with you ,let you fully understand the situation of our enterprises and products.

4.We will provide high quality overseas service ,our technical staff will be able to provide you with technical support ,for you personally to overseas assembly and test equipment.

5.Our customer service staff will put your feedback to the technical staff in the first time, timely solve your problem.
