• Model NO.：IBM35D
• Suitable Material：HDPE LDPE PP PS ABS San PETG Pctg TPU

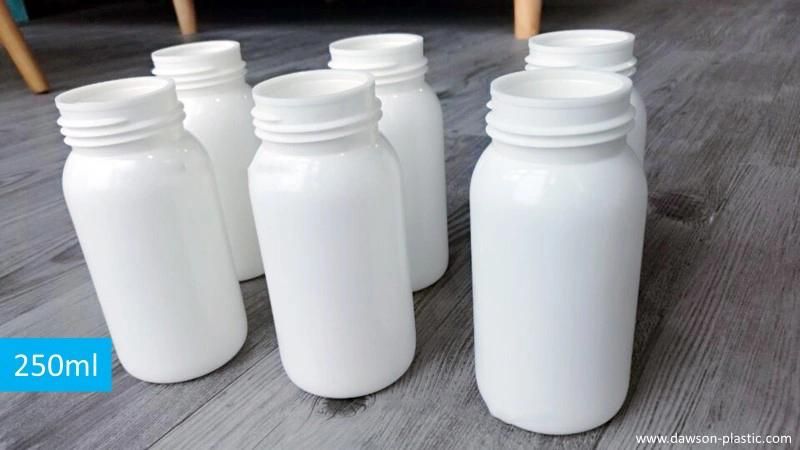

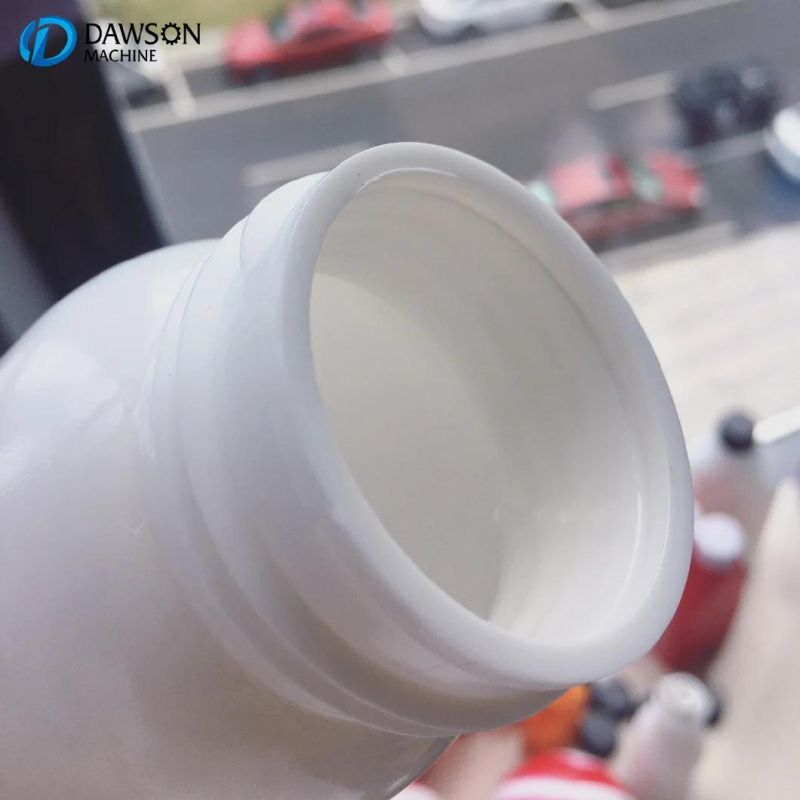

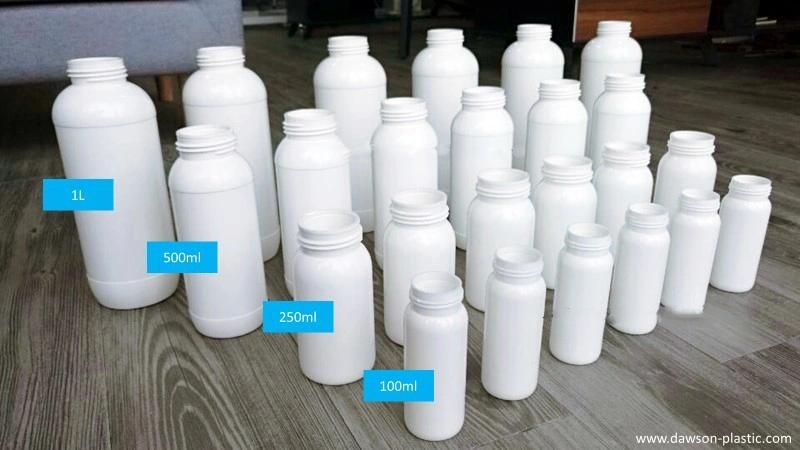

• Application：Eye Dropper, Medicine Bottle, Chemical Bottle
• More Application：Milk & Yogurt Bottle
• Oil Pump and Hydraulic Valve：Yuken
• Pneumatic Valve Connector：Festo
• Oil Seal：Valqua
• Controlling System：Act Technologies
• Electronic Rulers：Italy Gefran
• Molded Case Circuit Breaker, Contactor,：Scheider
• Clamping Force of Injection：350kn
• Clamping Force of Blowing：40kn
• Opening Stroke of Mold Platen：120mm
• Screw Diameter：40mm
• Total Rated Power with Mold Heating：21,25 Kw
• Machine Weight：4ton
• Transport Package：Film Packing
• Specification：IBM65D
• Trademark：DAWSON
• Origin：Jiangsu Zhangjiagang
• HS Code：8477301000
• Production Capacity：as Per Samples

Item UnitDateInjection systemScrew Diametermm40Max. Theoretical injection capacityG176Heating capacityKW7.2No. of heating areaQty3Clamping & blowing systemClamping force of injectionkn350Clamping force of blowingkn40Opening stroke of mold platenmm120Max. Platen size (L×W)mm420×340Min. Mold thickness (H)mm180Heating capacity of mouldKW2.8Product dimension rangeSuitable bottle rangeml3-800Max. bottle heightmm≤180Max. Dia. of bottlemm≤80Dry cycles4Hydraulic driving systemMotor powerKW11/15 hydraulic pressureMpa14Pneumatic systemMin. Air pressureMpa≥0.8Discharge rate of compressed airM3/mm≥0.7Cooling system           Water flowage        M3/h3 Total rated power with mold heatingKW21/25Machine informationDimensionM3.1×1.2×2.2machine weightTon4.0Feature

* Excellent plasticizing unit



  * Bridge clamping unit for synchronism mould open/close, cycle time less



* Servo system can save 35 to 40% energy compared to normal system



  * Servo rotary, precise, long using time, easy maintenance, save energy.



  * Optional injection with all-electric way, replacing hydraulic way * CE certificate

Configuration of Injection Blow Molding Machine


* Oil pump and hydraulic valve (Directional Valves, Power saving valves, Pilot operated check modular valves, and Throttle check modular valves):   YUKEN brand Ex JAPAN.


* Pneumatic valve connector:   FESTO Ex Germany.


* Oil seal:   VALQUA brand Ex JAPAN.


* Controlling system:   Act Technologies


* Electronic Rulers:   Italy GEFRAN


* Molded case circuit breaker, contactor, Thermal overload relay:   SCHEIDER brand Ex FRANCE.
