Tongda Hsll-30L Well Made Automatic Extrusion Plastic Drum Jerry Can Making Machine with ...

Suzhou Tongda Machinery Co., Ltd.
  • Type：Extrusion Blow Molding Machine
  • Raw Material：HDPE
  • Making Method of Parison：Extrusion-Blow Molding
  • Automation：Automatic
  • Computerized：Computerized
  • Certification：CE, ISO9001:2008

Base Info

  • Model NO.：HSll-30L
  • Rotary Cylinder Brand：Festo
  • Station：Double
  • Suitable Bottle：1-30L
  • Key Words：Automatic Extrusion Blow Moulding Machine
  • Packing：Wooden
  • Use：Hollow Moulding
  • Parison Control：Moog
  • Max. Size of Mold：740*650

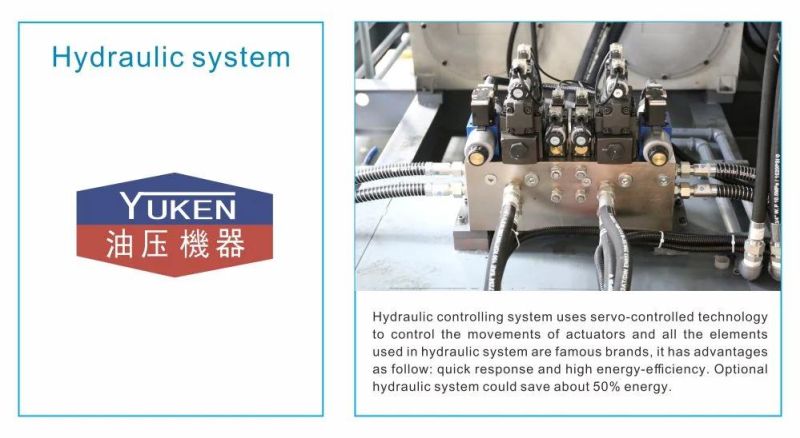

  • Hydraulic Valve：Yuken
  • Color：White
  • Max.Product Volume：30L
  • Dry Cycle：400*2PC,H
  • Output of HDPE：300kg,H
  • Weight of Machine：24000kg
  • Transport Package：Packaged in Wooden Case
  • Specification：6.2*5.5*3.3
  • Trademark：TONGDA
  • Origin：China
  • HS Code：8477300000
  • Production Capacity：600sets,Year

Description

Overview Product Description

Product Details

Tongda Hsll-30L Well Made Automatic Extrusion Plastic Drum Jerry Can Making Machine with Reliable PerformanceTongda Hsll-30L Well Made Automatic Extrusion Plastic Drum Jerry Can Making Machine with Reliable PerformanceTongda Hsll-30L Well Made Automatic Extrusion Plastic Drum Jerry Can Making Machine with Reliable PerformanceTongda Hsll-30L Well Made Automatic Extrusion Plastic Drum Jerry Can Making Machine with Reliable Performance

Product Parameters Model UnitsHSll-30L
SpecificationStationSingle/DoubleDoubleMax.product volumeL30Dry cyclepc/h400*2Output of HDPEkg/h300Weight of machinekg24000Size of machine(L*W*H)m6.2*5.5*3.3Die headMax.die diameter(single head)mm240Die head heating power(single head)kw15Die head heating zone(single head)-4Central distance of(double head)mm-Max.die diameter(double head)mm-Die head heating power(double head)kw-Die head heating zone(double head)--Clamping UnitPlaten distancemm420~920Mold moving strokemm750Clamping forcekn250Extruder UnitScrew diametremm100Screw length/diametre ratio-28Screw heating powerkw26No.of heating zone(screw)-5Power UnitOil pump motor powerkw21+4Screw motor powerkw90Total powerkw156RemarksAir consumptionm³/min1.2Blow pressureMap0.6Cooling water pressureMap0.3Water consumptionL/min100Max size of mold(W*H)mm740*650Company Information


Tongda Hsll-30L Well Made Automatic Extrusion Plastic Drum Jerry Can Making Machine with Reliable Performance
Shipping Packing


Tongda Hsll-30L Well Made Automatic Extrusion Plastic Drum Jerry Can Making Machine with Reliable Performance

Why Choose Us


Tongda Hsll-30L Well Made Automatic Extrusion Plastic Drum Jerry Can Making Machine with Reliable Performance
Service Marketing Network
FAQTONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function

Advantages of TONGDA tech teams
1. 600 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.

Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.

Q: how big is your company?
A: our company has 270 employees and A building area of 53,330 square meters. We own land and factories.The company has a
registered capital of us $2 million and a long-term business license since 1998.

Q: how long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
