• Model NO.：XYP-60,73,100
• Automatic：Automatic
• Cutting Thickness：2-150mm
• Blade Length：8940mm, 10000mm, 10240mm
• Worktable Dia.：6m, 7.3m, 10.5m
• Machine Weight：3300kg, 3500kg, 3800kg
• Transport Package：Wooden Case
• Trademark：XIDENGBAO
• Origin：China(Mainland)
• HS Code：8477800000
• Production Capacity：15 Sets ,Month

Basic Info.

Model NO. XYP-60/73/100 Automatic Automatic Cutting Thickness 2-150mm Blade Length 8940mm, 10000mm, 10240mm Worktable Dia. 6m, 7.3m, 10.5m Machine Weight 3300kg, 3500kg, 3800kg Transport Package Wooden Case Trademark XIDENGBAO Origin China(Mainland) HS Code 8477800000 Production Capacity 15 Sets /Month

Product Description

Circle Panel Sponge cutter machine(XYP-60/73/100)

-imported inverter speed adjusted
-cut continuously
-higher capacity

Product Description:
XYP-60/70/100 Carrousel-splitting Foam Machine adopts the advanced imported controlled techniques drive. This machine is mostly used for much quadrate foam once flatly slicing. Its full-automatic controlled operation and the cutting is accurate. It can be continuously cutout. Its dependability is lofty and production efficiency is better. Meanwhile, our latest research to manufacturing the huge carrousel splitting machine is successful, which the diameter φ10.5m is the biggest in current national. It can be continuously cutting the bigger quadrate foam of W2.15XL14.5m. (This machine can be matched working table with vacuum equipments and touch screen)

Technical Specification:

Model	XYQ-60	XYQ-70	XYQ-100
Cutting foam size	W1.5× L2× H1.2m(4pcs)	W1.5× L2× H1.2m(5pcs)	W1.5× L2× H1.2(8pcs)
Cutting foam size max	W1.5× L2× H1.2m(4pcs)	W2.15× L3× H 1.2(3pcs)	W2.15× L4.5× H1.2(3pcs)
Total power	8.12kw	8.92klw	10.52kw.
Worktable turning speed	0~3.5r/min	3~3.0r/min	0~2.0r/min
Blade length	8940mm	10000m	10240mm
Work table diameter	6m	7m	10.5m
Cutting thickness	2~150mm	2~150mm	2~150mm
Machine weight	3300kg	3500kg	3800kg
Machine external size(LWH)	L6900× W6000× H2400m	L7900× W7000× H2400mm	L11.5× W1100× H2400mm

 After-sales service




Company Exhibition:

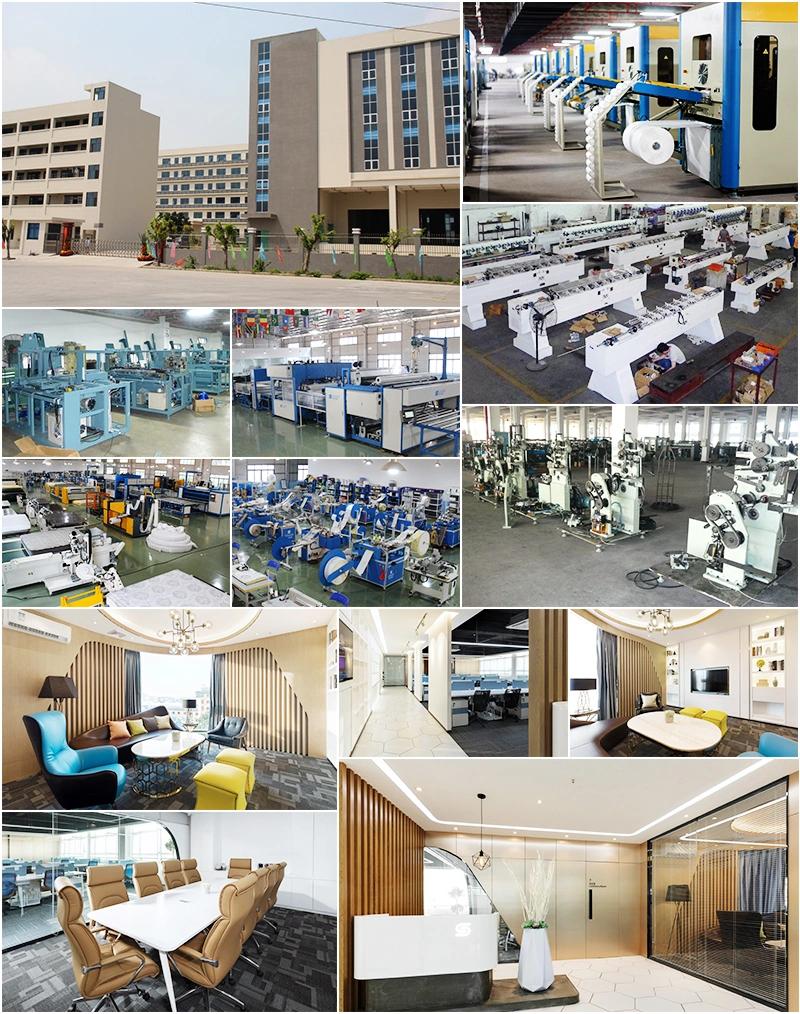

Factory Photos
