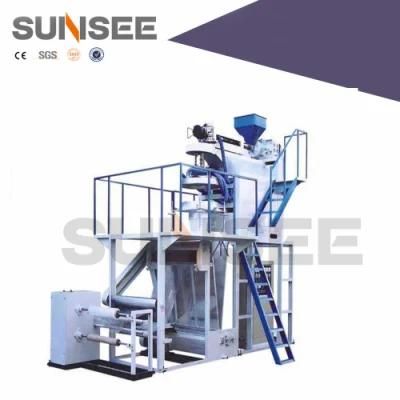

Water Cooling PP Film Blowing Machine with Rotary Die
Ruian Hoin Machinery Co., Ltd.- After-sales Service：Technical Support Online
- Warranty：One Year
- Type：PP Film Blowing Machine
- Raw Material：PP
- Maximum Folding Width of Film：800mm
- Screw Diameter：75mm
Base Info
- Model NO.：FB-G
- Automation：Non-Automatic
- Computerized：Non-Computerized
- Machine Weight：4T
- Certification：CE, ISO9001:2008
- Film Usauge：Bread, Towel, Sock Packing
- Cooling Type：Water Cooling
- Die Head：360 Degree Rotary
- Winder Type：Center Control
- Drying Method：Oven Drying
- Transport Package：Strech Film Wrapping and Wooden Box
- Specification：CE, ISO
- Trademark：HOIN
- Origin：China
- HS Code：8477301000
- Production Capacity：20set,Month
Description
10-100r/minMain motor(kw) 15 18.5 Dia of orifice(mm) Φ250 Φ350 Tota power(kw) 28 36 Weight (T) 3 3.5 Dimension LxWxH(M) 4.8x2x4 5x2.2x4.2
1. Extruder Unit
Die Head Material: Cr40 Mould Steel
Die Head Heating: 2 Zones
Rotary Die Head: Optional
Screw and Barrel Material: 38CrMoALA
Screw and Barrel Heating:3Zones*3Sets
Heating Ring Material: Cast Aluminum
Screen Changer: Manual Type
Gear Box: Hard Tooth Surface Gear Box
2. Take Up Section
'A' Shape Film Forming Plate: Aluminum Plate Type
Film Cooling Method: Water Cooling
Film Bubble Setting Ring: Water Ring
Take Up Motor:Three-Phase Asynchronous Motor with Worm Gear Reducer
Take Up Rollers Grasp: Air Cylinder
3. Winder Unit
Second Take Up Unit: Air Cylinder
Rewinding Station: Double Stations
Rewinding Motor: Torque Motor
Pinch Roller: Air Shaft Roller

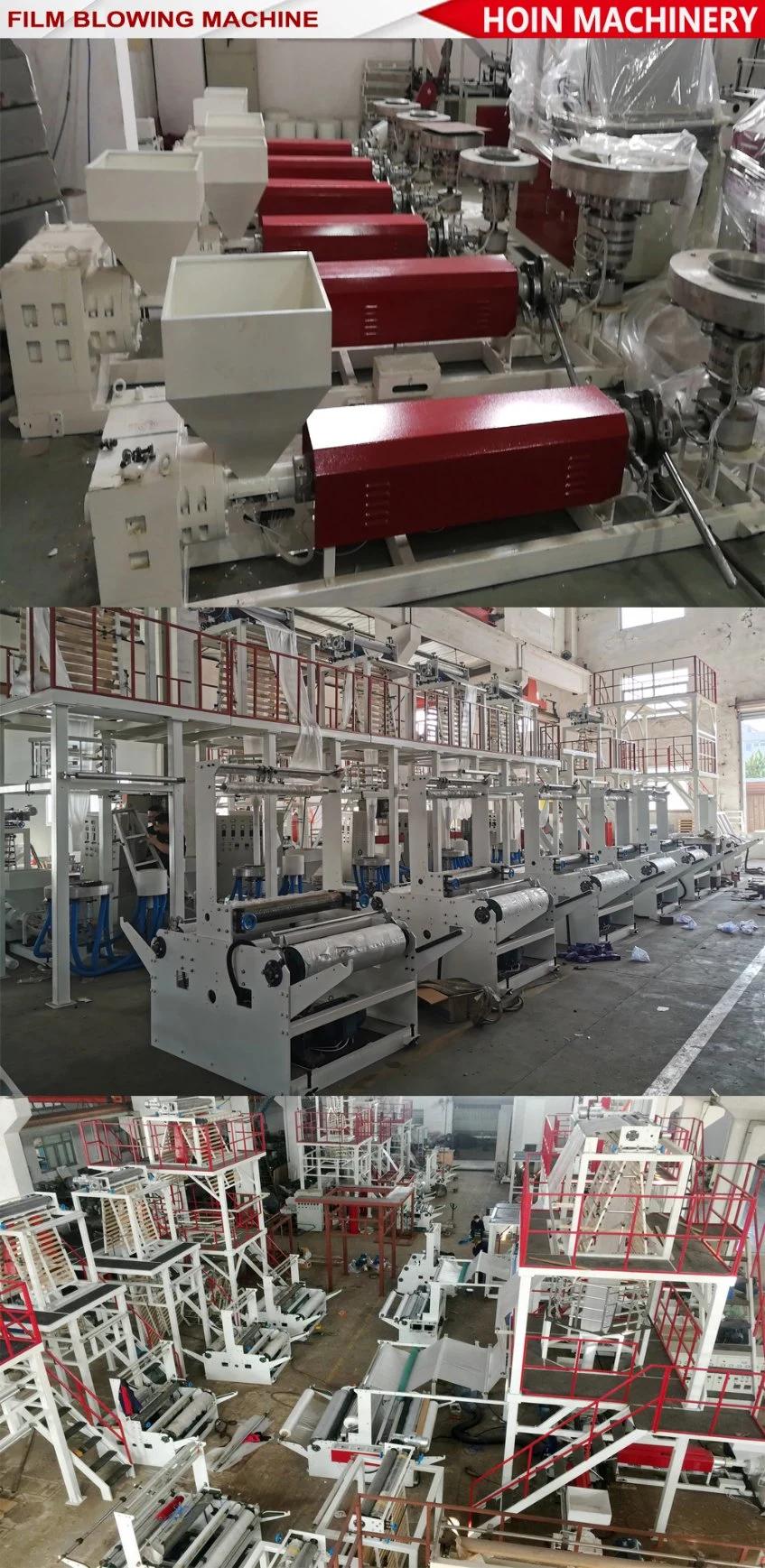

Workshop of HOIN

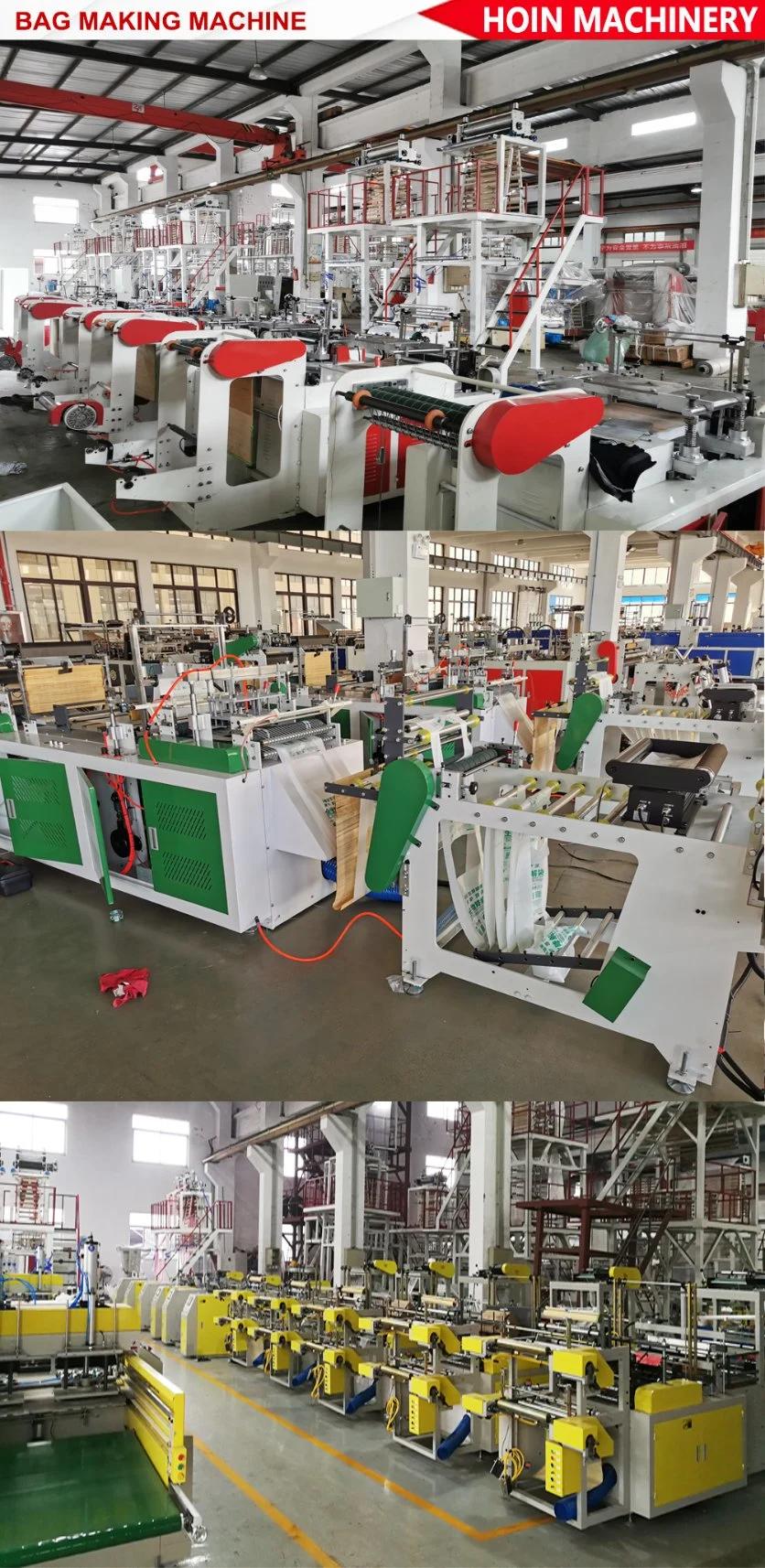

More Products Optional:
After service of HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USD per day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We will still offer you our best after service, and need you to afford our technician's cost.
6. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
