• Profile：Cable Trunking Profile
• Motor：Weg
• SSR Relay：Celduc
• Screw/Barrel：Bimetallic
• Inverter：Schneider
• Contactor：Schneider
• Speed：15m,Min
• Punching Machine：Online Punching

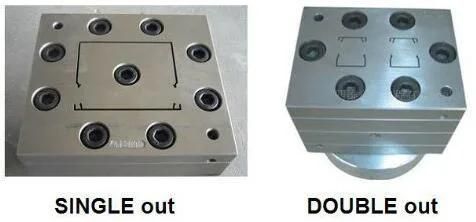

• Mould：Double Cavities
• Haul off：240mm
• Transport Package：Standard Export Packing
• Specification：Customized
• Trademark：Midtech
• Origin：China
• HS Code：84772090
• Production Capacity：10 Sets, One Year

Basic Info.

Profile Cable Trunking Profile Motor Weg SSR Relay Celduc Screw/Barrel Bimetallic Inverter Schneider Contactor Schneider Speed 15m/Min Punching Machine Online Punching Mould Double Cavities Haul off 240mm Transport Package Standard Export Packing Specification Customized Trademark Midtech Origin China HS Code 84772090 Production Capacity 10 Sets/ One Year

Product Description

Wholesale price (10-15m/min) UPVC/PVC wall panel and ceiling board Cable/Duct Trunking Profile Making Extrusion Machine






Normall speed for PVC wall panel and ceiling board is only 4m/min. We provide super speed (10-15m/min) speed for PVC wall panel and ceiling board extrusion machine. And this machine consist MTE 65/138 extruder (450kg/hr), high speed ceiling mould,  vacuum table, haul off, No dust cutter, auto-stacker machine.








PVC Cable Trunking Production Line (Extrusion Machine)
1)high-speed extrusion
2)competitive price
3)PVC trunking production
PVC Cable Trunking Production Line (Extrusion Machine)

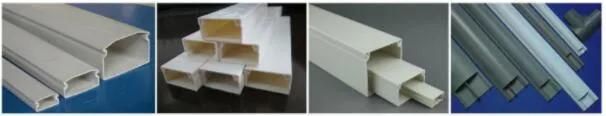

PVC cable trunking profile production line processing:

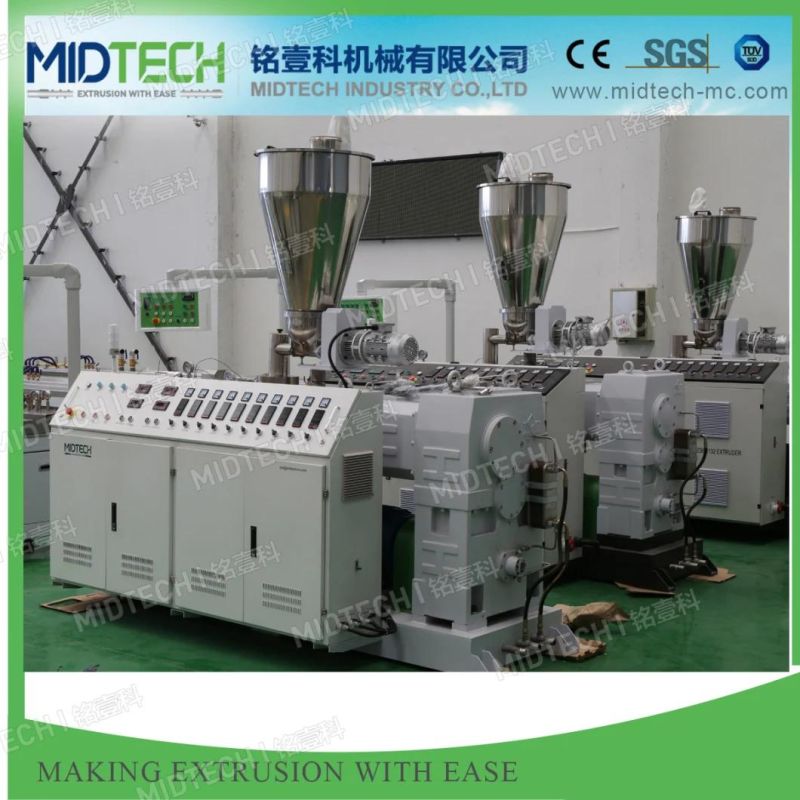

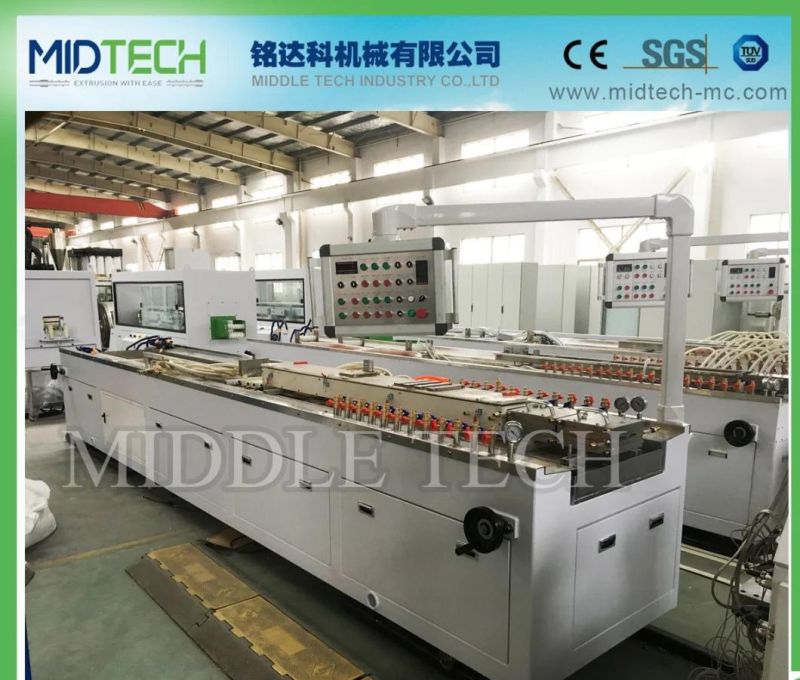

Raw material + additive → mixing → conical twin-screw extruder → profile extrusion mould → cool molding die → vacuum calibration support → belt haul-off → cutter → rack → finished product


Model Product dimension (w×h)mm Extruder  model output(kg/h) Max speed (m/min) Main motor  power(KW) Length of line(m) SJYF-180 180×60 SJSZ51/105 80-100 6 22 23 SJYF-240 240×120 SJSZ65/132 140-180 4 37 27 SJYF-300 300×120 SJSZ80/156 300-400 6 55 30
