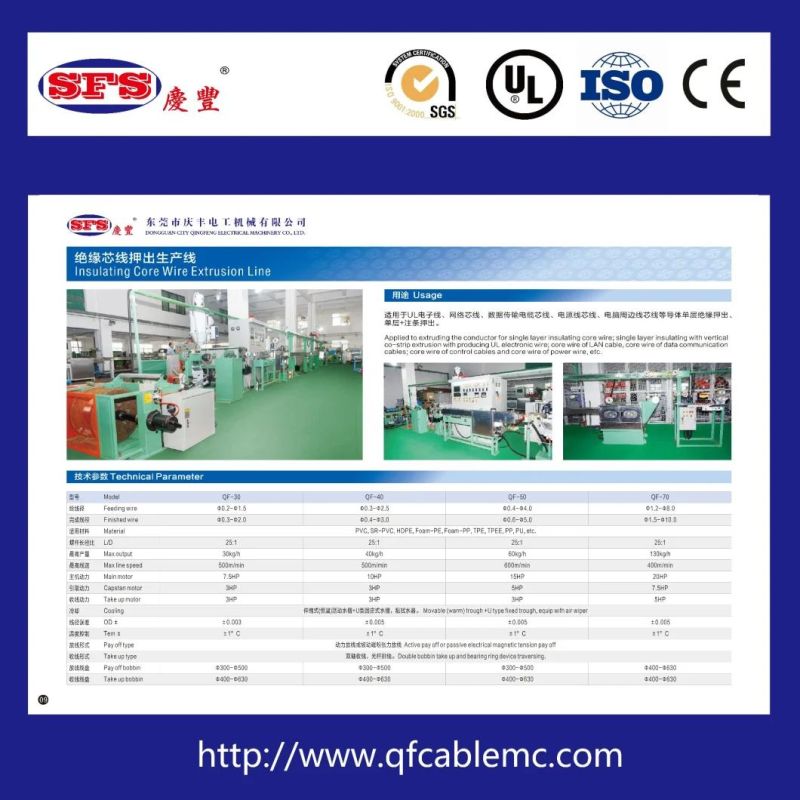

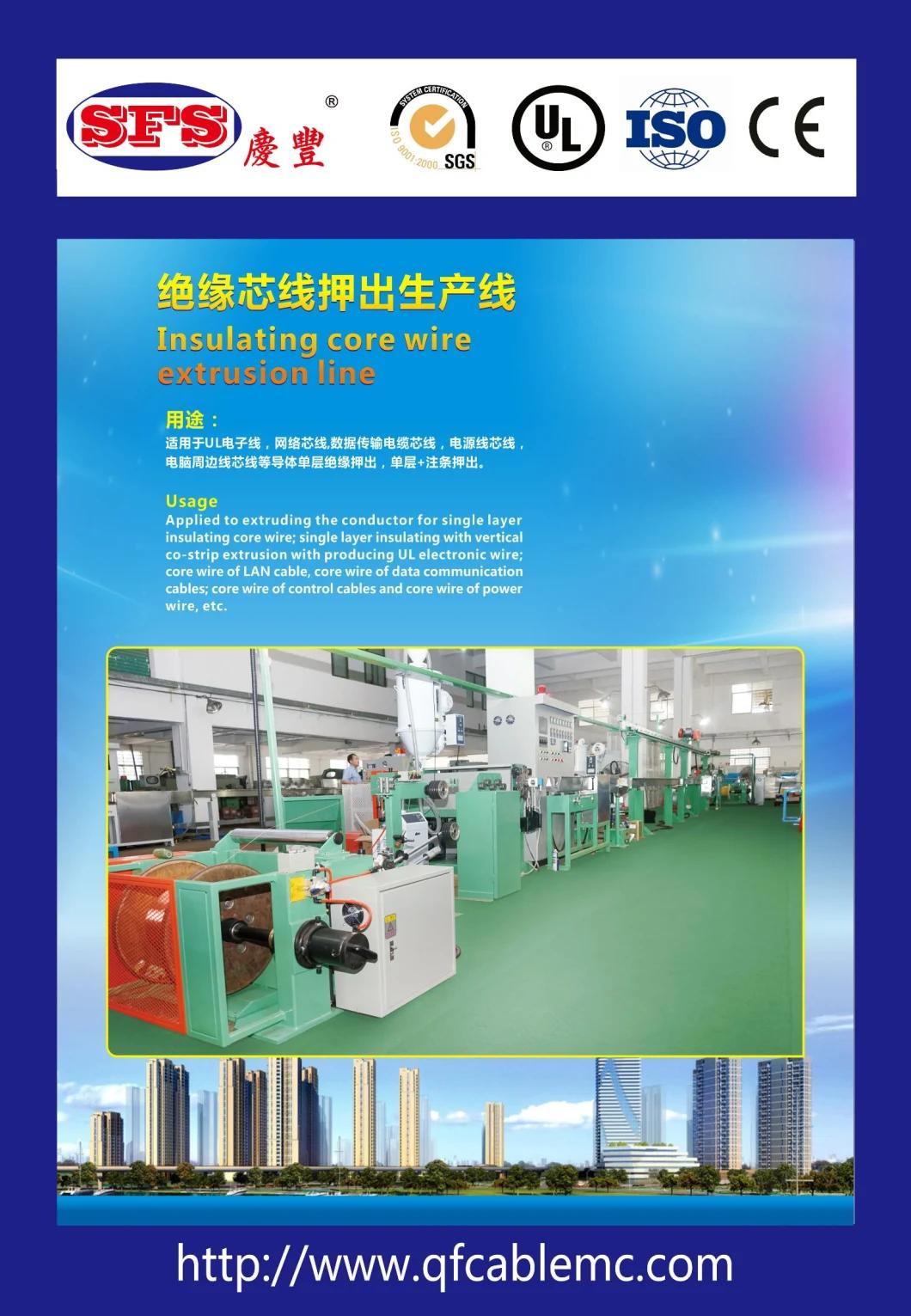

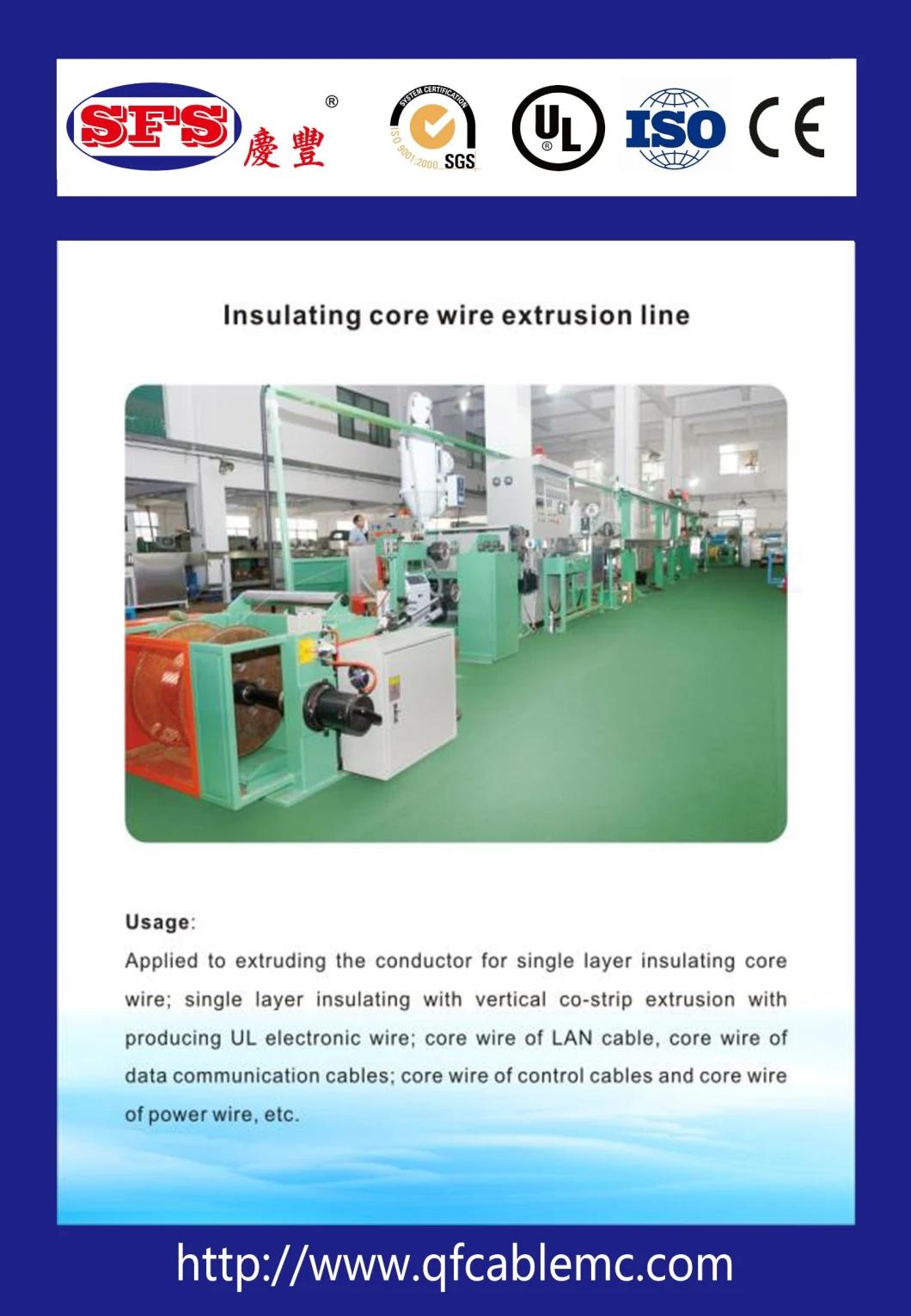

Electronic Wire, Core Wire and Power Wire Insulation Extrusion production line (QF-70)

Application
     Suitable for single-layer, double color, double layer and three-layer extrusion together of wire and cable using insulated materials such as PVC, PE, LSHF, NYLON, PU, PP and so on.

Structure
It is made up of pay-off stand, tension device, main extruder, main controlling cabinet, cooling tank, capstan, sparkling machine. You can select printer, diameter-testing laser gauge, PLC, caterpillar and non-axis type o f pay-off and take-up.

Technological parameters
        Model  : QF-70
1.    Screw diameter  : Φ70mm.
2.    Screw  L/D  : 25:1.
3.    Screw speed (Max)  : 90rpm.
4.    Extrusion output (Max.)  : 120kg/hr.
5.    Extrusion outlet diameter  : Φ1.5mm - Φ12mm.
6.    Line speed (Max.)  : 400m/min.
7.    Pay-off type  : Gantry type motor driver
8.    Pay-off bobbin diameter  : Φ500mm.
9.    Main motor  : 55kw.
10.  Auto-feeding (Max.)  : 75kg.
11.  OD control  : ±0.01mm.
12.  Temperture control  : ±1°C.
13.  Cooling water trough  : "U" type sigle layer trough.
14.  Capstan power  : 5.5kw.
15.  Accumulate length (Max.)  : 250m.
16.  Take-up bobbin diameter  : Φ400mm - Φ630mm

Machine feature
Used widely :
Used to conductor single layer/single-layer + striping insulation extrusion.

High output :
Optimizing screw design, screw durable, non cohesive gel, non take-off a chrome, color                     change quickly, high wire speed, high output.

High quality :
 1.  Extrusion concentricity : over 93%; Outlet diameter : +/- 0.005mm.
 2. The production line was equipped with detecting system, auto-control feedback system, precise diameter and capacitance detecting feedback unit, entirely process control wire or cable insulation diameter and eccentricity parameter to insure the technological requirements.

Temperature control precise :
adopted SCR power control machine with imported high quality temperature control table, the machine temperature controlled with +/- 1ºC.

Easy control :
1.  Intelligent control, wire diameter auto-feedback and adjustment, hommization machine design, combined with industrial computer and touch sceen. Making machine operation more easier and convenient.
2.   Using PLC controller, professional data control software, industrial computer control and storage display. It can modify technological parameters adjustable and monitor state of extrusion line.

Save place :
Combined traditional accumulate, capstan, take-up and meter counter and so on. Layout is compact.
