• Model NO.：(SJSZ80,156)
• Customized：Customized
• Condition：New
• Power Supply：380V Three Phase
• Control System：PLC Control System
• Inverter：ABB
• Operator：2-3person ,Shift
• Warranty：12monthes
• Transport Package：Exporting Packing
• Specification：CE ISO9001
• Trademark：SUKE
• Origin：Qingdao China
• HS Code：847780000
• Production Capacity：200 PCS,Year

Basic Info.

Model NO. (SJSZ80/156) Customized Customized Condition New Power Supply 380V Three Phase Control System PLC Control System Inverter ABB Operator 2-3person /Shift Warranty 12monthes Transport Package Exporting Packing Specification CE ISO9001 Trademark SUKE Origin Qingdao China HS Code 847780000 Production Capacity 200 PCS/Year

Product Description

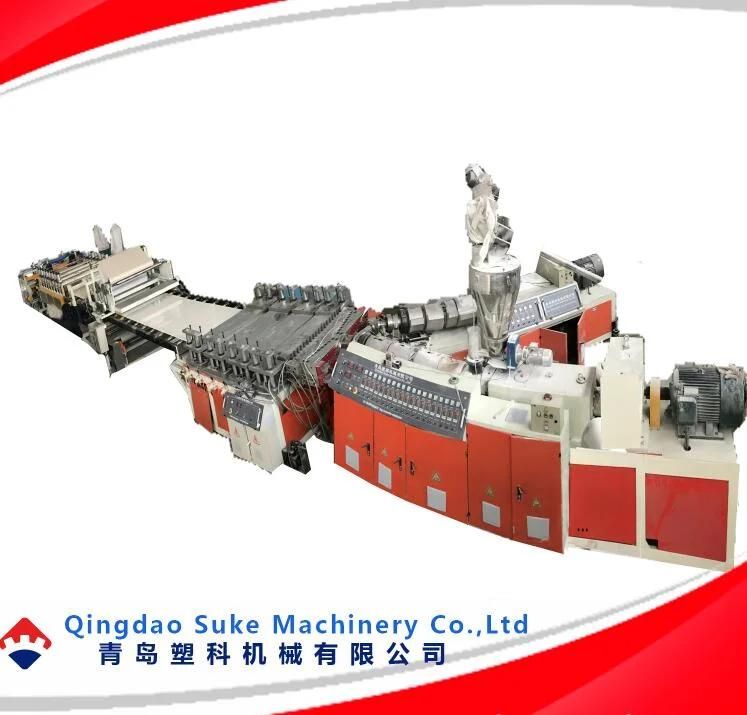

Plastic WPC Foam Board Extrusion Making Machine


Specifications
1, Building WPC Board Machine
2, Thickness: 3-30mm
3, Width: 1220mm
4, CE, ISO9001

Main Technique Parameter
1, Conical double screw extruder SJSZ-80/156

A) Output: 300-400kg/h
B) Transmission system:
High torque output vertical reducer gear box
Structure: Vertical
Provided with outside-circulation cooling system
Imported thrust bearing and high-torque output
Material of Gear: 20CrMnTi, with gear grinding technical treatment and cementite

2. Mold
A) Structure: Special design for PVC WPC board
B) Width of die: 1400mm
C)Thickness: 12-20mm
D) Material: 5CrNiMo, high quality alloy

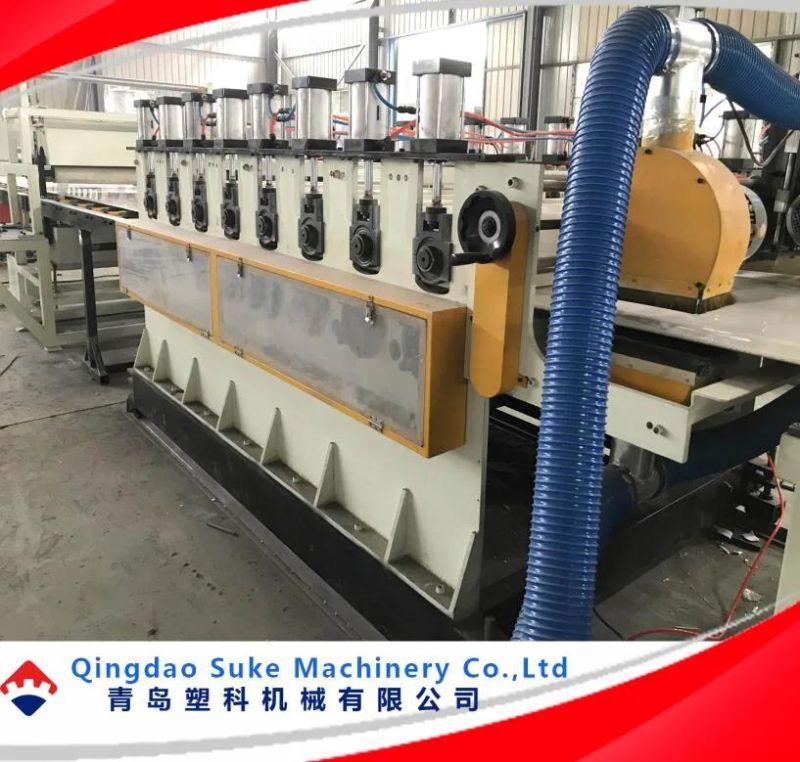

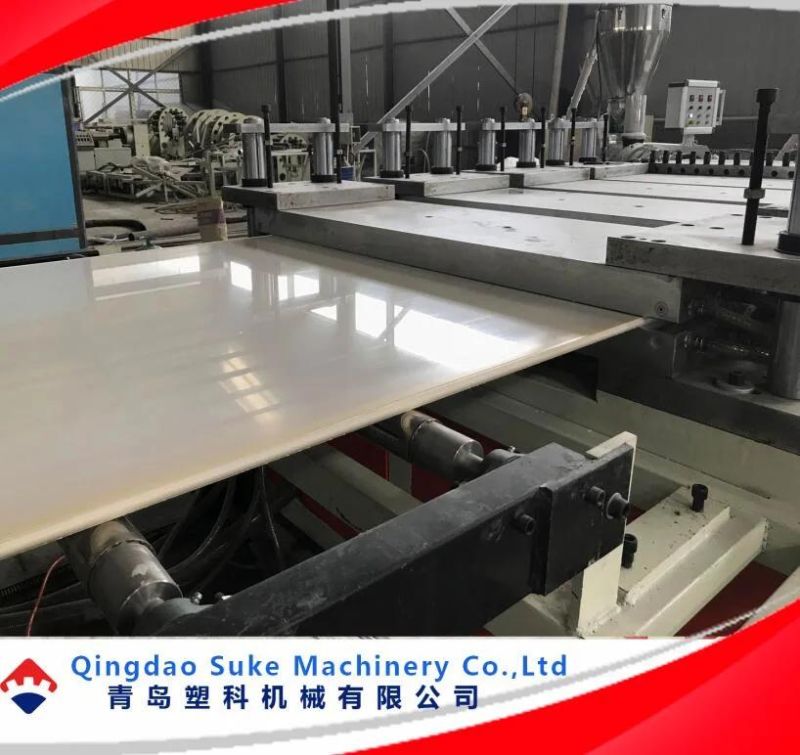

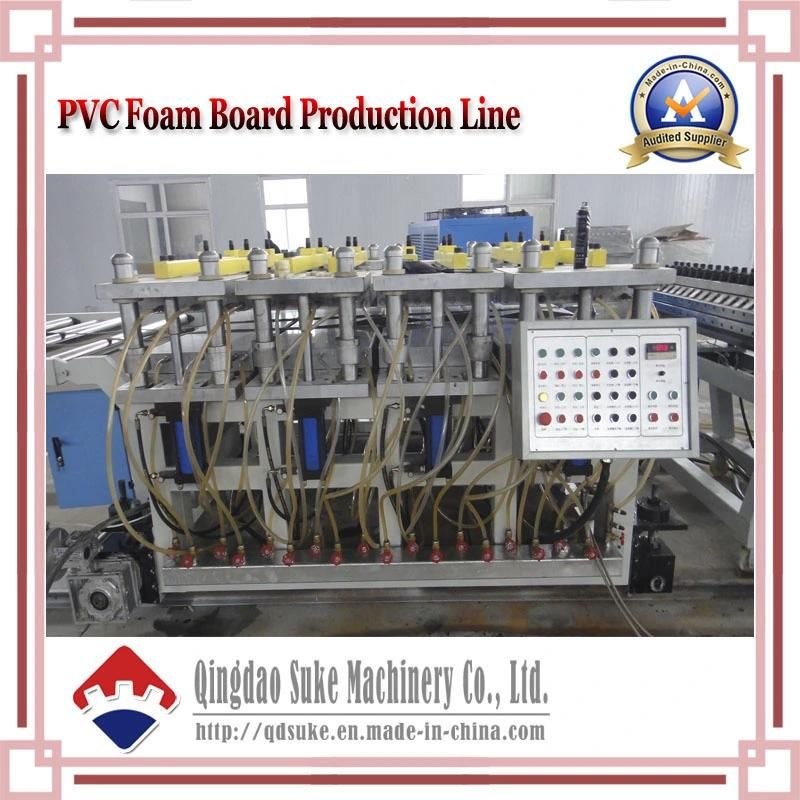

3, Vacuum calibrating and forming table
Max. Calibrating width: 1450mm
Calibrating table length: 2000mm
Vacuum pump power: 5.5kw*2 units
Max. Exhausting volume: 80m3/min
Water pump power: 4kw

4, Cooling bracket
A) Total length of roller bracket 5000mm
B) Cooling Roller
Diameter: Ø 63mm
Length: 1320mm

5, Haul-off unit
Max. Pulling width: 1450mm
Max pulling thickness: 20mm
Pair roller qty: 7 pairs
Driven motor power: 5.5kw

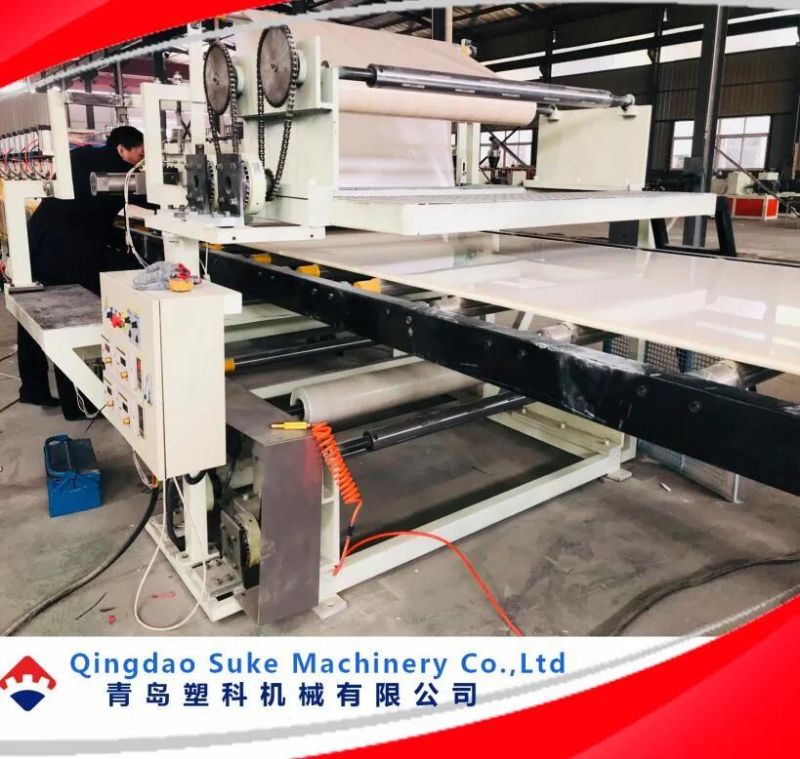

6, Transverse cutting bracket

Rack type synchronize pressing unit
Special design flat cutting motor: 2.2kW
With non-pole cylinder left and right moving system

Components	Amount
1,Conical double screw extruder SJSZ-80/156	1 set
2,Extruder Mould	1 set
3,Vacuum calibrating and forming table	1 set
4,ZS-1450 Cooling bracket	1 set
5,Haul-off unit	1 set
6, Transverse cutting bracket	1 set
7, Dropper for the finished product	1 set
8, Control system	1 set
