Lightweight Foam Concrete Agent Foam Mixing Machine for Making Concrete Blocks

ZHENGZHOU LYA MACHINERY CO., LTD.
  • Type:Polyurethane Foam Machine
  • Raw Material:Mixing
  • Principle:High-Pressure Air Type
  • Automation:Automatic
  • Computerized:Computerized
  • Certification:CE, ISO9001:2008, QS

Base Info

  • Model NO.:LYA-F30
  • Delivery Date:15-20 Days After Received Your Deposit
  • Power:22kw
  • Warranty:1year
  • Capacity:4.7m3
  • Voltage:380V-440V
  • Transport Package:Wooden Case
  • Specification:1550*650*1300mm
  • Trademark:LYA
  • Origin:Zhengzou, China
  • HS Code:8477409000
  • Production Capacity:30m3,H

Description

Basic Info.

Model NO. LYA-F30 Delivery Date 15-20 Days After Received Your Deposit Power 22kw Warranty 1year Capacity 4.7m3 Voltage 380V-440V Transport Package Wooden Case Specification 1550*650*1300mm Trademark LYA Origin Zhengzou, China HS Code 8477409000 Production Capacity 30m3/H

Product Description

Product DescriptionLightweight Foam Concrete Agent Foam Mixing Machine for Making Concrete Blocks

1. Product introduction:

For year's equipment production experiences in cast-in-place foam concrete,through every technical engineer's research,then we develop this large foam concrete filling equipment,the capacity of this machine is reach to 10~60 meters/Hour.It is filled the gaps in small capacity and inefficiency of foam concrete equipment in China.It became the largest and most maximum in single capacity of foam concrete production equipment in China.

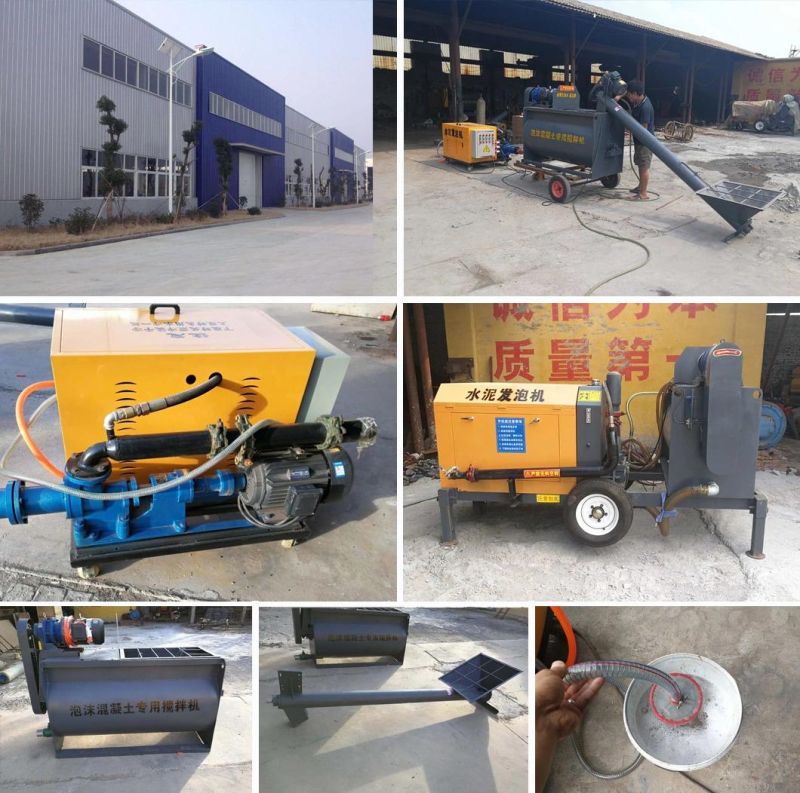

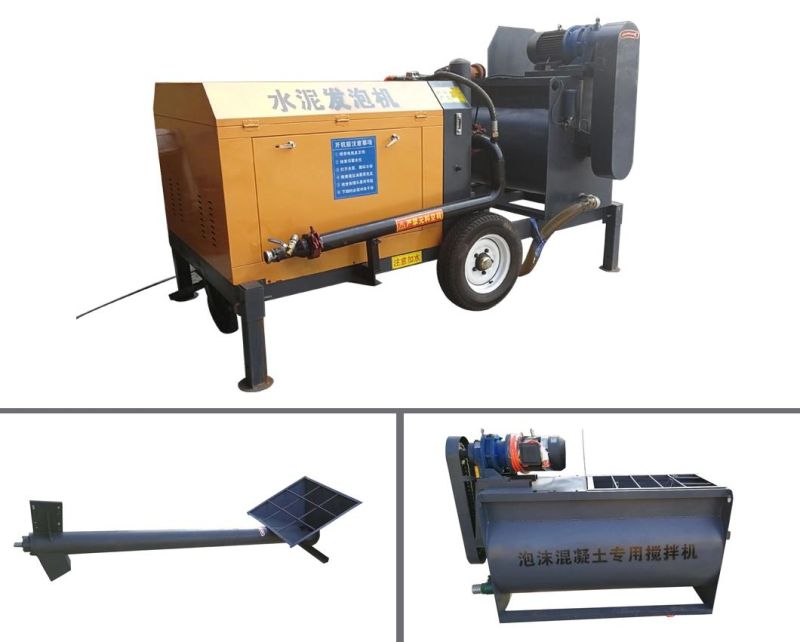

It is composed of main engine and mixer and feeding machine.It will be free distribution pipeline, maintenance tools and accessories, etc.

2.Features of  foam cement machine for building construction material
1.The machine adopts high pressure foaming technology with good foaming performance, even high quality, unbreakable, accurate(foaming amount can be precisely controlled within mg)
2.Delivery system adopts the most advanced pumping system of hose pump, with simple operation,low foult rate,less wearable parts, convenient maintenance and low cost
3.The machine shell is made of high strength and precious steel plate,which is painted at high temperature of 280ºC and has long service life.
4.The machine saves production costs and improves economical returns. Compared with similar products, the machine can save 50-100kg cement per cubic meter product.
5.The machine is the ideal equipment of foaming cement, with light weight,small size,convenient, high efficiency.

3.Technical parameters
Items(mold)LYA-F30
Pump power22Kw
Vertical distance100m
Horizontal distance800m
Capacity30m³/h
Outlet pressure10Mpa
Output pressure1.5Mpa
Dimensions(L x W x H)2500*1050*1800mm
Total weight1300kg

4.Formulation of Foamed Concrete (for reference)

Building block(kg/m³)Cement(kg)Filling aggregates(kg)Water(kg)Foaming agent(kg)
400±01602401770.8-0.9
500±02003002210.7-0.8
600±02403602650.6-0.7
700±502804203100.5-0.6
800±503204803540.45-0.5
5.Applicable scope

1.Cement foaming machine is my company on the basis of draw lessons from foreign advanced equipment, aiming at the existed defects and insufficiency in the domestic similar equipment, innovative design, meticulous research and development of a new generation of large hydraulic cement foaming machine, this equipment adopts intelligent control, hydraulic system, quantitative feeding system, mixing system, automatic foam system, and the digital control system is an organic whole, to produce foamed cement fine bubbles, uniform, density can be adjusted according to need continuous, its technical performance and stability are well received by ustomers.

2.Used for roof insulation, especially the roof top of the thermal insulation layer construction. That is suitable for the
north, also suitable for the south with summer heat preservation and heat insulation in winter.

3.Used for insulation wall, sound barriers, light weight thermal-insulating blocks.

4.Used for the freezer, the heat preservation of cold wind, tap water pipe, pool, and caliduct pipe and so on, all kinds
of pipe heat preservation.

5.Used for the tunnel, mining internal gap filling.
Company Information
we are Zhengzhou LYA machinery company, from China, and we are the supplier and manufacturer ,specialize in Foam Concrete Equipment
many years .We have rich experience and high service quality including pre-sale,in-sale and after-sale service.

Our main products are Foam Concrete Equipment ,concrete block production line and plastic interlock block mold etc. In the past 6 years, our products have already distributed to USA, UK, UAE, Qatar, Oman, Saudi Arabia, Philippines, Thailand, Ethiopia, Kenya, Somalia, Congo, Ghana, Gabon, Brazil and France.

Best price with high quality.Lightweight Foam Concrete Agent Foam Mixing Machine for Making Concrete Blocks



Certifications
Lightweight Foam Concrete Agent Foam Mixing Machine for Making Concrete Blocks

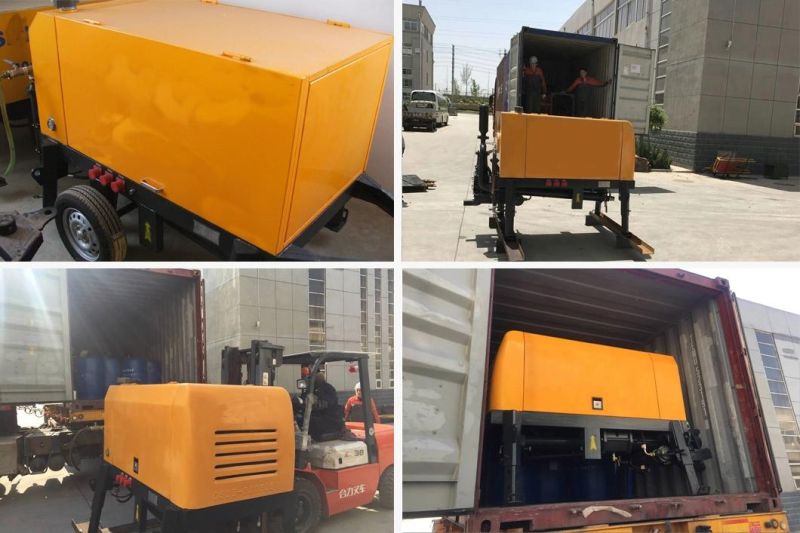

Packaging&Shipping:

Packaging:The international packing standard of wooden case packing or as customers' needs.

Shipping:20 working days after the confirmation of the order.Lightweight Foam Concrete Agent Foam Mixing Machine for Making Concrete Blocks

Related Product:Lightweight Foam Concrete Agent Foam Mixing Machine for Making Concrete Blocks
Our services:

Before sales services:

1. Answer consultation from users according to users' demands, help user chose suitable type.

2. Offer design drawing and solution accroding to users' demands.

During sales services:

1. Produce and ship the goods for customer safe and timely;

2. If need, arrange engineer to train works how to operate the machine rightly.

3. Highly inspecting equipments in every working procedure, quality comes first;

After sales services:

1. Give a clear reply upon customers questions within 24 hours;

2. If necessary, we send engineer to user's site to solve the problem timely;

3. Reture visti at regular intervals;

4. Establishing user's record;

5. One year guarantee and whole life services and techinal support;

6. Supply latest industrial informaion.


FAQ:

 1.You are the trading company or manufacture company ?

 we are the 10 years' manufacture experiences manufacture company in China.



2.what is your machine advantage than other foam concrete machines?



A.Our machine can make the foaming , mix , pump together.

B. Our machine can automatically adjust the density.

C. Our foam  concrete machine can easy to control and operate .

3.what is the density your machine can arrive ?

From 300-800kg/m³ , if your have any other requirements , we can try  to satisfy  you .

4. how to guarantee the machine  work well before shipping ?

We have our professional testing department ,we will have twice testing  when we finish our machine and before shipping.

5. Warranty period ?

The warranty will be one year from the date of shipment. Any detected parts during this period caused by the quality of products will be replaced by seller free of cost (exclude wear and tie parts), improper operation and other manmade reasons are excluded.
