Full-Automatic Sample 3D Filament and 3D Pen Filament Winding Machine
Zhangjiagang Plastar Machinery Co., Ltd.- Type:Profile Extruder
- Plastic Processed:Pcl
- Product Type:Extrusion Molding Machine
- Feeding Mode:One Feed
- Assembly Structure:Integral Type Extruder
- Screw:Single-Screw
Base Info
- Model NO.:PL
- Engagement System:Non-Intermeshing
- Screw Channel Structure:Non Deep Screw
- Exhaust:Don′t Exhaust
- Automation:Automatic
- Computerized:Computerized
- Suitable Material:All 1.75mm 3D Printer Filament
- Main Motor:Servo Motor and Stepping Motor
- Atmospheric Press:0.5-0.6MPa
- Power:300W
- Name:3D Drawing Printing Pen Filament Winding Machine
- Transport Package:Wood Package
- Specification:it depends
- Trademark:Plastar
- Origin:China
- HS Code:8477800000
- Production Capacity:100sets,Year
Description

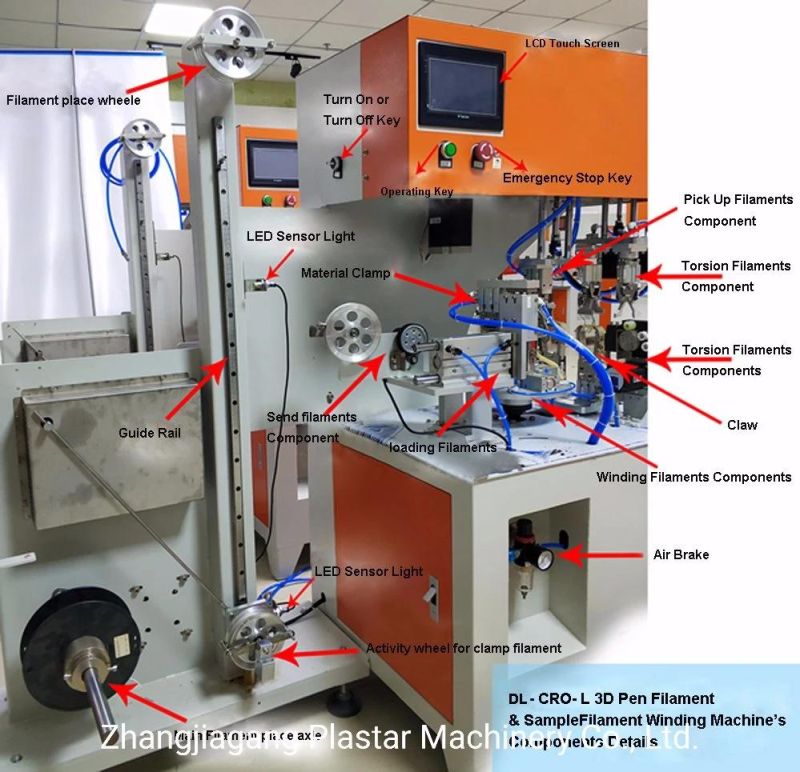

Detailed Images
Product Name: | Automate 3D Sample Filament Winder |
Model Number: | YASIN-CRO-L |
The Finished Filment Appearance: | Circle with two tie |
Produce Speed: | 600pieces / h |
Finished Filament Circle Diameter: | 80mm |
Build Volume for Filament: | 10-50grams |
Finished Tie Filament Diameter: | 45mm |
Sutable Tie for Packaging: | Nylon cable tie |
Filament Front Part Stays Long: | ≤50mm |
The End of Long for The Filament: | ≥50mm |
Main Motor: | Servo motor and Stepping motor |
Voltage Request: | 210-240V /5A |
Power Request : | 300W |
Aerostatic Press Machine: | Normal Aerostatic Press Machine |
Atmospheric Pressure request | 0.4-0.6Mpa |
Machine Size : | 155*70*160cm |
Net Weight : | 150KGS |
Gross Weight : | 200KGS |
