0.25-2L Pet Bottle Blow Molding Machine

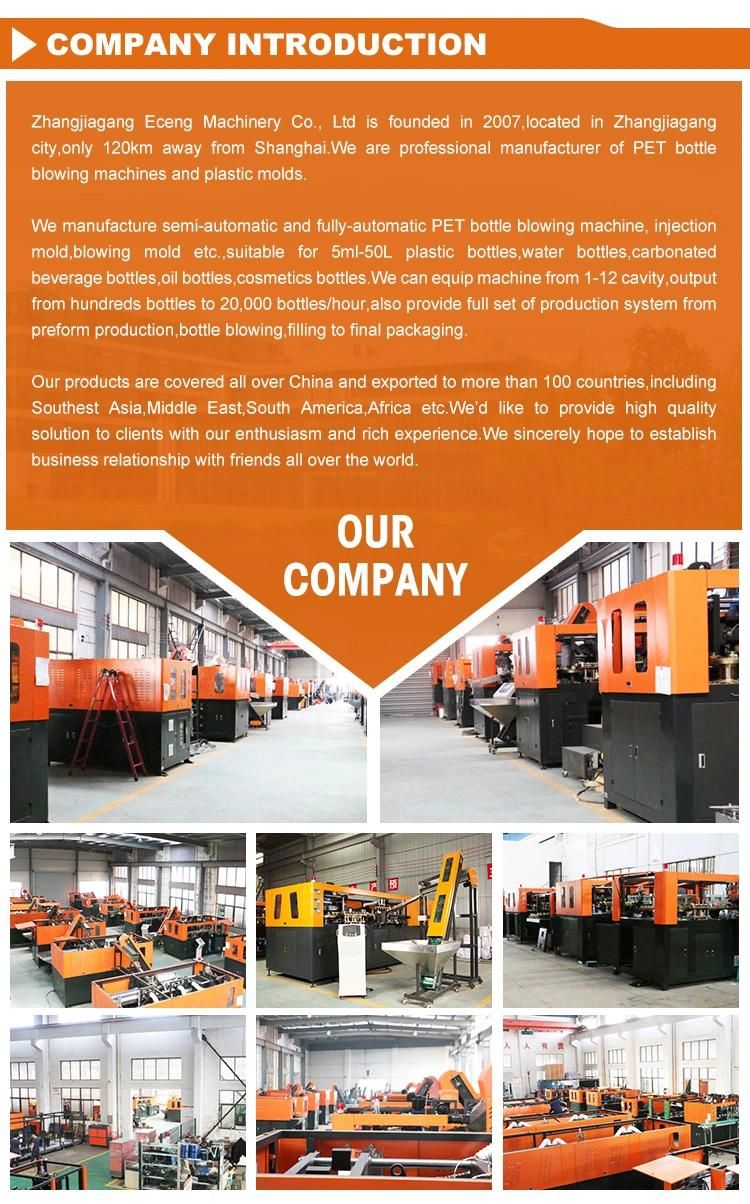

Zhangjiagang Eceng Machinery Co., Ltd.
  • Type：Stretch Blow Molding Machine
  • Raw Material：PET

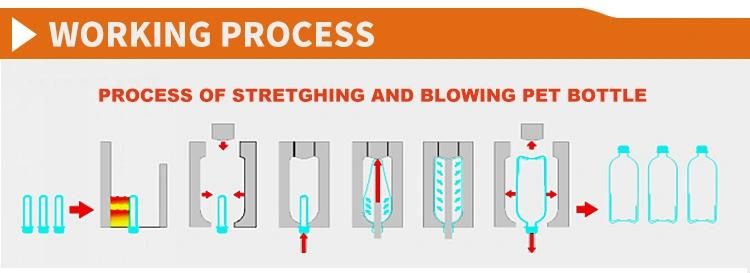

  • Making Method of Parison：Stretch Blow
  • Automation：Automatic
  • Computerized：Computerized
  • Certification：CE

Base Info

  • Model NO.：Q6000
  • Cavity：4
  • Heating Method：Infrared Tube Heat

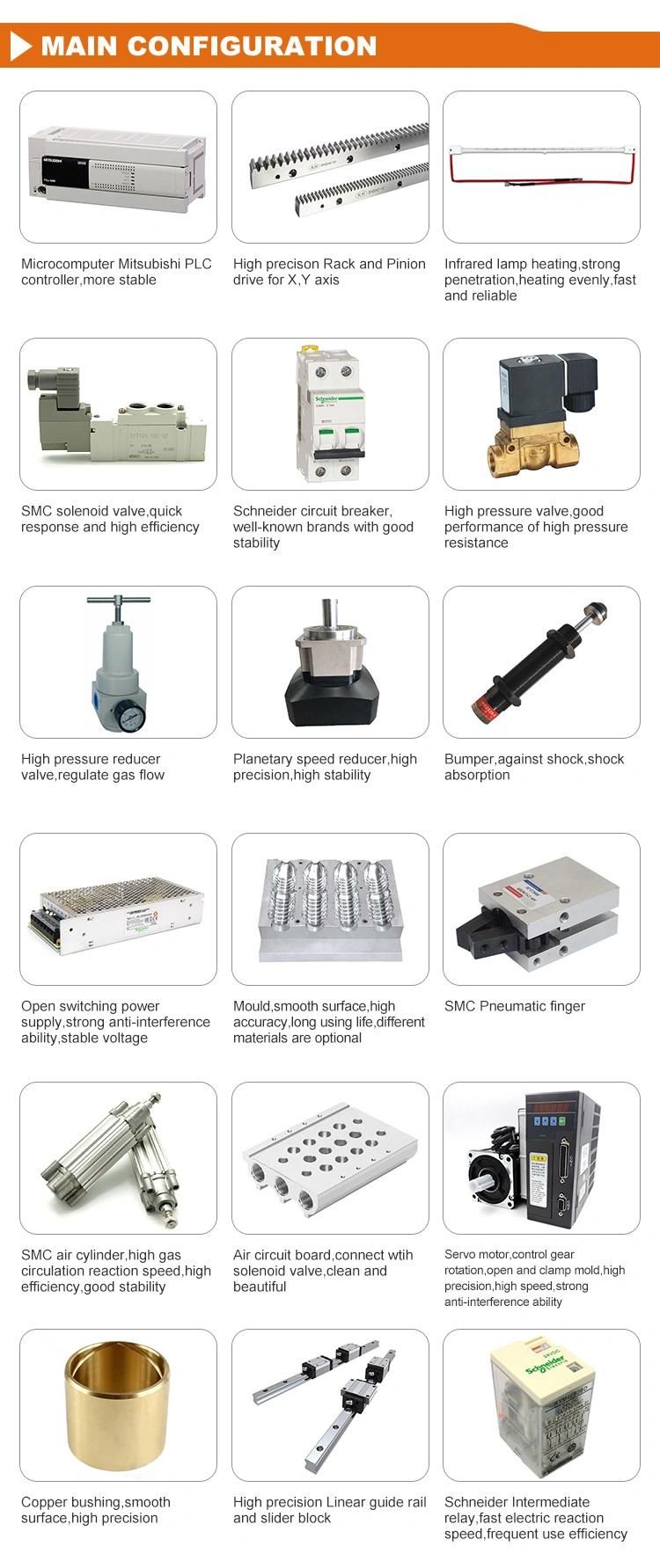

  • PLC Controller：Mitsubishi
  • Full Computer Screen：Winwiew506L
  • Pneumatic Components：Parker and Festo
  • Bottle Material：Pet
  • Transport Package：Wooen Pallet
  • Specification：CE
  • Trademark：ECENG
  • Origin：Zhangjiagang, China
  • HS Code：847730
  • Production Capacity：6000 Bottles Per Hour

Description

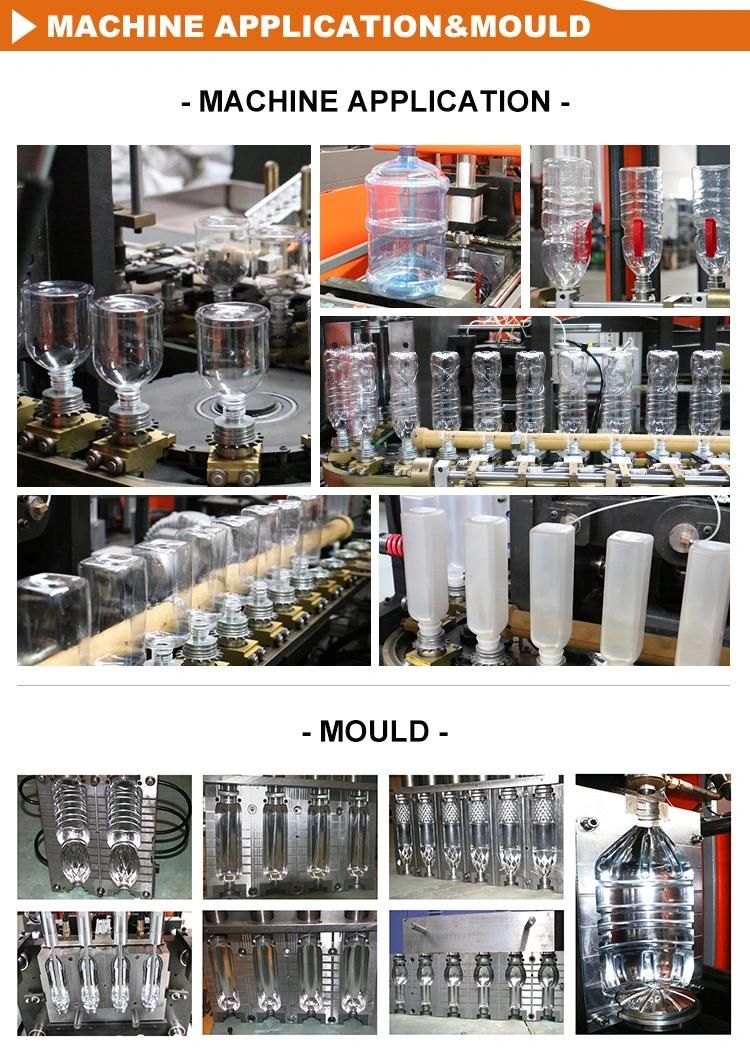

Bottle type specification



 cavity4output(PCS/HR)6000Max. volume (L)2LBottle mouth maximum overall diameter (mm)28-38mmBottle biggest diameter100mmBottle maximum height330mm
Power specifications

 Light tube quantity32pcsLight tube power1.25kwMaximum heating power40kwAll electric machine installation43kwActual consumption21.5kw
Air pressure specification

 Work pressure7-9kg/cm2Low-pressure gas consumption1600Ltr/minBlow bottle pressure25-35kg/cm2Higher -pressure gas consumption3000 Ltr/min
Frozen water specification

 Work pressure5-6 kg/cm2Temperature range10Consumption8000kcal/hrFrozen water flow88Ltr/minMachine specification
 Size of the machine4.5x1.6x1.9 (m)Weight of the machine3.5ton
0.25-2L Pet Bottle Blow Molding Machine
0.25-2L Pet Bottle Blow Molding Machine
0.25-2L Pet Bottle Blow Molding Machine
0.25-2L Pet Bottle Blow Molding Machine
0.25-2L Pet Bottle Blow Molding Machine
0.25-2L Pet Bottle Blow Molding Machine
SALESMANAGER:ZOE XU
