Plastic Machinery

Ce Certification Polyurethane Foam Injection/Spray Machine for Wall Insulation

Shandong Hightop Group
  • Type:Spray Polyurethane Foam Machine
  • Raw Material:Poly, Mdi
  • Principle:High Pressure Pneumatic Driven
  • Automation:Automatic
  • Computerized:Computerized
  • Certification:CE, SGS

Base Info

  • Model NO.:CNMC600
  • Voltage:3-Phase 4 Wires 380V
  • Air Source:0.5~0.8 MPa, 0.6m 3 ,Min
  • Raw Output:9 Kg,Min
  • Rotation Speed:500,Min
  • Ab Material Output Ration:1:1
  • Driven Mode:Pneumatic
  • Key:Ce Certification Polyurethane Foam Injection,Spray
  • Transport Package:Wooden Case
  • Specification:150kg, 650x500x810 mm
  • Trademark:CNMC
  • Origin:Shandong, China
  • HS Code:8477800000
  • Production Capacity:100set,Month

Description

Technical ParametersModelCNMC600Power source3-phase 4-wires 380V 50HzHeating powe1.5KWDriven modePneumaticAir source0.5~0.8 MPa ≥0.6m 3 /minMax Raw output9 kg/minSpray gun1 SetHeating hose8 metersMetering pump modelHJ9-100Entrance diameter1/2inchExit diameter1/2inchRotation speed500/minMachine dimension750x500x800 mmMachine weight150KGContact information: TEL 008615898612525

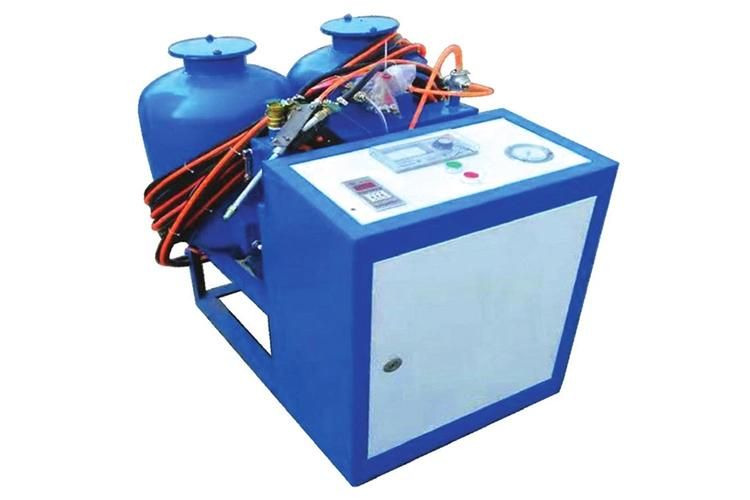

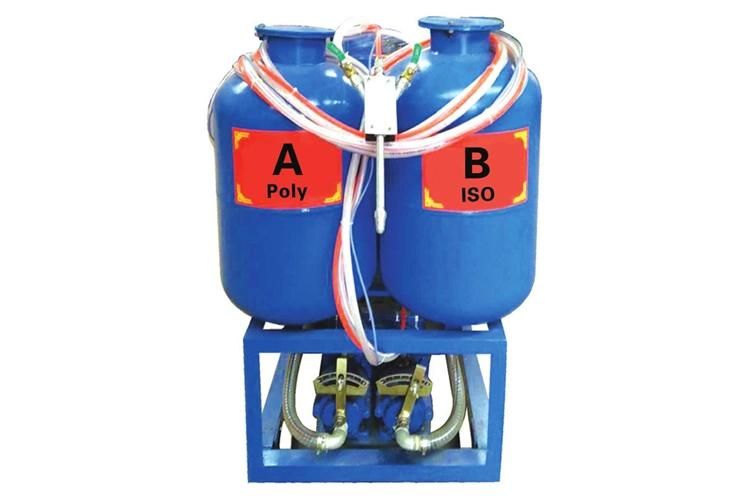

High pressure polyurethane and polyurea spray foam machine





Ce Certification Polyurethane Foam Injection/Spray Machine for Wall Insulation
Ce Certification Polyurethane Foam Injection/Spray Machine for Wall Insulation
Ce Certification Polyurethane Foam Injection/Spray Machine for Wall InsulationCe Certification Polyurethane Foam Injection/Spray Machine for Wall Insulation

Ce Certification Polyurethane Foam Injection/Spray Machine for Wall Insulation

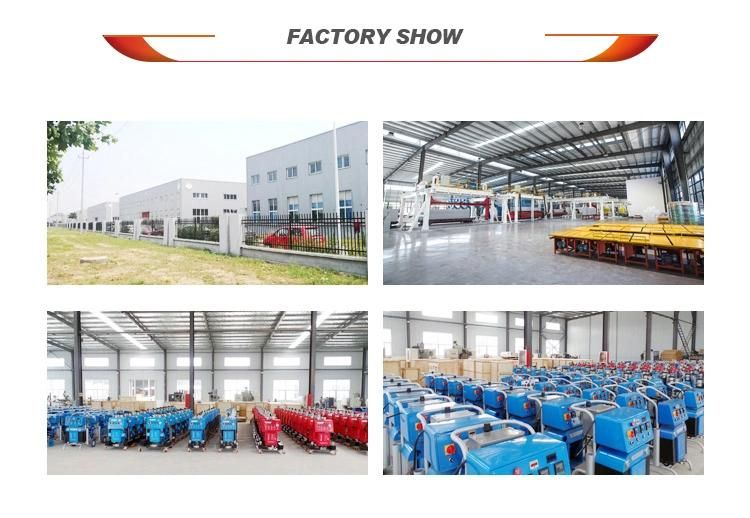

SHANDONG HIGHTOP MACHINERY Co., Ltd, established in 1980, is an important and a large construction engineering equipment joint-stock enterprise group. It has several wholly-owned subsidiaries, company headquarters is located at National High Tech Zone, Jining City, Shandong province.

Group's manufacturing area is compromised of 5000 square meters where 2000 people are employed full-timely. Its service scope covers critical economic fields such as construction engineering equipment, mining machinery, rock drilling equipment, steel etc.

CNMC Group got ISO9001 international quality system certification, European Union CE certification,SGS certification and Russian GOST certification. Scientific innovation is CNMC motive power. At 2000 year Our company and China Science and Technology University together established a steel products Rally testing laboratories, strive to enhance the product's impact resistance, in 2002 year the company and Shanghai Institute of Chemical Research jointly established experimental research center for the Chemical Material. Through exchanges and learn, CNMC mechanical, products in the stability of performance has been greatly improved.

More than 30 years of hard work and struggle, CNMC products have been exported to more than 127countries, and win good reputation from our customers, because we always pursue "CNMC FOCUS ONQUALITY" and explored a sustainable development path which combining the economic benefits and environmental protection together, and this make a great contribution to the development of Chinese machinery manufacturing industry and prosperity.

Ce Certification Polyurethane Foam Injection/Spray Machine for Wall Insulation

Ce Certification Polyurethane Foam Injection/Spray Machine for Wall Insulation
