• Model NO.：SJ
• Machine Weight：8T
• Certification：CE, ISO9001:2008
• L/D：30:1
• Thickness of Film：0.008-0.1mm
• Max. Extrusion Output：550kg,H
• Main Motor Power：45kw-55kw
• Transport Package：as Requirement
• Specification：CE. SGS
• Trademark：YunBang
• Origin：China
• HS Code：8477309000
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. SJ Machine Weight 8T Certification CE, ISO9001:2008 L/D 30:1 Thickness of Film 0.008-0.1mm Max. Extrusion Output 550kg/H Main Motor Power 45kw-55kw Transport Package as Requirement Specification CE. SGS Trademark YunBang Origin China HS Code 8477309000 Production Capacity 20 Sets/Month

Product Description

plastic blown film machine for hdpe ldpe bags

Characteristic
The High speed film blowing machine's extruder, cylinder and screw are made of superior alloy steel that have been nitrified and precision machining. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is sound of quality in plasticizing, which helps increase the production capacity.

Uses
The High speed film blowing machine is applied to blowing the plastic films like low density polygene (LDPE), high density polygene (HDPE) and linear low density polygene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest bags etc.

Performance:
1.Resin:  HDPE/LDPE/LLDPE.
2.Designed for T-Shirt bag and flat bag production

Specification:

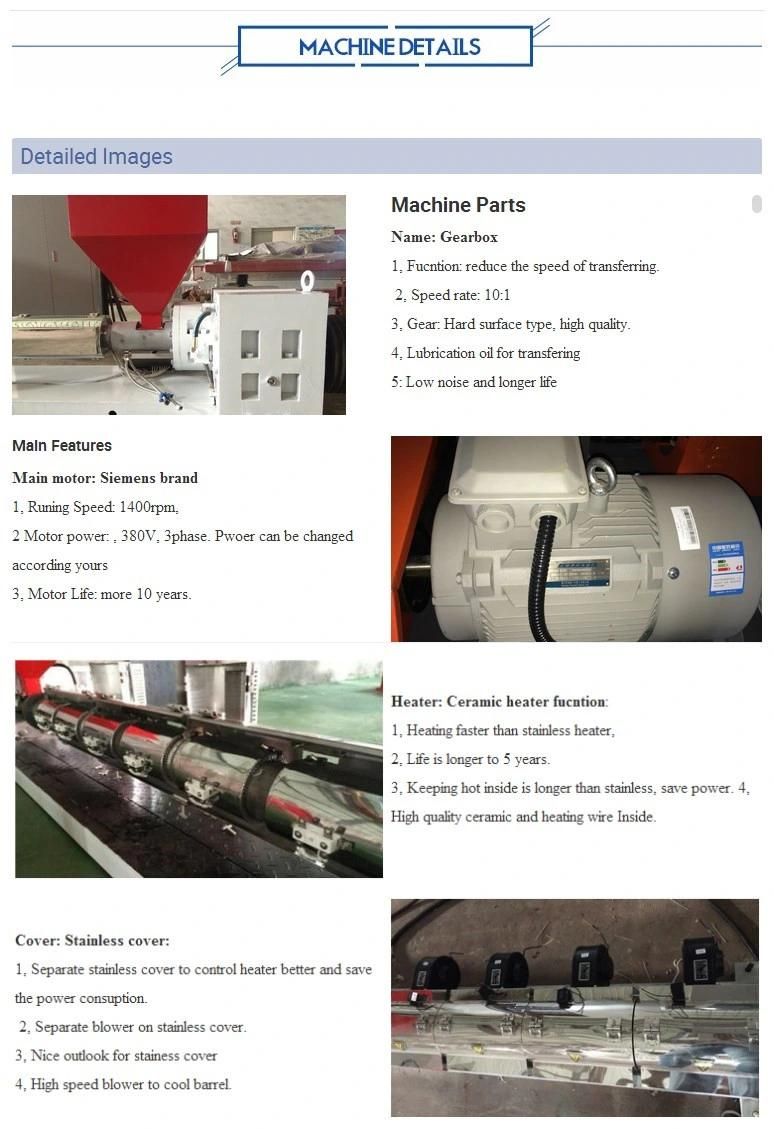

A.Extruder
1. screw --- SJ-645/superior 38CrMOALA alloy steel nitrified and precision machining.:
Structure: Undulance with mixing head screw (Spraying with alloys)
Normalizing-modulator-remove stress-Nitriding
Nitriding hardness HV890, Nitriding thickness: 0.4-0.7mm
2. barrel---uperior 38CrMOALA/45#  inner interval channel, plating hard Cr
with stainless steel heater
3.Gear reducer--- Hard-strength head tooth surface gearbox
4.Drive Motor -----AC motor with inverter
5.Temp control

B. Die
1.Type: Spiral
2. with stainless steel heater

C.Cooling Unit
1.Air blower---With distributor
2.Air ring---Cast Al

D.Take-off Unit
1.Pinch roller----hard-chromium-plated,steel roller and rubber roller
2.Nip pressure system---pneumatic(adjustable)
3.Motor---AC motor with inverter
4.A-form wooden
5.Embossing roller&gusseting unit
6.Bubble cage

E. Winding Unit
1.Type---Surface frication
2.Motor-Torque motor
3.Alarm

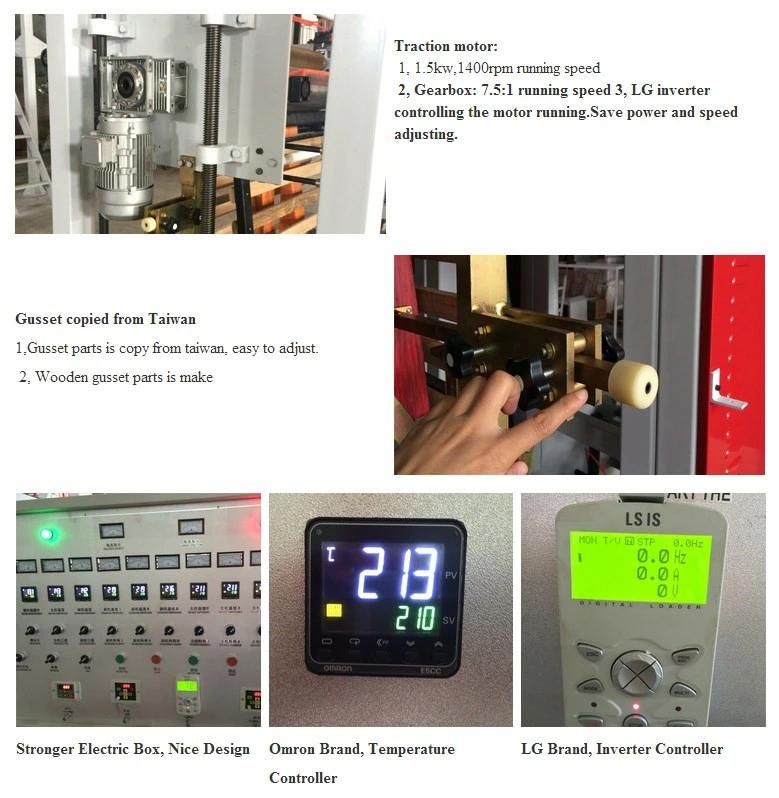

F.Control panel
1.Temp controller
2.Mounted meters
A.Input indicating lamp
B.Temp controller
Scale----0°- 399°
Thermocouple
C.Magnetic contactor
D.Ammeter for heater circuit
E.Circuit breaker
F.Speed control meter---for extruder drive&take-off motor

Optional: 1)Auto Loader 2)Embossing Roller 3)Film Surface Treater 4)Die Rotary Device 5)Air Compressor 6)Mechanics Screen Changer.



Model	SJ-50B/FM600	SJ-55B/FM800	SJ-60B/FM1000
Screw Diameter	50mm	55mm	60mm
Screw Ratio	L/D30:1	L/D30:1	L/D30:1
Screw Speed	10-120r/min	10-120r/min	10-120r/min
Power of Main Motor	18.5kw	22kw	30kw
Max. Extrusion output	30-60kg/h	40-80kg/h	50-100kg/h
Max. Folding Width of Film	600mm	800mm	1000mm
Single-sided Thickness of Film	0.008-0.10mm	0.008-0.10mm	0.008-0.10mm
Sub-master Machine Lift Scope	800mm	1000mm	1200mm
Total Power	28kw	36kw	42kw
Weight of Machine	2600kg	3000kg	3500kg
Overall Dimensions(L×W×H)	4600×2600×4000mm	4800×2800×4300mm	5000×3000×4800mm

Model	SJ-75B/FM1500	SJ-90B/FM2000	SJ-120B/FM2300
screw diameter	75	90	120
screw ratio L/D	28: 1	28: 1	28: 1
screw speed	15-100r/min	15-100r/min	15-100r/min
main motor power	30-37kw	37kw-45kw	45kw-55kw
extrusion output(single)	120kg/h	145kg/h	200kg/h
range of die	150, 350	500	550
single-side thickness of film	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm
max. folding width of film	1500mm	2000mm	2300mm
electrictotal capacity	58kw	80kw	105kw
overall dimension	5200*3500*6000	6800*4000*8500	7000*4800*9000
weight of machine	4.0T	8.5T	8.5T
