• Condition：New
• After-sales Service：Online or Video Technical Support
• Material of Screw：38crmoala Nitriding Treatment
• The Inverter：ABB Brand for PVC Pipe Machine with Price
• Gear Box：Guo Mao Brand(China)
• Material of Vacuum Forming Tank：Stainless Steel 304 for PVC Pipe Machine with Pri
• Temperature Control Meter：Rkc or Omron Brand
• Cooling for Barrel：Air Flow Cooling for PVC Pipe Machine with Price
• Height of The Screw Axes：1000mm for PVC Pipe Machine with Price
• Element of Electric：Seimens Brand
• Pressure Class：According to Customer′s Need
• The Related Machines：Mixer, Crusher, Air Compressor, Chiller, Printer
• Transport Package：Standard Seaworthy Packing
• Specification：16mm-800mm series PVC pipe
• Trademark：Sevenstars Machinery
• Origin：Zhangjiagang
• HS Code：84772090
• Production Capacity：80kg,H-800kg,H

ItemSJSZ-45SJSZ-51SJSZ-55SJSZ-65SJSZ-80SJSZ-92Diameter of screw(mm)45/9051/10555/11365/13280/15692/188Number of screw(mm)222222Direction of screwsScrew rotation direction/////Screw rotation speed(rpm)1-451-45401-351-371-33Effective length of screw(mm)98510701200144018002500Power of Main engine(kw)1518.522/30375590Barrel heating power(kw)121818243686.8Production capacity(kg/h)12080-150150-180250-300320-400600-800Center height(mm)100010001000100010001200Net weight(kg)280032003500400050008000Dimensions(mm)(L*W*H*)3300*1200*21003600*1100*21003600*1100*21004235*1520*24504750*1550*24606725*1550*2841

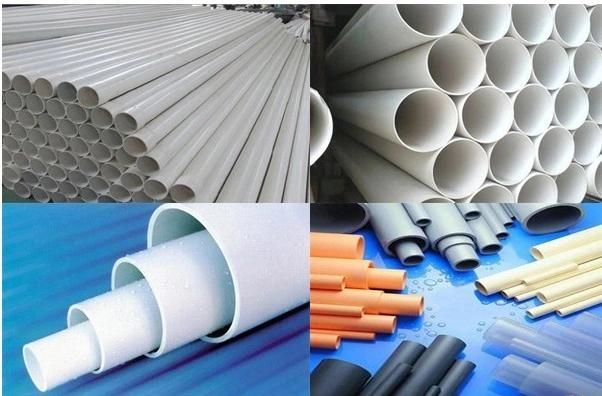

Finished Products

Product Uses



Company information

           Zhangjiagang Sevenstars Machinery Co.,Ltd. was founded in 2006. it is an enterprise specialized in producing plastic machinery.it lies to the south of the middle and lower reches of Yangtze River.It is located in the National civilization and hygienic city-zhangjiagang , Surrounded by the economic belt of Suzhou,Wuxi,Changzhou,Nanjing and Shanghai.Both land and river transports are rather convenient.We sell our products to Europe middle,Africa and Asia,etc country and region.Our products enjoy a high reputation home and abroad.



Our service

1.Upon request Supplier will dispatch engineers to install the machines and do commissioning together with customer's workers.

2.Meanwhile, engineers will teach how to operation, maintain for buyer's engineers, worker on site.

3.We also offer long term technical guidance.

FAQ

1.How about the quality about this machine?

Answer: yes,my friend,please rest assured,we have nearly 10 years experience for this machine.quality is no problem.



2.How about the output about this machine?is the data real?

Answer: my friend,we have tested that machine many times,then get this data,it is real and can meet your need.



3.Wether you deliver in time?

Answer: sure,once we receive your payment, then delivery immediately.



4.What about your after service?

Answer: we can send our engineers to you factory and offer long term technical guidance.

Contact Info

Contact: Sunny
