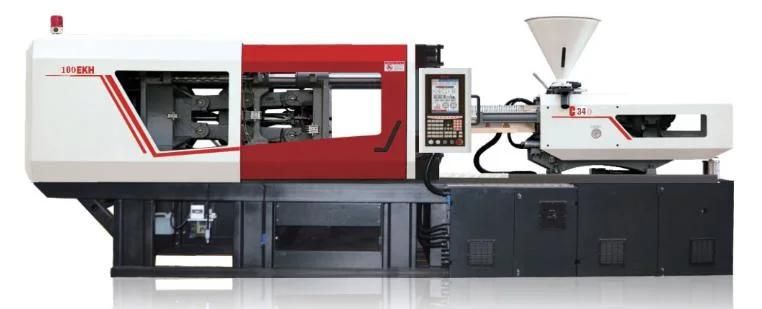

Plastic Injector/Plastic Injection Machine
Taizhou Yuehao Commerce Co., Ltd.- Type：Preform Injection
- Structure：Horizontal
- Plastic Type：Thermoplastic
- Plasticizing Way：Screw Type
- Clamping Way：Hydraulic
- Automation：Automatic
Base Info
- Model NO.：BY100YKH
- Computerized：Computerized
- Certification：CE, ISO9001:2008
- Transport Package：Wooden Case
- Specification：4.2*1.3*2.1(m)
- Trademark：YH
- Origin：China
- HS Code：8477101090
- Production Capacity：100sets,Year
Description
Shot weight (PS)g 133 168 208 oz 4.7 6 7.3 Max injection rate into Air Cm3/s 81 102 126 Max injection rate into Air G/s 73 93 115 Injection pressure Mpa 239 189 153 Theoretical plasticizing speed G/s(PS) 10 14 18 Injection stroke mm 180 Max injection speed mm/s 100 Max screw speed R/min 221 System pressure Mpa 17.5 Pump motor KW 8.9 Heater power KW 6.8 Number of temp control zones 3+1 Clamping force KN 1000 Opening stroke mm 360 Space between tie bar Mm*mm 405*355 Min mould height(T shape) mm 160(125) Max mould height(T shape) mm 430(395) Max distance platen mm 790(755) Ejector stroke mm 120 Ejector force forward KN 34 Ejector force back KN 22 Number of Ejector bar PC 5 Hopper capacity kg 25 Oil tank capacity L 150 Machine dimension M*M*M 4.2*1.3*2.1 Machine weight Ton 3.3
