800mm Width Three Layer PP Stationery Foam Sheet Extrusion Line
Qingdao Leader Machinery Co., Ltd.- Product Type：PP Board
- Board Layers：Multilayer
- Screw No.：Single-screw
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008
Base Info
- Model NO.：LSJ-65,65,65
- Customized：Customized
- Condition：New
- Name：PP Foam Sheet Extrusion Line
- Sheet Width：600-1000mm
- Sheet Thickness：0.8-3mm
- Foam Technology：Chemical Foam
- Extrusion Capacity：150-200kg,H
- Sheet Application：Packing, Stationery
- Die Head Type：T-Type or Coat Hanger Die Head Design
- Processing Technology：Three Rollers Calendars Calibrating
- Main Electrical Parts：ABB, Omoron, Delix, Schnider, Rkc etc
- Guaranteed Time：12 Months
- Transport Package：Wooden Case or Other Moistureproof Packages
- Specification：LSJ65,65,65
- Trademark：Leader Machinery
- Origin：Qingdao of China
- HS Code：8477209000
- Production Capacity：20set,Year
Description
SHEET MACHINE CONFIGURATIONS:1 PLC Controlling System, Controlling 3 sets of Main Extruders 1 set 2 LSJ65/33 Single Screw Extruder 3 sets 3 Hydraulic Exchanging Unit 3 sets 4 T-type Co-extrusion Die Head with Oil Circulation 1 set 5 Three-roller Calendar 1set 6 Thermo-controlling Machine for Three Rollers Calendars 1 set 7 Cooling Frame & Edge Cutting Knives 1 set 8 Haul off Machine 1 set 9 Guillotine(knife cutting) 1 set 10 PP Foam Sheet Wastes Storage Containers 2sets 11 Sheet Stacker 1 set 12 Spare parts 1 set
MAIN TECHNICAL DATA
1. Single Screw Extruder:
Screw adopts special mixing function and high plasticizing capacity design, famous imported world-known thermocontrollers,electronics, hard gear surface gearbox to ensure high effective material extrusion capacity.

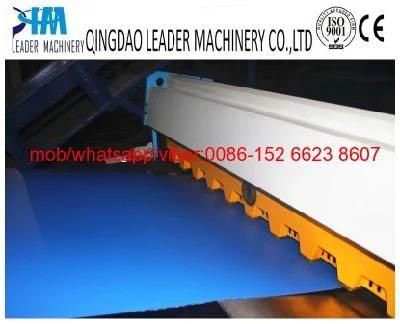

2.T-type die head: JC-Times brand
excellent mould special steel 5CrNiMo, suitable compression ratio to ensure uniform flow stability. Using a special double flow design which allows more precise adjustment to sheet thickness.
Temperature control of plus or minus 1 ºC can accurately control the plasticizing process and sheet thickness.
Die head is designed with width adjustment system .
3.Three roller calendar: Alloy steel material , chromed, good quality
According to the material properties, adopting vertical three-roller, oblique three-roller, horizontal three-roller calendar. Internal roller temperature control adopts a unique flow channel, so that the stability if uniform distribution roller. The independent oil temperature control for three roller calendar to ensure more stable and exact control.
4.Cooling frame: according to product specifications, configure with different specifications of stainless steel cooling roller.
5.Edge cutting device:
trimming can be manual or automatic. Both the position of the edge trimmer and the width of trimming sheet can be adjustable.
6.Cutting machine:
it can be divided into saw cutting or knife cutting. Thin type and non-friable type sheet usually adopt knife cut, adopting high quality alloy cutting tools, sharp and durable. Thick type sheet usually use saw cutting.
7.Winder: torque motor driving. The winding speed can be automatically controlled according to the tension. Portable airshaft, easy and convenient operation.
DELIVERY, PAYMENT AND SERVICES:
1.delivery time: 60 days after receiving the deposit
2.payment terms:30% for the prepayment by T/T and 70% for the downpayment by T/T before delivery or irrevocable L/C at sight can be available, too.
3.Packing details: 1 set of 40HQ container, wooden pallets and cases with stretching films
4.Guaranteed time: 18 months for the machenical parts and 12 months for the electrical parts.
5.Service: we will send 1-2 engineers to customers' factory to help them install, test the machine and also train their workers, but customers should bear the round tickets, accommodation, and salary etc.
6. Contact: Ms Lilly Zhou
MAIN TECHNICAL DATA
1. Single Screw Extruder:
Screw adopts special mixing function and high plasticizing capacity design, famous imported world-known thermocontrollers,electronics, hard gear surface gearbox to ensure high effective material extrusion capacity.
2.T-type die head: JC-Times brand
excellent mould special steel 5CrNiMo, suitable compression ratio to ensure uniform flow stability. Using a special double flow design which allows more precise adjustment to sheet thickness.
Temperature control of plus or minus 1 ºC can accurately control the plasticizing process and sheet thickness.
Die head is designed with width adjustment system .
3.Three roller calendar: Alloy steel material , chromed, good quality
According to the material properties, adopting vertical three-roller, oblique three-roller, horizontal three-roller calendar. Internal roller temperature control adopts a unique flow channel, so that the stability if uniform distribution roller. The independent oil temperature control for three roller calendar to ensure more stable and exact control.
4.Cooling frame: according to product specifications, configure with different specifications of stainless steel cooling roller.
5.Edge cutting device:
trimming can be manual or automatic. Both the position of the edge trimmer and the width of trimming sheet can be adjustable.
6.Cutting machine:
it can be divided into saw cutting or knife cutting. Thin type and non-friable type sheet usually adopt knife cut, adopting high quality alloy cutting tools, sharp and durable. Thick type sheet usually use saw cutting.
7.Winder: torque motor driving. The winding speed can be automatically controlled according to the tension. Portable airshaft, easy and convenient operation.
DELIVERY, PAYMENT AND SERVICES:
1.delivery time: 60 days after receiving the deposit
2.payment terms:30% for the prepayment by T/T and 70% for the downpayment by T/T before delivery or irrevocable L/C at sight can be available, too.
3.Packing details: 1 set of 40HQ container, wooden pallets and cases with stretching films
4.Guaranteed time: 18 months for the machenical parts and 12 months for the electrical parts.
5.Service: we will send 1-2 engineers to customers' factory to help them install, test the machine and also train their workers, but customers should bear the round tickets, accommodation, and salary etc.
6. Contact: Ms Lilly Zhou
