• Model NO.：SJZ65,132 SJZ80,156 SJZ92,188
• Customized：Customized
• Condition：New
• After-sales Service：Yes
• Main Motor：Siemens Beide
• Inverter：ABB
• Main Electrics：Siemens , Schneider
• Temperature Control：Omron
• Voltage：Customized
• Production Output：150-500 Kg,H
• Machine Color：Customized
• Pipe Application：Water & Conduit Pipe
• Production Direction：From Right to Left
• Delivery Time：45-55 Working Days
• Transport Package：Shrinking Film, Wooden Case
• Specification：20-800mm
• Trademark：Sunrise Machinery
• Origin：China
• HS Code：84778000
• Production Capacity：100-500kg,H

Basic Info.

Model NO. SJZ65/132 SJZ80/156 SJZ92/188 Customized Customized Condition New After-sales Service Yes Main Motor Siemens Beide Inverter ABB Main Electrics Siemens / Schneider Temperature Control Omron Voltage Customized Production Output 150-500 Kg/H Machine Color Customized Pipe Application Water & Conduit Pipe Production Direction From Right to Left Delivery Time 45-55 Working Days Transport Package Shrinking Film, Wooden Case Specification 20-800mm Trademark Sunrise Machinery Origin China HS Code 84778000 Production Capacity 100-500kg/H

Product Description

Company Information

Zhangjiagang Sunrise Machinery Co., Ltd.  is specialized in manufacturing kinds of plastic machines. Our main products as below:

1. PVC / PE / PPR Pipe Production Line2. PVC window & Door Profile / Panel Production Line3. Plastic Sheet & Wide Board Production Line4. Plastic Shredder, Crusher & Pulverizer5. Waste Plastic Recycling Machines6. Wood Plastic Profile Production Line7. High Speed Mixer for PVC  We have more than 10 years experince in this field. With CE standard and rich experince, Sunrise Machinery will be your reliable supplier for plastic machines.  We warmly welcome friends from all over the world to visit our factory.
Our PVC pipe extrusion line  has the features as below:

1. Good components: Siemens Beide main motor, ABB inverter, Siemens & Schneider low voltage electrics, Omron temperature controller

2. Good design and good outlook: We design the machine for easier operation and stable performance. The haul off machine and cutter is fully closed for safety purpose. Planetary socket is using in some machines for wire connection.

3. Our engineers and technicians have more than 10 years experince, they know pipe machine well and make good pipe machine.

If you need good  PVC Pipe Extrusion Line, please  contact us now.

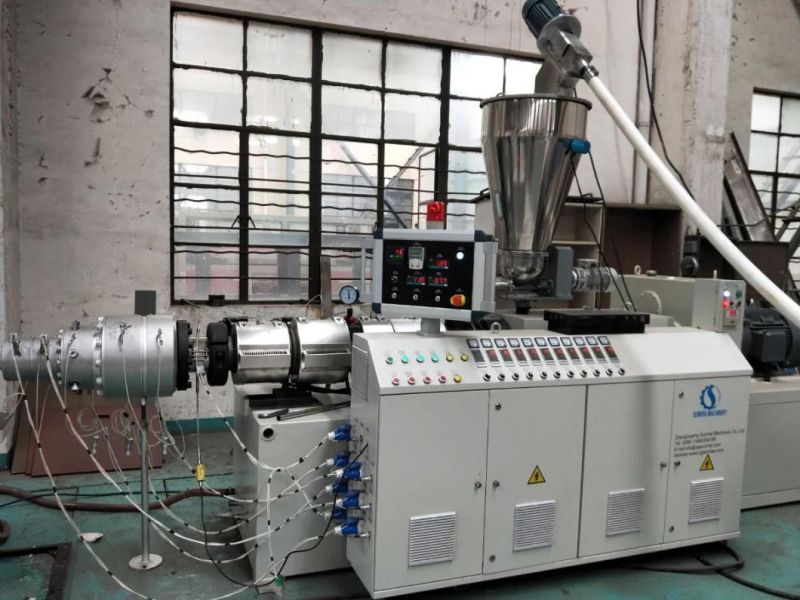

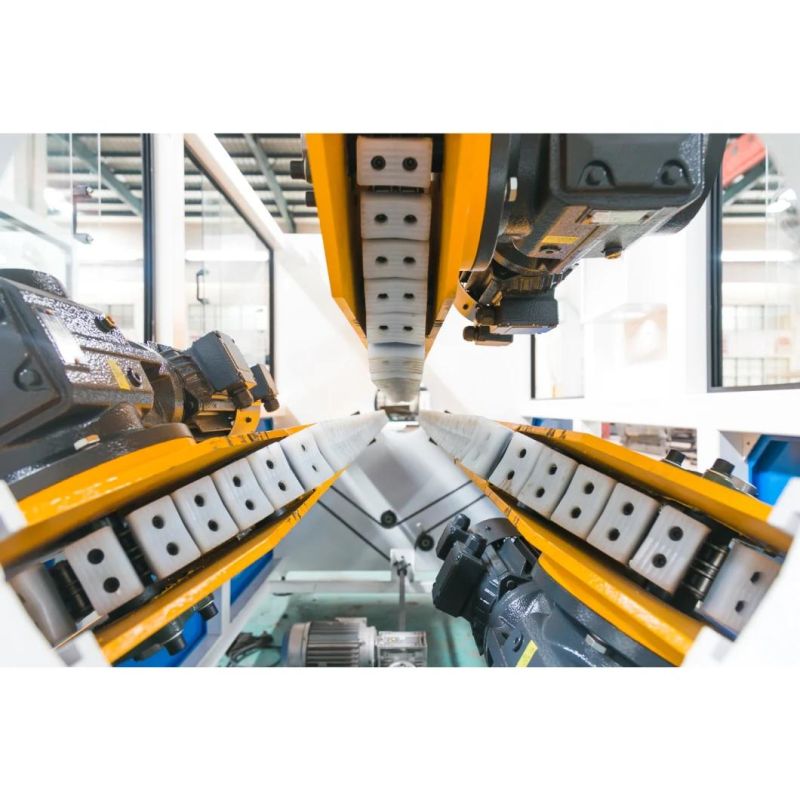

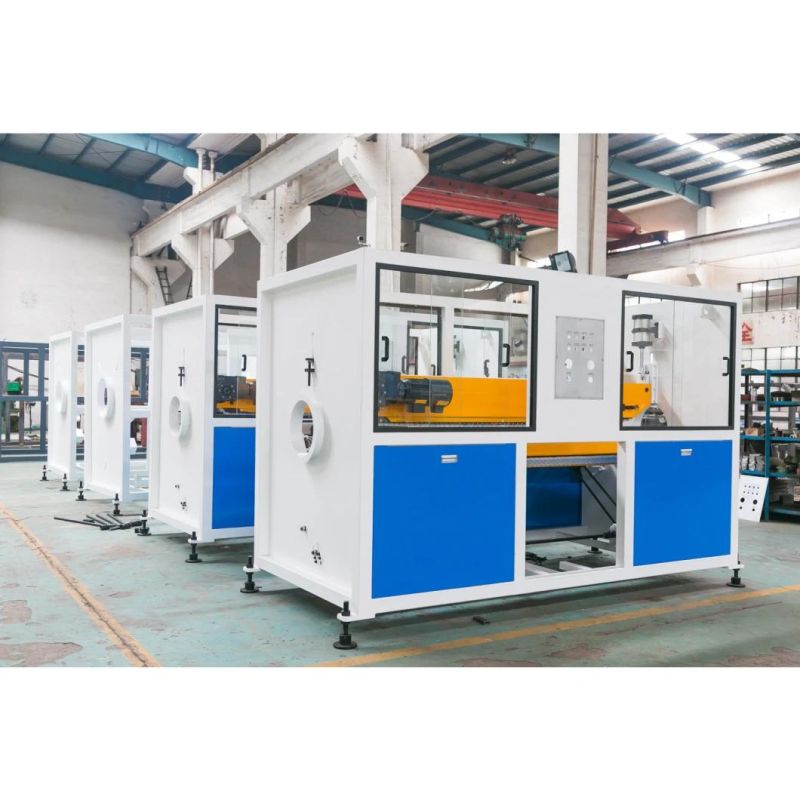

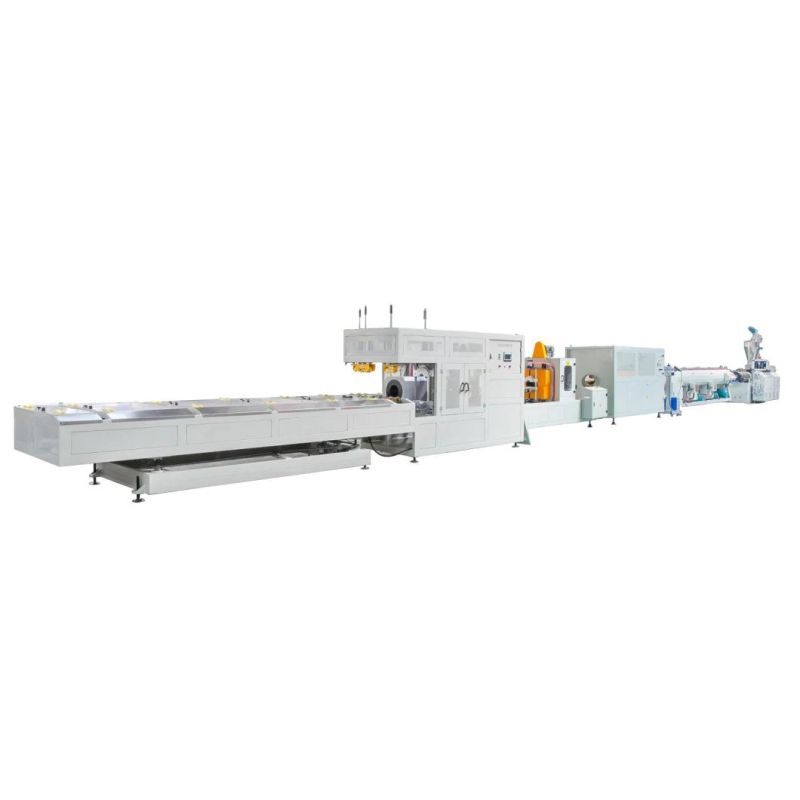

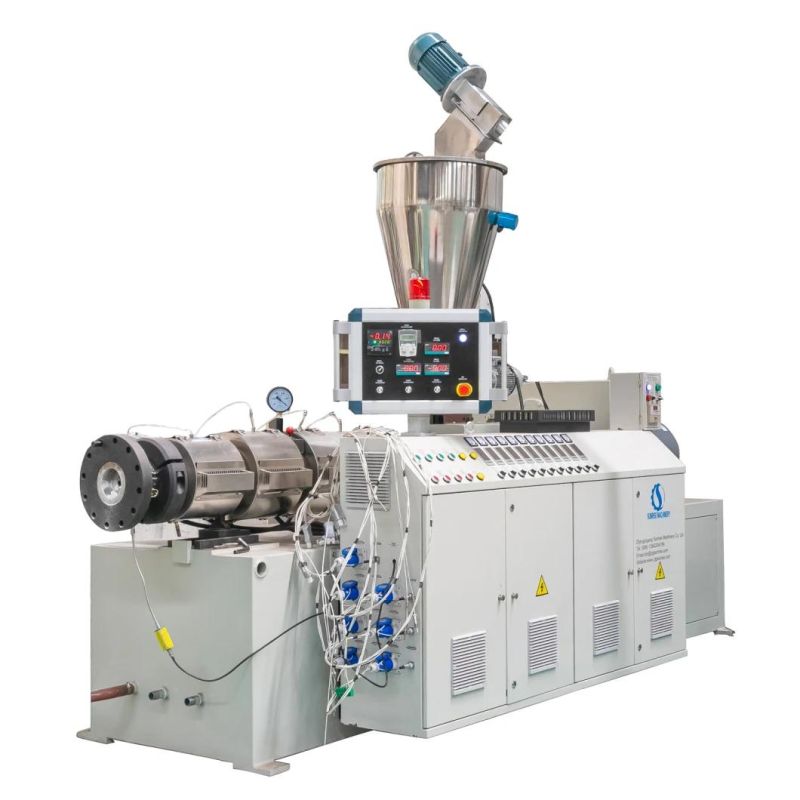

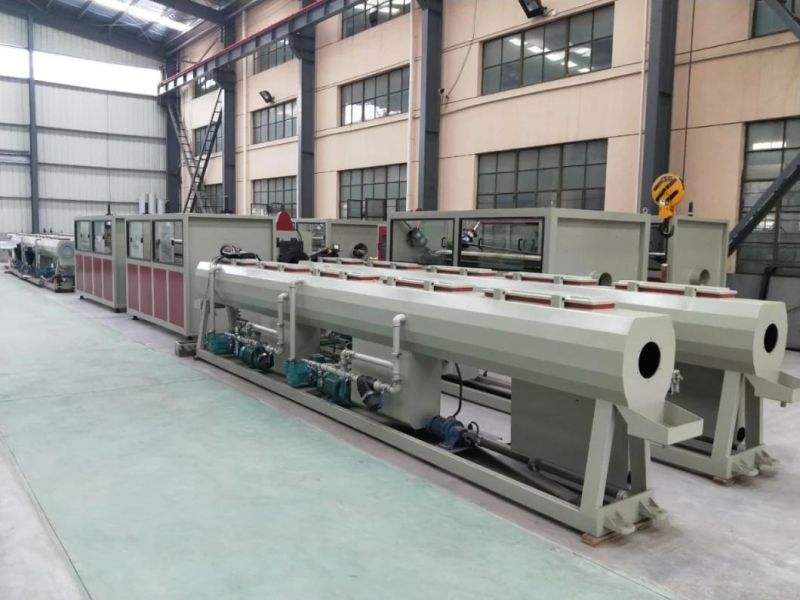

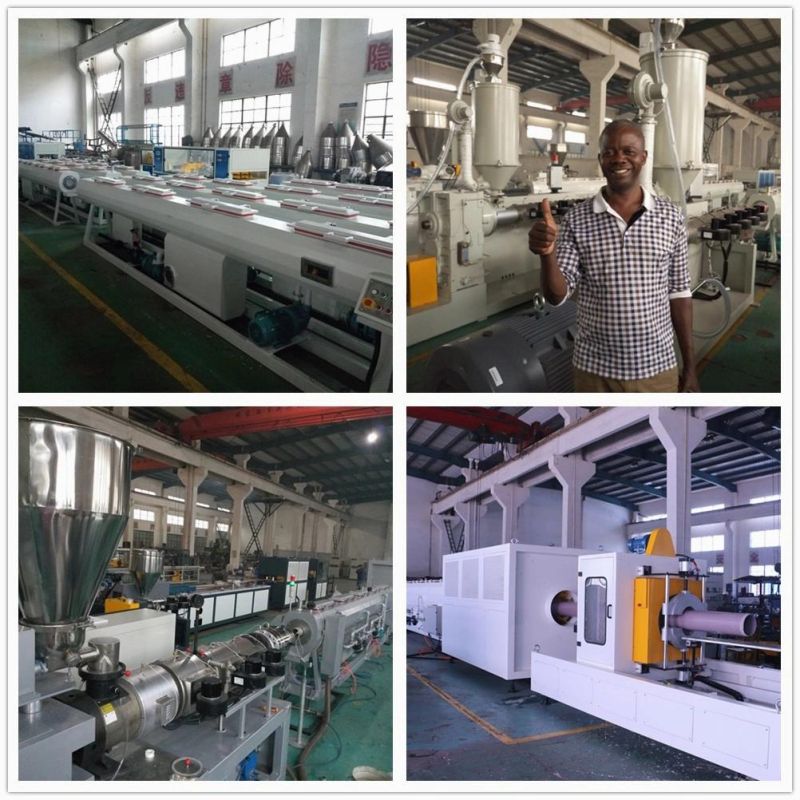

Pictures of our PVC pipe extrusion line

Feature of Machines:

1- PLC control, high degree of automation2- Adopting special screw and barrel, good effect
3- Adopting compound spiral engine head, effectively eliminate memory function of the material
4- Easy operate and need less worker
5- Convenient for maintaining

Produce process:

PVC powder + additive →mixing →spring feeding →twin screw extruder →mould and calibrator → vacuum forming machine →haul off machine →cutting machine →stacker

Technical Parameters:


Diameter(mm)	16-40dual	20-63dual	20-63	75-200	160-315	315-630
Extruder mode	SJZ51/105	SJZ65/132	SJZ51/105	SJZ65/132	SJZ80/156	SJZ92/188
Extruder power (kw)	18.5AC	37AC	18.5AC	37AC	55AC	110DC
Max lineal speed (m/min)	0.5-10	0.5-15	0.5-10	0.5-8	0.5-6	0.5-4
Max capacity (kg/h)	120	250	80-120	180-250	280-350	500-600

Main Composition of PVC Pipe Making Machine:


No.	Item	Quantity
1	SJSZ series conical twin screw extruder (Equipped with automatic feeding unit)	one set
2	Die and Mold	One set
3	Vacuum calibration water tank	One set
4	Haul-off unit	One set
5	Cutter Unit	One set
6	Stacker	One set
	Optional auxiliary machines in production for your choice
A	Printer	one set
B	Mixer	one set
C	Crusher	one set
D	Milling machine	one set
5	Belling machine	one set

Services:

1. We could send engineers to the buyer's factory for installation instruction, commissioning and training service at buyer's cost.
2. Our machine has one year guarantee since the installation in buyer's factory. During the guarantee time, if any parts (except the easy damaging parts) are damaged under normal operation, we will offer free spare parts. After the guarantee time, we will offer the spare parts with cost price.
3. If the buyer has any problem during the operation, we will offer technical solutions.
