• Model NO.：SJ
• Computerized：Computerized
• Machine Weight：8T
• Certification：CE, ISO9001:2008
• Main Motor：45 Kw
• Max. out Put：170-200 Kgs,H
• Machine Dimention：Long10 Wide 4.2 High 9 Meter
• Screw L/D Ratio：32:1
• Transport Package：Film Wrap
• Trademark：YUNBANG
• Origin：Zhejiang China
• HS Code：8477309000
• Production Capacity：60 Set, Year

Basic Info.

Model NO. SJ Computerized Computerized Machine Weight 8T Certification CE, ISO9001:2008 Main Motor 45 Kw Max. out Put 170-200 Kgs/H Machine Dimention Long10 Wide 4.2 High 9 Meter Screw L/D Ratio 32:1 Transport Package Film Wrap Trademark YUNBANG Origin Zhejiang China HS Code 8477309000 Production Capacity 60 Set/ Year

Product Description

Machine main variables-----------------------------------------------------------------------------------

Model	SJ-65FM-600	SJ-70FM-700	SJ-75FM-800
Screw Diameter	65mm	70mm	75mm
Screw Ratio	1:28	1:28	1:28
Screw Speed	10-110r/min	10-110r/min	10-110r/min
Max.Output	50kg/h	70kg/h	90kg/h
Max.Folding Width of Film	550mm×2	650mm×2	750mm×2
Single-sided Thickness of Film	0.006-0.10mm	0.006-0.10mm	0.006-0.10mm
Power of main  motor	18.5-22Kw	22-30Kw	37Kw
Total Power	40Kw	55Kw	70Kw
Weight of Machine	3000kg	3800kg	4500kg
Overall Dimensions	4800×2200×3800	5000×2400×4000	5200×2600×4200

USE--------------------------------------------------------------------------------------------------------------
This machine set is used for blowing Low-density polyethylene(LDPE)and high-density polyethyene(HDPE)plastic film to make various vest bags and flat-rim bags which have been widely used for packing in the food industry, gamenet industry and textile industry, etc.
Detailed  images---------------------------------------------------------------------------------------------

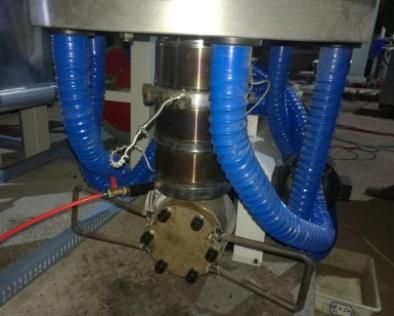

AIR RING : It is an important component of film blowing unit for plastic processing machinery. It is responsible for cooling and setting of blown film bubbles.

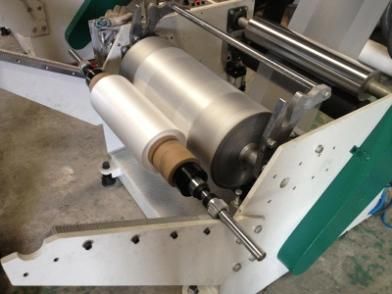

REWINDER: The blown film is coiled into coils, and the coiled film is smooth and wrinkle-free, with neat edges. The film on the reel shaft should be tightened moderately to prevent the film from stretching deformation and ensure the quality.

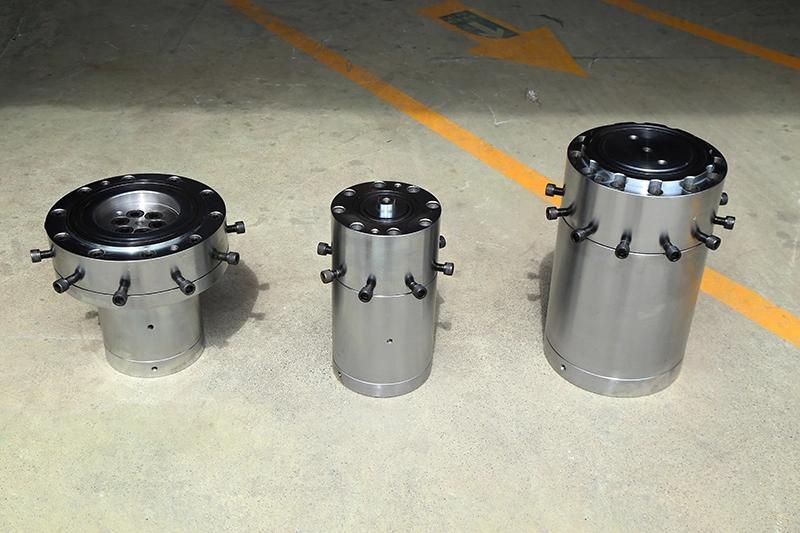

DIE HEAD/DIE The die controls the blowing ratio of the membrane, which has an effect on the strength and stability of the membrane.
