High-Speed ABA, Ab HDPE, LDPE, CaCO3, Three-Layer, Two Layer Extruder with Dosing System ...

RUIAN YUNBANG MACHINE CO., LTD.
  • Warranty：One Year
  • Type：Multi-Layer Co-extrusion Film Blowing Machine
  • Raw Material：PE
  • Maximum Folding Width of Film：1500mm
  • Screw Diameter：75mm
  • Automation：Automatic

Base Info

  • Model NO.：SJ-
  • Computerized：Computerized
  • Machine Weight：4T
  • Certification：CE, ISO9001:2008
  • Output：45kg,65kg,85kg
  • Width：800-1500mm
  • L/D Ratio：30:1,32:1
  • Winder Type：Double Winder Station
  • Die Head：Rotary Die Head
  • Transport Package：as Requirement
  • Specification：CE. SGS
  • Trademark：YunBang
  • Origin：China
  • HS Code：8477309000
  • Production Capacity：5 Sets,Month

Description

ModelSJ-55SJ-65SJ-75
FeaturesRaw MaterialHDPE, LDPE, LLDPE; Virgin and RecycledFilm Width800mm1200mm1500mmAverage Output45Kgs65Kgs85KgsFilm Thickness0.008mm-0.15mmDimension5×3.5×4.5M6×4×5.5M7×5×7M


Extrusion UnitScrew Diameter/LD ratio55mm
30:165mm
30:175mm
32:1Motor15KW22KW37KWGearbox146173200Die Head TypeRotary Die HeadDie Size80/160mm160/260mm400mmFilm
Taking-up TowerUpper Tower TypeUp and down; embossing roller and gussetingRoller Length900mm1400mm1800mmRoller Working WayOpened and Tightened By Air CylindersWinding StationWinder TypeDouble winding station fraction typeRollers900mm1400mm1700mmMax. Winding Diameter650mm
Control Panel
Temperature control5 zoneElectronicsTop China Brand

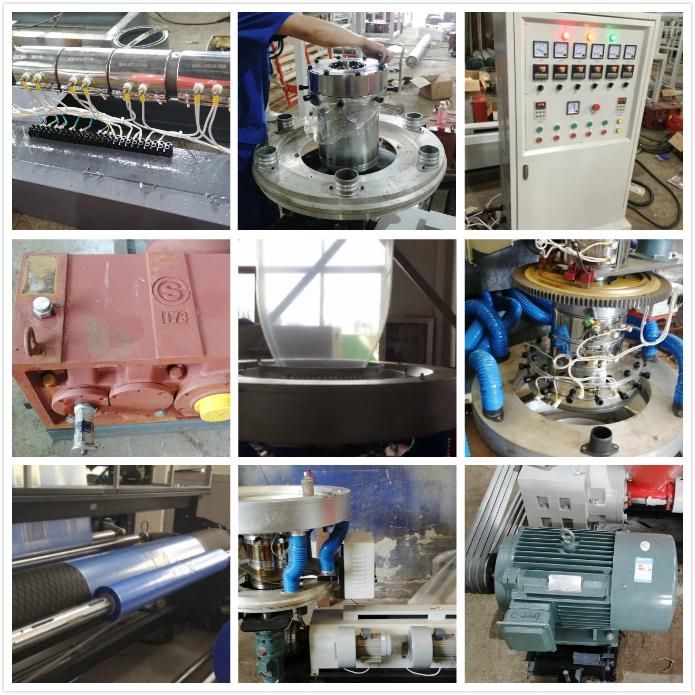

3. More Detailed Pictures :

1500mm High Capacity Rotary PE Plastic Agricultrual Film Extruder
High-Speed ABA, Ab HDPE, LDPE, CaCO3, Three-Layer, Two Layer Extruder with Dosing System Plastic Film Blowing Machine
High-Speed ABA, Ab HDPE, LDPE, CaCO3, Three-Layer, Two Layer Extruder with Dosing System Plastic Film Blowing Machine

High-Speed ABA, Ab HDPE, LDPE, CaCO3, Three-Layer, Two Layer Extruder with Dosing System Plastic Film Blowing Machine
High-Speed ABA, Ab HDPE, LDPE, CaCO3, Three-Layer, Two Layer Extruder with Dosing System Plastic Film Blowing Machine
