• Exhaust：Don′t Exhaust
• Automation：Automatic
• Computerized：Computerized
• Rope Size：3-32mm
• Rope Strands：3 Strand and 4 Strand
• Rope Material：PP PE Pet Cotton Jute Polyester Jute etc
• Output：High Efficiency and Output
• Quality：Good Quality
• Warranty：1 Year
• Technical Support：Yes
• Loading Time：45days After Deposit Received
• Certification：ISO Ce
• Power：7.5kw-30kw
• Usage：Packing Agruculture
• Function：Twisting
• Colour：Customers′ Requirement
• Motor Quantity：1,2,3 Motors
• Brand：Cnrm
• Transport Package：Container
• Specification：5.6*2*2m
• Trademark：CNRM
• Origin：China
• HS Code：84794000
• Production Capacity：High Output

Basic Info.

Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Rope Size 3-32mm Rope Strands 3 Strand and 4 Strand Rope Material PP PE Pet Cotton Jute Polyester Jute etc Output High Efficiency and Output Quality Good Quality Warranty 1 Year Technical Support Yes Loading Time 45days After Deposit Received Certification ISO Ce Power 7.5kw-30kw Usage Packing Agruculture Function Twisting Colour Customers′ Requirement Motor Quantity 1/2/3 Motors Brand Cnrm Transport Package Container Specification 5.6*2*2m Trademark CNRM Origin China HS Code 84794000 Production Capacity High Output

Product Description

3mm-32mm Shandong Hadai CNRM PP/PE/Jute/Cotton/Nylon/Polyester Twisted Rope Making Machine


1.Product Description

The rope is divided into monofilament rope, split film rope, multifilament rope, nature rope, waste yarn rope.

Suitable rope

(1). Rope diameter: from 3mm up to 32mm.
(2). Suitable material: HDPE, PP, PET, nylon, polyester, cotton, sisal, jute, coconut, banana, recycled tape,nonwoven tape, etc. monofilament, multifilament, natural fiber, the machine has wide application scope.
(3). Rope structure: 3 strands, 4 strands, 4 strands with the core.

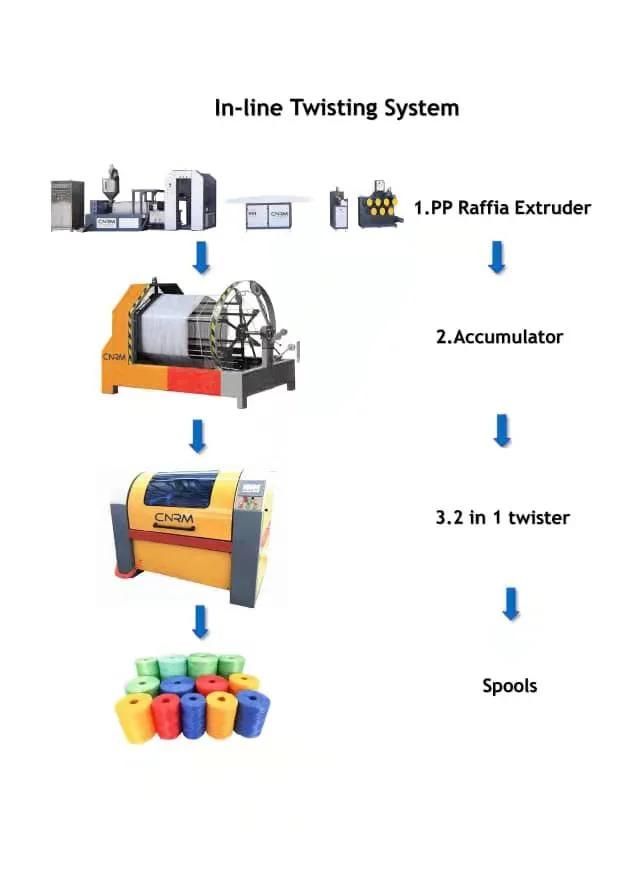

Complete production line for pp pe monofilament rope

(1). PP PE monofilament yarn extruder machine for matching High Speed nylon rope making machine for plastic monofilament/pp danline/Plastic split blown film/sisal jute/cotton cloth rope.

(2). Ring twister machine for first twisting of rope.

(3). Rope making machine for making 3 strands or 4 strand rope.

(4). Rope rewinder machine for reel, coil, hank packaging.

2.Plastic Rope Making Machine Parameters



Item	HDTM-M33	HDTM-M44	HDTM-M55	HDTM-M66	HDTM-M77
Rope Range	3-10mm	6-14mm	12-22mm	18-26mm	22-32mm
Lay Range	15-38mm	20-50mm	32-78mm	40-105	45-130
Power	7.5kw	7.5kw/11kw	18.5kw	22kw	30kw
Take-up capacity	Φ130*Φ500*Φ320	Φ130*Φ600*Φ400	Φ130*Φ600*Φ400	Φ140*Φ700*Φ450	Φ200*Φ550*Φ650
Size of pay-off bobbin	175*300mm(8)	175*300mm(8)	175*300mm(8)	175*300mm(8)	175*300mm(8)
Qty of 8" bobbin	8*3 or 8*4	24*3 or 24*4	32*3 or 32*4	46*3 or 46*4	64*3 or 64*4
Machine weigth	2500kg	3500kg	5000kg	6000kg	7000kg



Plastic Rope Making Machine Key Features

-Power transmission by timing belts.
-Auto stop after yarn breakage to control wastage.
-Digital length counter meter.
-Door Sensor.
-A.C. frequency drive.
-Direct coiling head. 3.Detailed Images

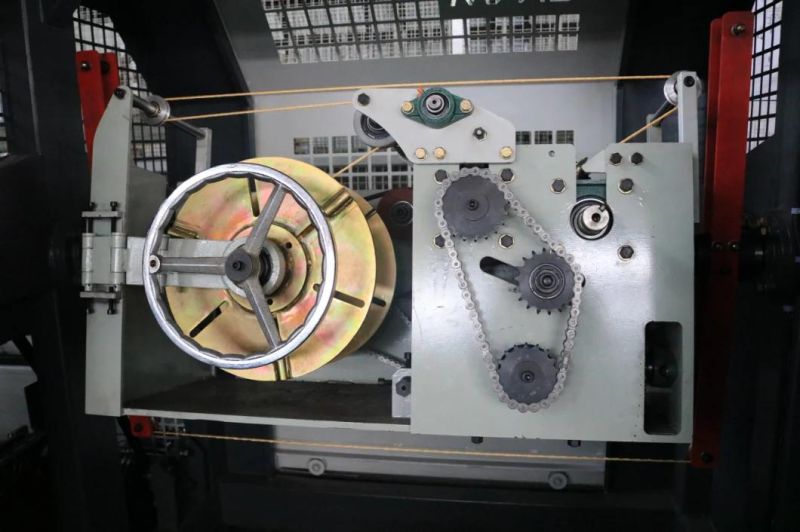

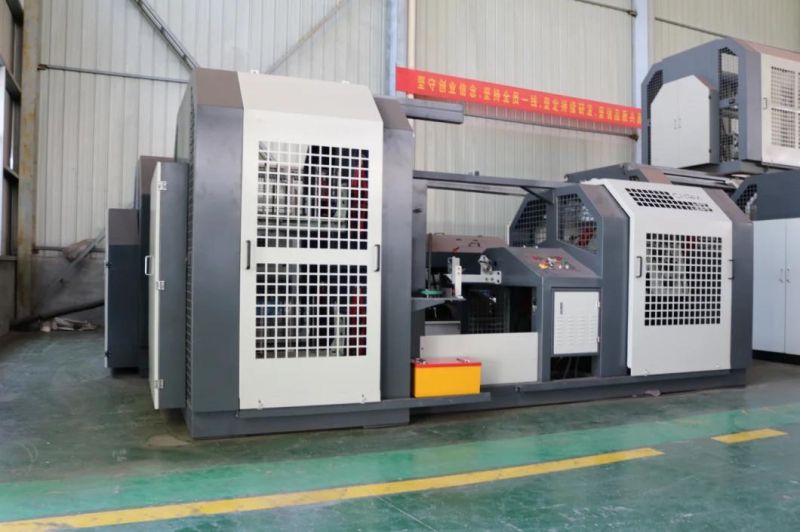

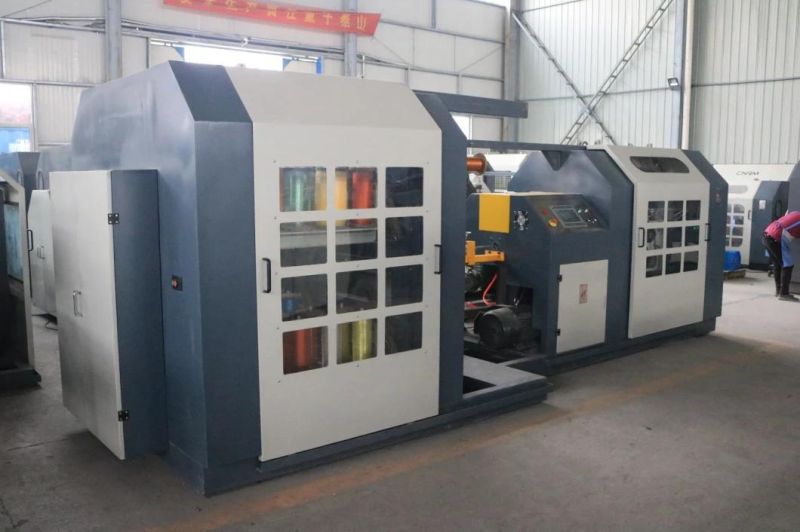

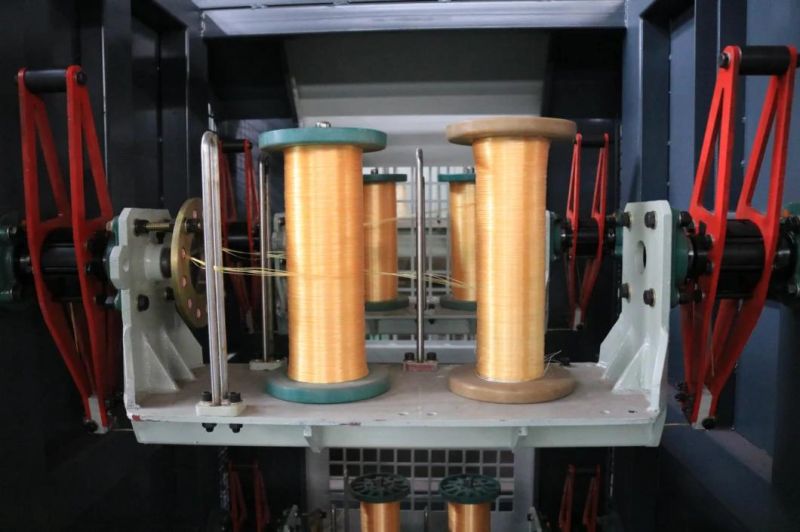

Plastic Rope Making Machine Overall Pictures

please tell your final rope diameter range,we are so pleased to recommend right twist rope machine models to you.











4.Installation at customer's factory

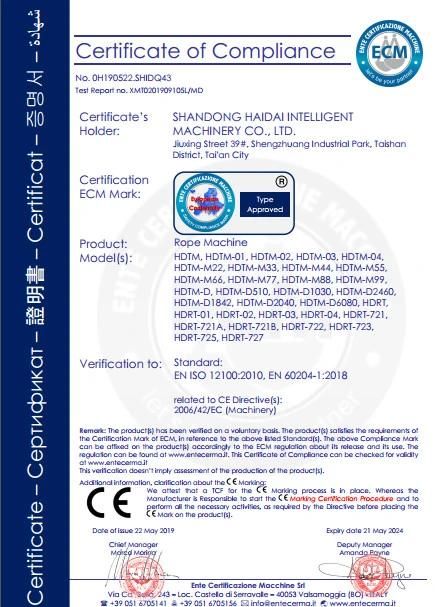

5. CE Certification


6.Related Products

PP/PE/HDPE/PET monofilament/danline rope production line


PP/PE/HDPE Raffia ball/spool rope production line



7.Contact us
