High Speed Small Bag Shopping Bag Making Machine Price
WENZHOU E-SHION MACHINERY CO., LTD.- After-sales Service：Whole Life After Service
- Warranty：Two Year
- Type：PE Film Blowing Machine
- Raw Material：Mixing
- Maximum Folding Width of Film：600mm
- Screw Diameter：50mm
Base Info
- Automation：Non-Automatic
- Computerized：Non-Computerized
- Machine Weight：4T
- Certification：CE
- Screw Material：Double Alloy
- Die Head：Optional
- Heater Material：Cast Aluminum
- Motor：China , Siemens Is Optional
- Inverter：China ,Delta or Panasonic Is Optional
- Electric Parts：Schneider ,Panasonic
- Temperature Control：Omron
- Gear Box /Reducer：Shuguang ,Hangzhou Weili
- Winder：Sing , Double
- Air Ring：Double-Lip Air Ring
- Transport Package：Plastic Film ,Bubble Film
- Specification：600mm
- Trademark：E-SHION
- Origin：China
- HS Code：8477309000
- Production Capacity：100sets,Year
Description
Model
SJ-45/FM600
SJ-55/FM800
SJ-60/FM1000
SJ-65/FM1200
SJ-80/FM1500
SJ-100/FM2000
Screw Diameter
50mm
55mm
60mm
65mm
80mm
100mm
Screw Ratio
L/D28:1
L/D28:1
L/D28:1
L/D28:1
L/D28:1
L/D28:1
Screw Speed
10-100r/min
10-100r/min
10-100r/min
10-100r/min
10-100r/min
10-100r/min
Power of Main Motor
7.5kw
11kw
15kw
18.5kw
30kw
55kw
Max. Extrusion output
45kg/h
60kg/h
70kg/h
85kg/h
100kg/h
160kg/h
Max. Folding Width of Film
600mm
800mm
1000mm
1200mm
1500mm
2000mm
Single-sided Thickness of Film
0.006-0.10mm
0.006-0.10mm
0.006-0.10mm
0.006-0.10mm
0.01-0.10mm
0.01-0.10mm
Total Power
18kw
22kw
28kw
32kw
52kw
80kw
Weight of Machine
2000kg
2200kg
2800kg
3300kg
4300kg
5800kg
Overall Dimensions
(L×W×H)
4200×1800
×3600mm
4400×2000
×4000mm
4600×2300
×4200mm
4800×2500
×4500mm
5200×2800
×5000mm
5800×3300
×6000mm
Rotery die head film blowing machine

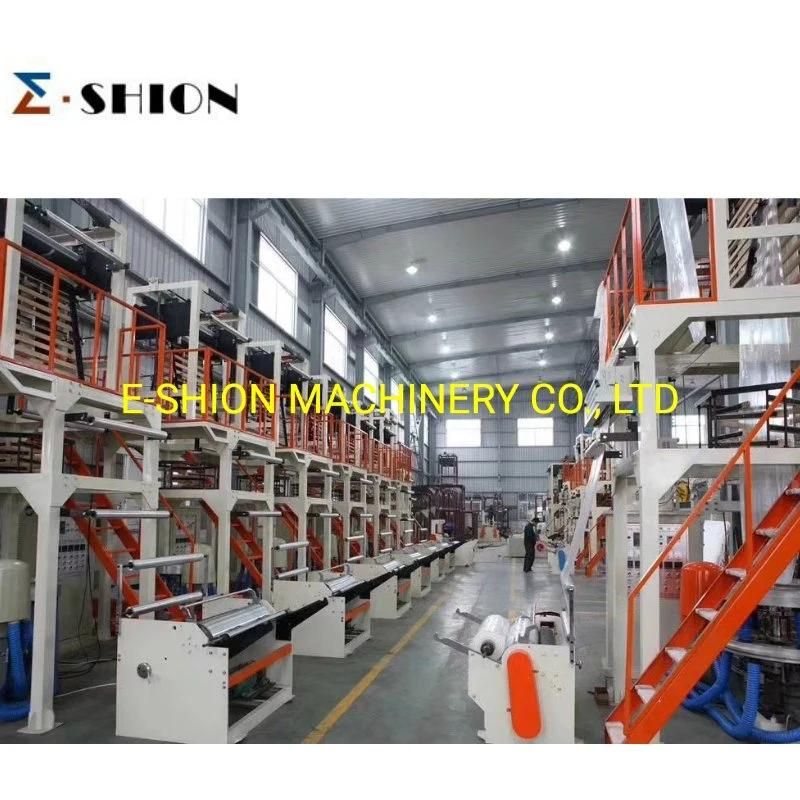

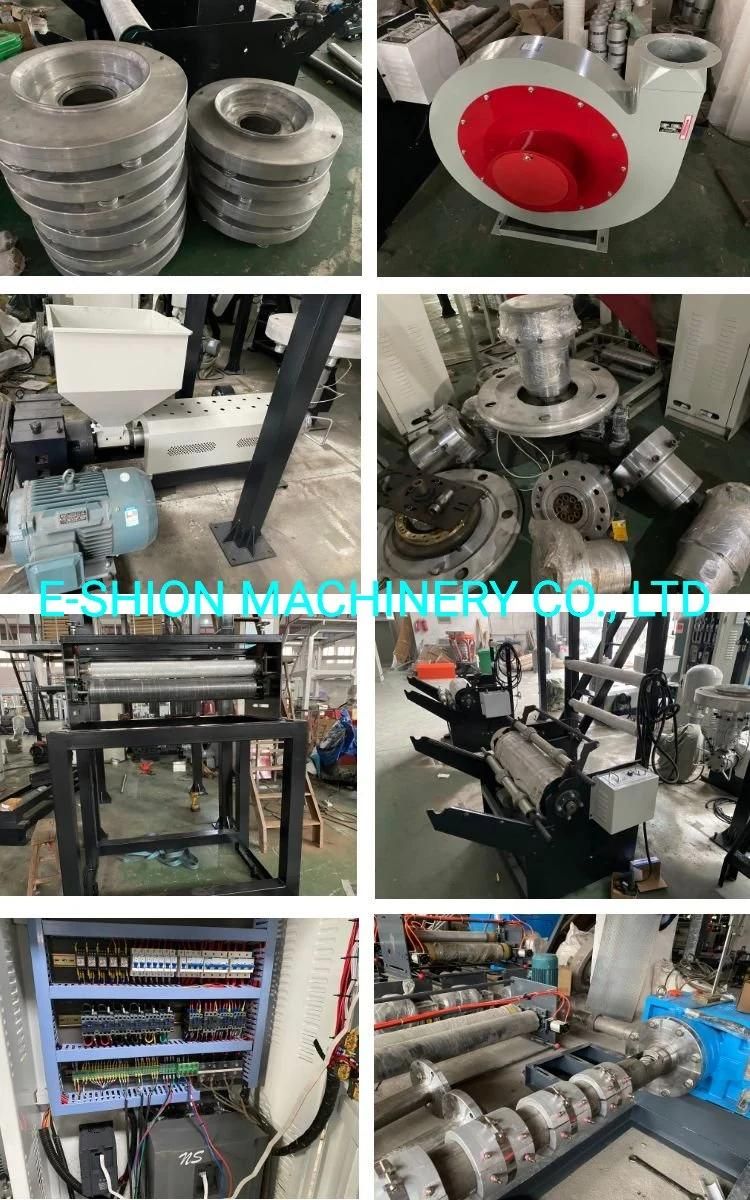

Machines in our workshop :
