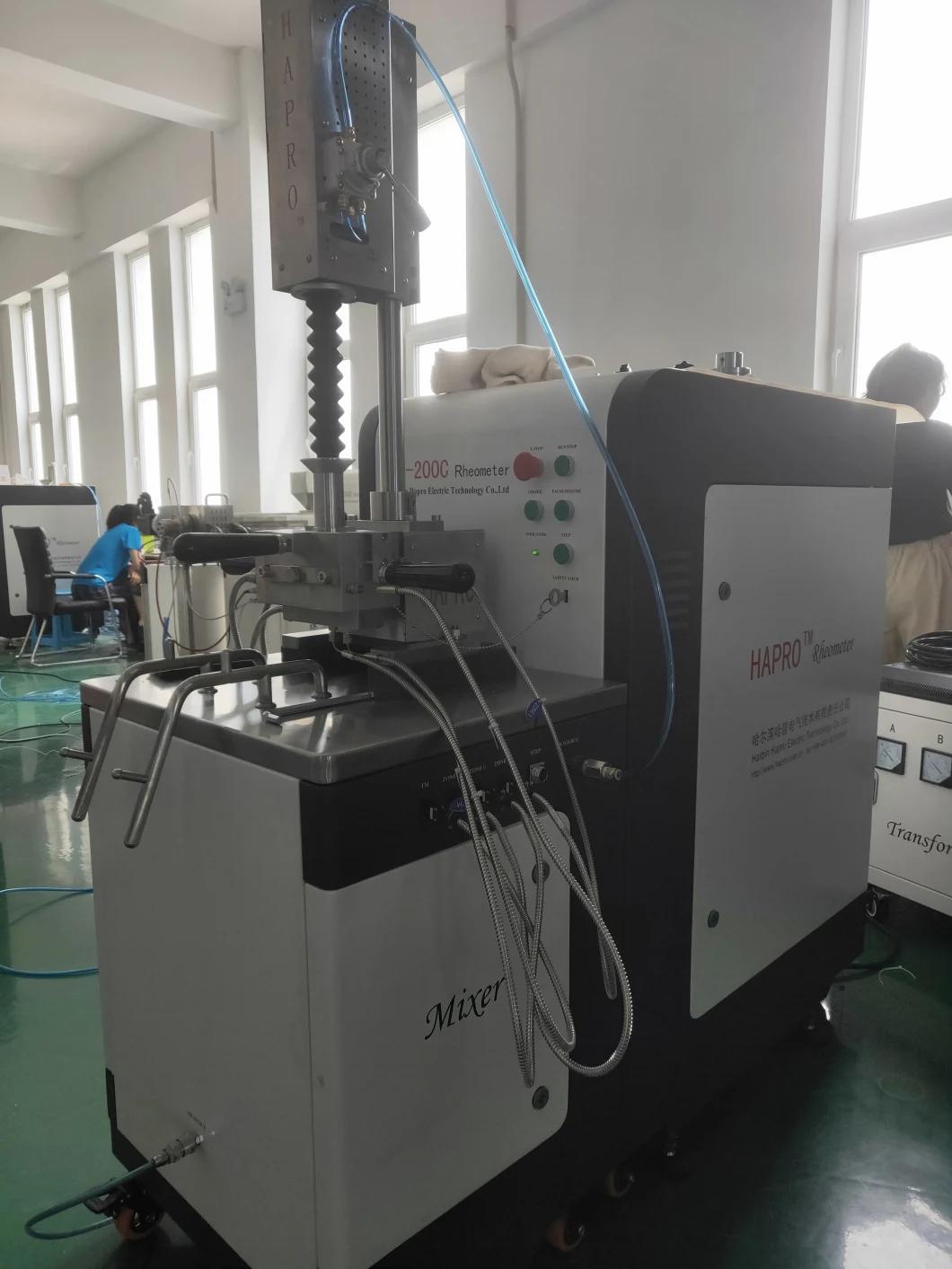

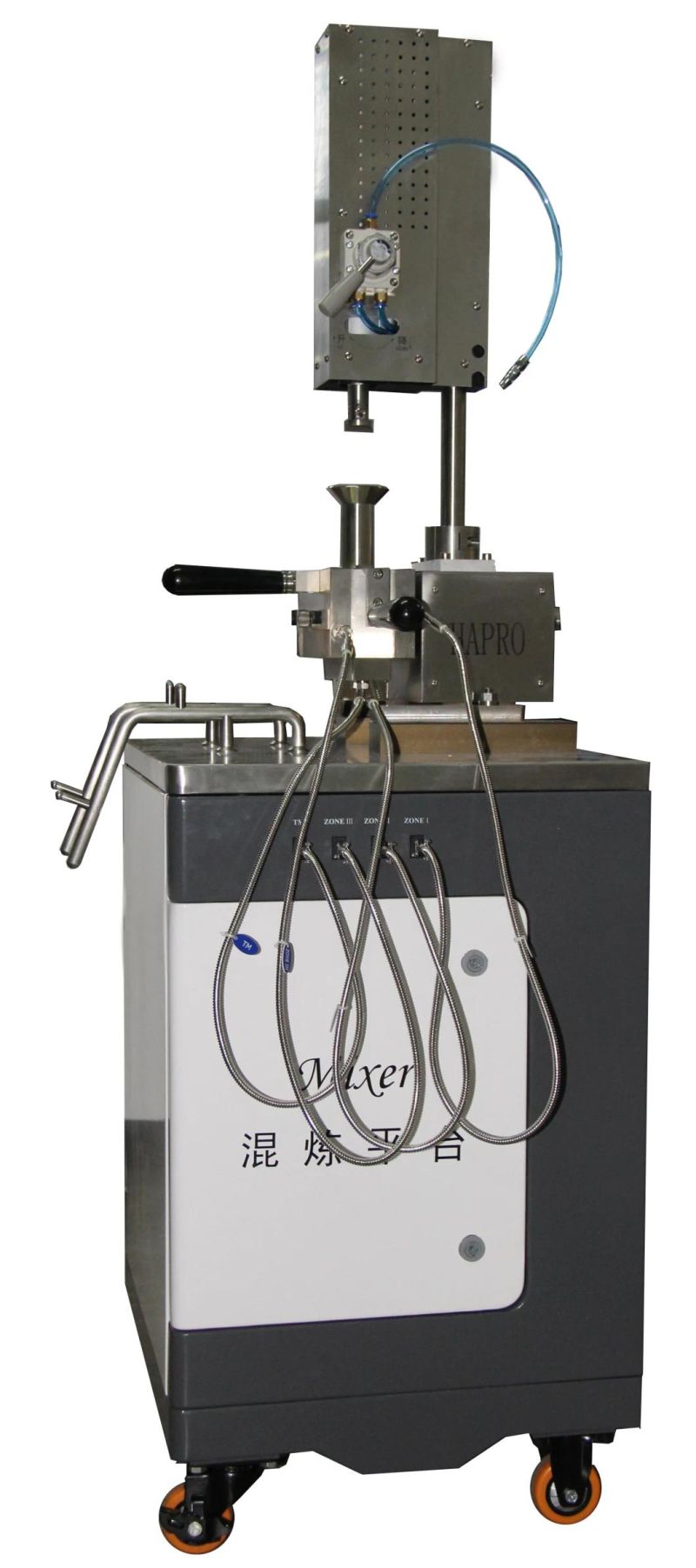

Rubber and Plastic Industry Laboratory 20 Ml Mixer Torque Rheometer

Harbin Hapro Electric Technology Co., Ltd.
  • After-sales Service：a Lifetime
  • Automatic Grade：Full-Automatic
  • Structure：Horizontal
  • Warranty：1 Year
  • Chamber Volume：20ml
  • Rotors Type：Roller ,Banbury,Sigma,Delta,Cam

Base Info

  • Max.Temperature：350
  • Max.Torque：320nm
  • Max.Rotor Speed：250rpm,Min
  • Weight：150kg
  • Transport Package：Plywood
  • Specification：20ml
  • Trademark：Hapro
  • Origin：China
  • HS Code：9024800000
  • Production Capacity：100,Year

Description

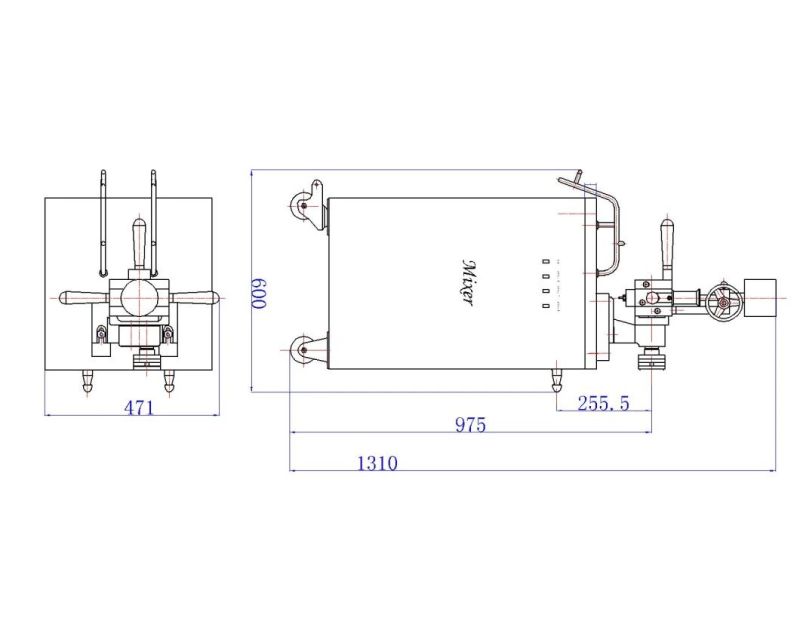

650×600×1800 mm
  • Types of rotors

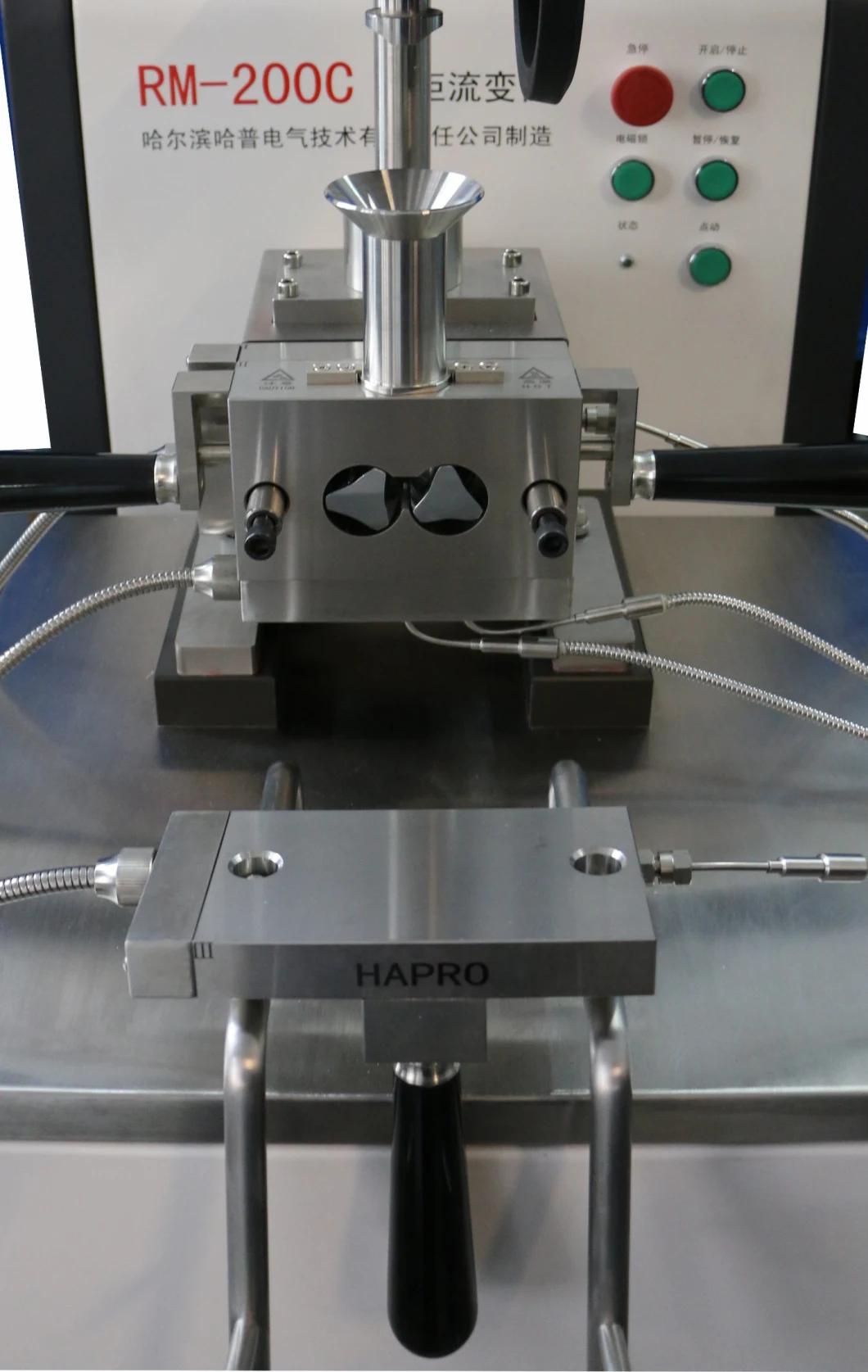

Rotor is the core component of Mixer System. Different structural type of rotors are suitable for different mixing process and directly affect the products quality ,efficiency and energy consumption. Now, we have developed five kinds of rotors for the plastic and rubber materials ,as illustrated below. The rotors are made of special steel ,counter-rotation towards each other at the speed ratio of 3: 2 provide for excellent compounding and high shear mixing characteristics .

    Photo   Name                  Function

Roller
It is usually used for testing thermoplastic materials and compounding with additives.


  Banbury
It is usually used for testing natural and synthetic elastomers with regard to flow and cure behavior, compounding with additives .

Cam
It is usually used for testing thermo-plastic polymer, ceramic composites, food and other high-torque materials.

Delta
It is usually used for testing cross-linking thermo-set polymer .

Sigma
It is usually used for testing food, medicine, and plastisol materials, which have low-torque.
