• Model NO.：BDX-HS001
• Condition：New
• Application：Pet Bottle Crushing Washing Line
• Automatic Grade：Semi-Automatic
• Model Number：Bdxhb
• After-Sales Service：Engineers Available to Abroad
• Main Motor：Depends on The Customer
• Transport Package：Wooden Package in The Container
• Specification：CE ISO9001: 2008 SGS
• Trademark：BDX
• Origin：Jiangsu Zhangjiagang
• HS Code：8477209000
• Production Capacity：300-3000kg,Hr

Basic Info.

Model NO. BDX-HS001 Condition New Application Pet Bottle Crushing Washing Line Automatic Grade Semi-Automatic Model Number Bdxhb After-Sales Service Engineers Available to Abroad Main Motor Depends on The Customer Transport Package Wooden Package in The Container Specification CE ISO9001: 2008 SGS Trademark BDX Origin Jiangsu Zhangjiagang HS Code 8477209000 Production Capacity 300-3000kg/Hr

Product Description

Hot Sale Pet Bottles Recycling Machine
Specifications
pet bottle crushing washing drying recycling line
1.CE certificate
2.High output low cost
3.New design
4.Good service
Description:

 This unit is mainly for PET (bottle) flakes: the labels and bottle caps are automatically separated, then after being washed, dewatered and dryed, the water content will be very low, and PP/PE film after being washed can be directly granulated (waterring palletizing), the gained granules are even and smooth with shiny surface. So, it is an ideal equipment in waste plastic recycling industry, with leading technology in the world.


The whole equipment includes parts as follows:




NO	ITEM	DESCRIPTION	SELECTIVITY
1	Prewasher	Remove the solid impurity which are water insoluble, such as hand stone, sand, etc. It can also wash bottles' surface.	Optional
2	Bale Breaker	It is used in large capacity recycling line, and bottles are compressed in bale.	Optional
3	Belt Conveyer	Including the metal detector.	Necessary
4	Label Remover	Label removing efficiency, more than 98%	Optional
5	Manual Select Platform	Made according to workers' height, supply a suitable plate for selecting the left labels or some other impurity.	Optional
6	Belt Conveyer	Conveying the bottles into crusher.	Necessary
7	Crusher	With water, the materials of the blade adopt SKD-II or 9CrSi. It has a function of prewashing too.	Necessary
8	Screw Feeder	Conveying the flakes into friction washer.	Optional
9	Friction Washer	Scrubbing material in high-speed with water.	Optional
10	SCrew Floating Washer	Remove few remand paper, sand, label from material based on different density.	Optional
11	Screw Feeder	Conveying the flakes into hot washer.	Necessary
12	Hot Washer	High temperature stirring washing with caustic soda. Water can be heated by steam or electric.	Necessary
13	Screw Feeder	Same as Item 8.	Necessary
14	Friction Washer	Same as Item 9.	Necessary
15	Screw Floating Washer	Same as Item 10.	Necessary
16	Dewatering Machine	High speed centrifuge drying.	Necessary
17	Drying System	Electric heating wind drying.	Necessary
18	Label Wind Separator	The last left impurity will be separated from flakes by the blower fan.	Optional
19	Silo	Store the final material.	Necessary
20	Electrical Control Panel	Adopts Siemens and DELIXI as main component.	Necessary

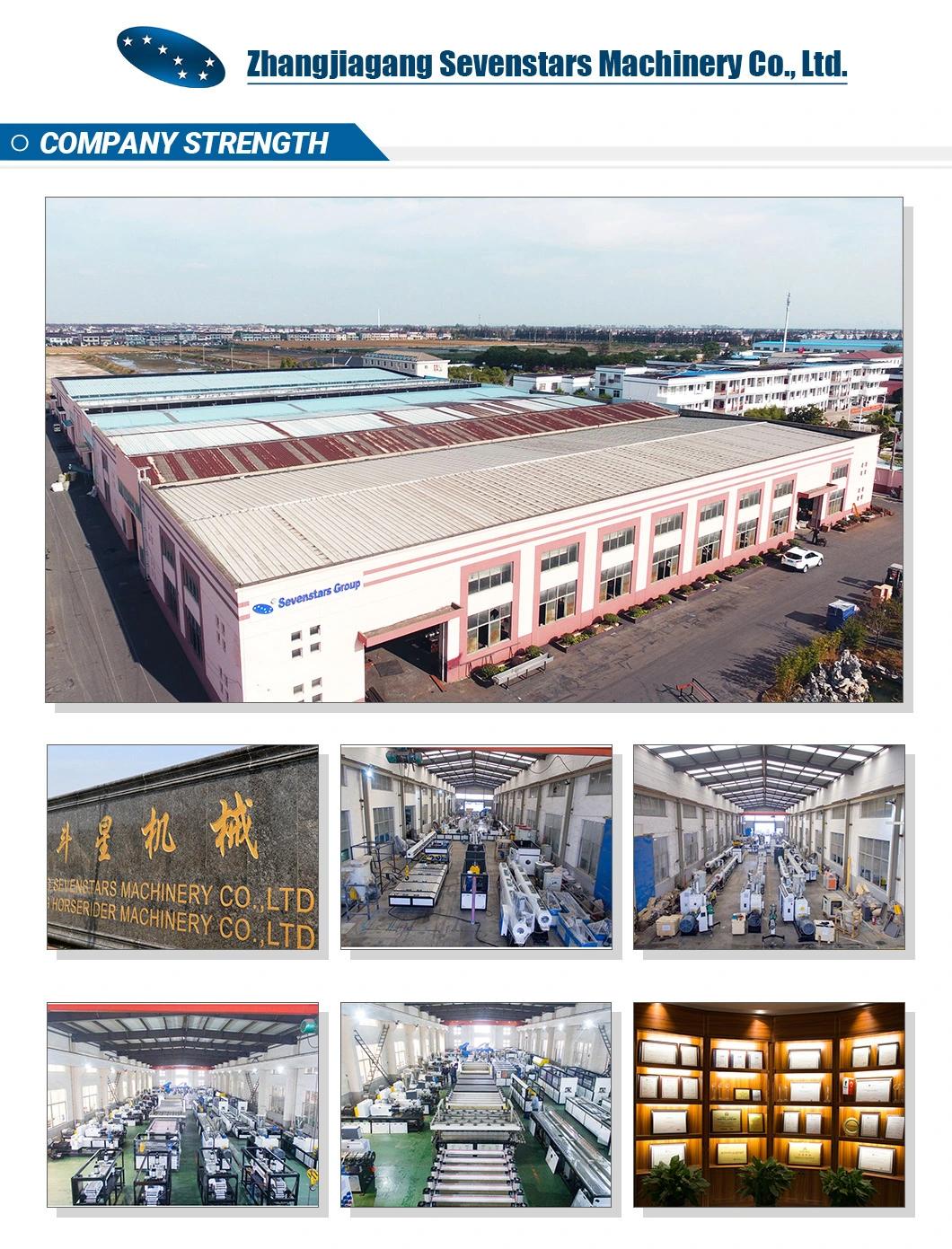

Zhangjiagang sevenstars is located in Zhangjiagang city, China, a beautiful and famous city for all kinds of plastic machine.
