• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Customized：Customized
• Condition：New
• Transport Package：as Export Standard for Plastics Machine
• Specification：SJ90,35
• Trademark：SUKE
• Origin：Qingdao, China
• HS Code：84775900
• Production Capacity：50set,Year

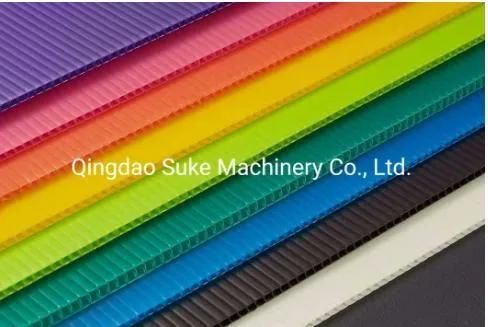

PP Hollow Corrugated Sheet is an extruded hollow profile, also called twin wall plastic sheet, coroplast,  corflute, cartonplast.
PP hollow corrugated sheet is widely used in fields of machine,electron,appliance,food,advertising,interior decoration material,glass,agricultural product ext packing and transporting.
PP Hollow Machine Introductin

PP Hollow Corrugated Packing Sheet Extrusion Making Machine  can produce the sheet with the width of 1000-2800mm.We can provide all auxiliary machine for plastic pp hollow sheet to make box,suas as the edge sealing machine,die cutting machine,printing machine,welding machine etc

PP Hollow Machine Introductin Picture





Process flow for PP PC hollow sheet extrusion production line



Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder (depend on instrusion of the sheet)→Hydraulic screen change(optional) →melt pump → T-die →Vacuum calibrator forming machine →First hause off unit →Anneal oven →Cooling bracket →Double side Corona treatment device(optional)→Second haul off unit →Cross cutter and transmission unit→Collect table



ModelSheet widthSheet thicknessExtruder modelMotor powerTSGZB-14001250mm2-6,8-12mm100/3655-75kwTSGZB-18601700mm2-6,8-12mm120/3675-90kwTSGZB-23002150mm2-6,8-12mm120/3690-110kwTSGZB-26002450mm2-6,8-12mm120/3690-110kwTSGZB-30002800mm2-6,8-12mm150/36132kwTSGZB-2600(F)2450mm2-6,8-12mm120/36&80/36110+37kwIf there is any need on PP hollow Packing Sheet Extrusion Making Machine, welcome contact with us. Qingdao Suke Machinery Co.,Ltd.

More details, welcome to our website.
