• Model NO.：SJ
• Machine Weight：1.5t
• Certification：CE, ISO9001:2008
• Max. Extrusion Output (Kg/H)：20-40kg,H
• Main Motor：Siemens Brand
• Temperature Controller：Omron Brand
• Air Ring：Double Vent Air Ring
• Die Size(mm)：60,100 High Speed Type
• Inverter：LG Brand
• Transport Package：as Customer Require
• Specification：CE. SGS
• Trademark：YunBang
• Origin：China
• HS Code：8477309000
• Production Capacity：15 Sets,Month

Basic Info.

Model NO. SJ Machine Weight 1.5t Certification CE, ISO9001:2008 Max. Extrusion Output (Kg/H) 20-40kg/H Main Motor Siemens Brand Temperature Controller Omron Brand Air Ring Double Vent Air Ring Die Size(mm) 60/100 High Speed Type Inverter LG Brand Transport Package as Customer Require Specification CE. SGS Trademark YunBang Origin China HS Code 8477309000 Production Capacity 15 Sets/Month

Product Description

Its extruder, cylinder and screw rods are made of quality alloy steel that have been notarized and processed

in a precision way. Hence it is hard, durable in corrosion resistance. The specially-designed screw is quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like

low density polygene (LDPE), high density polygene(HDPE) and linear low density polygene (LLDPE).

It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.



Machine Advantages

1, We use stronger steel plate for machine body, which make machine more stable

2, Screw and barrel is nitrigened by 72 hours. 38 chromium materials,  it is very hard.  Bimetal Materials Taiwan Quality

3, Hard surface gearbox, the life can be more 10 years. GuoMao Brand

4, Motor with CE standard, more 10 years life, Siemens Brand.

5, Electric parts is CHINT, best supplier in China.

6, Easy to operate and one worker can run 3 sets

7,  Temperautre Controller:  Omron Brand

8,  Inverter:  LG Brand

9,  Ceramic Heater: Heating faster and Keep warm longer

Machine Parameters

Model	SJ-50/600	SJ-55/800	SJ-60/1000
Diameter of Screw	Φ50	Φ55	Φ60
Max. Width of Folded Film(mm)	100-600	200-800	300-1000
Single-face Thickness of Film(mm)	0.006-0.10	0.006-0.10	0.006-0.10
Max. Extrusion(kg/h)	60kg/h	70kg/h	80kg/h
L/D	30:1	30:1	30:1
Power of Main Motor(kw)	15	18.5	22
Power of Traction motor(kw)	1.1	1.5	1.5
Heating Power(kw)	13	15	21
Overall Dimensions(m)	4.8×1.9×4	5.5×2.1×4.2	6.5×2.3×4.5
Weight(kg)	2800	3000	3200

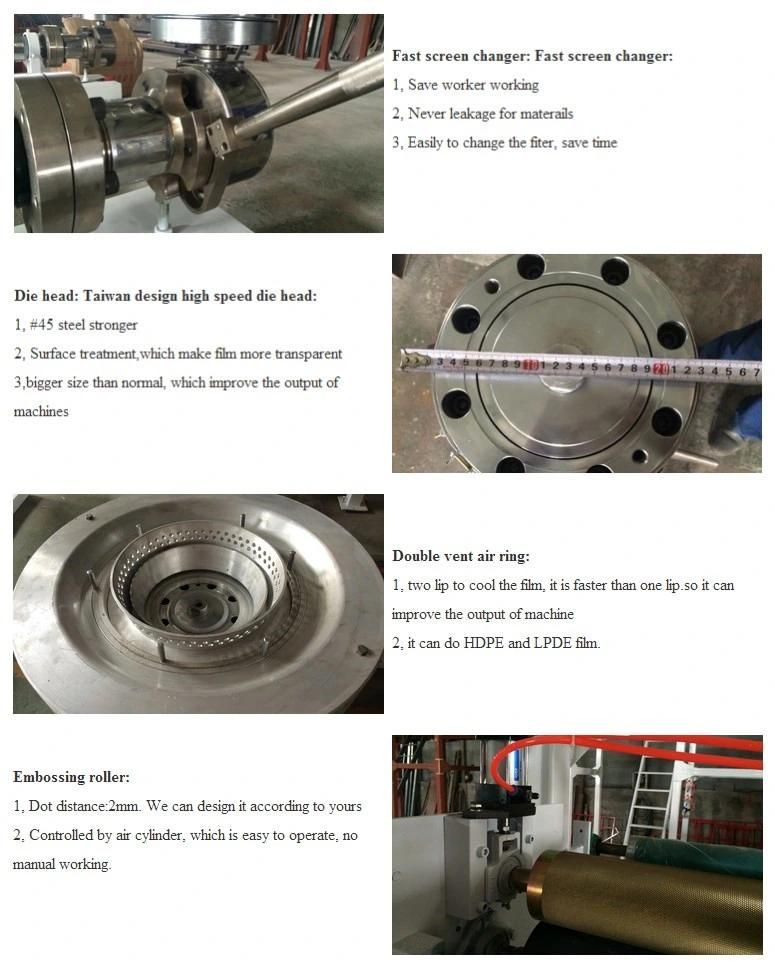

Machine Details
