• Output (Kg/H)：150 - 240 Kg,H
• Screw Design：Double-Screw
• Twin Screw Type：Counter-Rotating Conical Twin-Screw
• Screw Diameter (mm)：65 mm
• Screw Speed (Rpm)：1500
• Voltage：380V 50Hz 3phase(Customized)
• After-Sales Service Provided：Video Technical Support, Free Spare Parts, Field I
• After Warranty Serv：Video Technical Support, Online Support, Spare PAR
• Video Outgoing-Inspection：Provided
• Machinery Test Report：Provided
• Products Size：10-3000mm Width
• Production Line Speed：0.2-0.5m,Min
• Max. Output：150-200kg,H
• Transport Package：Standred Sea Packing
• Specification：20m*1m*3m
• Trademark：TONGSAN
• Origin：Shandong China
• HS Code：84772090
• Production Capacity：2sets, Month

Basic Info.

Output (Kg/H) 150 - 240 Kg/H Screw Design Double-Screw Twin Screw Type Counter-Rotating Conical Twin-Screw Screw Diameter (mm) 65 mm Screw Speed (Rpm) 1500 Voltage 380V 50Hz 3phase(Customized) After-Sales Service Provided Video Technical Support, Free Spare Parts, Field I After Warranty Serv Video Technical Support, Online Support, Spare PAR Video Outgoing-Inspection Provided Machinery Test Report Provided Products Size 10-3000mm Width Production Line Speed 0.2-0.5m/Min Max. Output 150-200kg/H Transport Package Standred Sea Packing Specification 20m*1m*3m Trademark TONGSAN Origin Shandong China HS Code 84772090 Production Capacity 2sets/ Month

Product Description

Our Products:

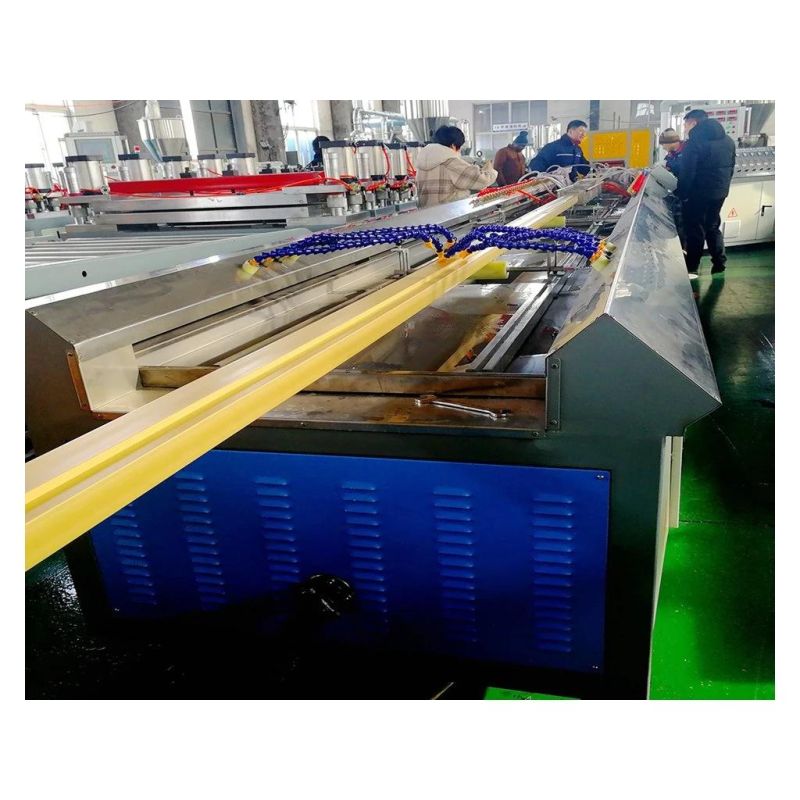

Description of PVC window and door profile extrusion machine,WPC solid door frame making machine

1, plastic pvc profiles extrusion line is specializing in producing PVC plastic profiles including doors and windows profiles, decorative plates, tiny foaming profiles and decorative plates.

2, pvc profile machine uses PVC powder as material to produce various sorts of the mentioned plastic profiles as profiles for doors and windows, decorative profiles, etc.

3, By Absorbing advanced technology from abroad, our company developed the large plastic profile extrusion line, which is equipped with conical double-screw extruder, and it possesses the advantages of high degree automation, stable performance, high output and efficiency, etc.

4, If change certain screw and mould, the pvc profile machine can directly extrude foaming profiles, and the effect is much better than that of single-screw.

5, pvc profile extrusion line is optimumly designed by referring to the latest overseas technology, it bears the features of even plasticization, low cutting rate, high output, and long lifespan, etc. And it composes conical double-screw extruder, vacuum sizing platform, tractor, cutting and film coating machine and material stirring bracket,etc.

6, The pvc profile machine is run by alternating current frequency controller or direct current controllable silicon. The temperature controlling instrument is introduced from abroad. In addition, the vacuum pump and traction engine of the auxiliary machines are quality products which can be maintained easily

7, To match with different moulds, the shape-fixing platform of 4m, 6m, 8m or 11m, etc. can be chosen accordingly. The main machine with parallel double-screw is especially suitable for high-speed extrusion of various kinds of profiles.


Model	SJSZ-51	SJSZ-65A	SJSZ-80	SJSZ-92
Total Power(kw)	25	64	115	168
Max profile with (mm)	200mm	400mm	900mm	1500
Profile products	electricity truck, house deractive line, small profiles	window and door profile, wall panel, ceiling panel	door panel, furniture panel	door panel, furniture panel

Be Our Client:




Why Choose Us?

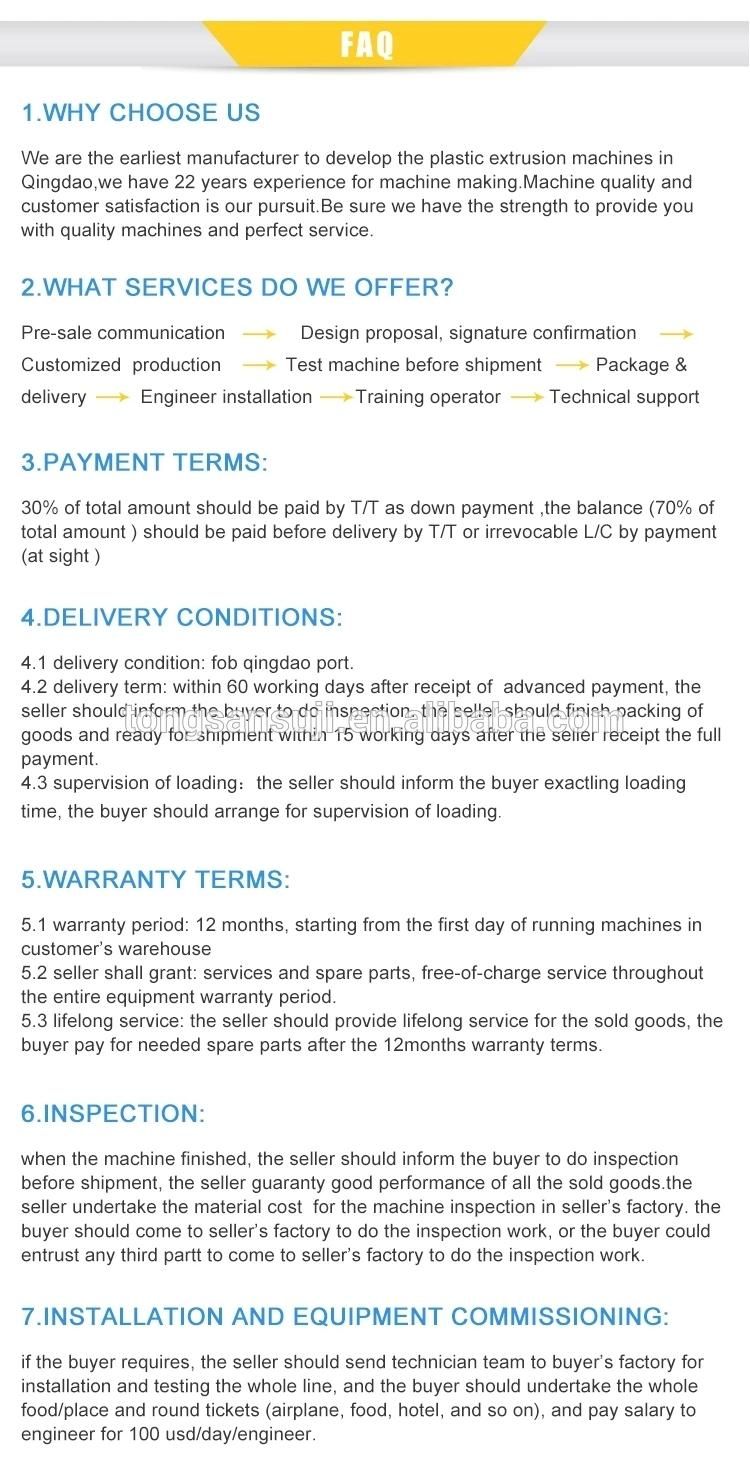

FAQ:



More questions please send the massage to me.^-^
Looking for hear from you.
