• Model NO.：SJSZ-80,156
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Dimension(L*W*H)：25*4*3.5m
• Certificates：Ce SGS ISO9001:2008
• Transport Package：Export Standard Packing
• Specification：SJSZ-80,156
• Trademark：Weier
• Origin：Qingdao, Shandong, China
• HS Code：84772090
• Production Capacity：10 Sets,Month

Basic Info.

Model NO. SJSZ-80/156 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Dimension(L*W*H) 25*4*3.5m Certificates Ce SGS ISO9001:2008 Transport Package Export Standard Packing Specification SJSZ-80/156 Trademark Weier Origin Qingdao, Shandong, China HS Code 84772090 Production Capacity 10 Sets/Month

Product Description

Video website  :http://cloud.video.taobao.com/play/u/1757949571/p/1/e/6/t/1/40504649.mp4
Specifications
PVC wave plate/glazed corrugated roof production line
1>Conical double screw extruder
2>high output
 We export our machines to about 40 countries,welcome to visit us.We aim to do long term business with our clients
Product description
It can continuously extrude single layer PVC glazed tile,PVC/PMMA/ASA composite multi-layer glazed tiles.The line has the advantage of high production efficiency,convenient operation and long lifespan,etc.
The glazed tiles are widely used for pavilions,hotel,resorts,family building places.

Wave plate has an excellent corrosion resistance, weather resistance, easy processing, low cost and many other characteristicsm abd is widely used for roof material of workshops, warehouses.

Process flow
Mixing raws-----main extruder for base layer-----co-extruder for top layer-----die mould &distributor-----two roller for embossing -----roof tile forming unit-----cutting unit-----stacker

Equipment list

1	Screw loader for SJZ 80/156 extruder	1SET
2	Conical twin screw extruder	1SET
3	Vacuum feeder and drying hopper	1SET
4	Single screw extruder(ASA layer)	1SET
5	Mold and distributor	1SET
6	Two roller embossing calendar	1SET
7	Temperature controller	1SET

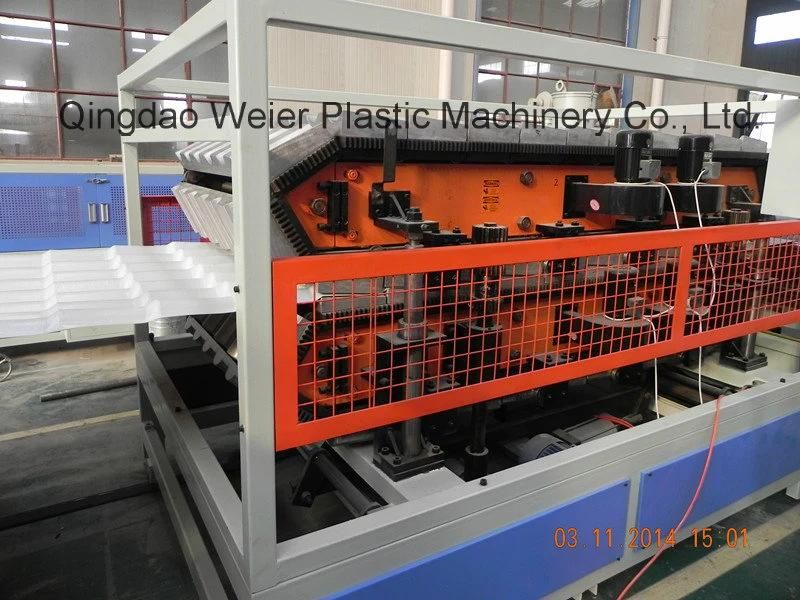

8	Roof forming unit	1SET

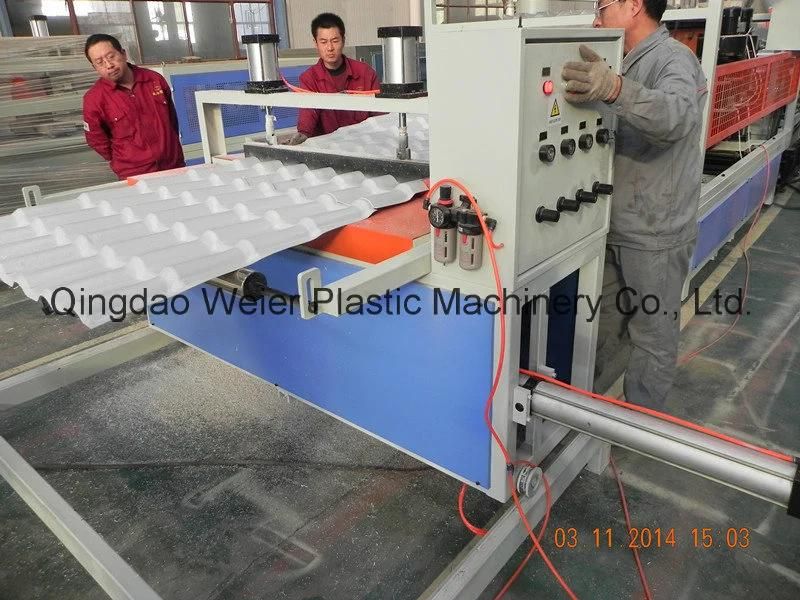

9	Cutting unit	1SET
10	Stacker	1SET

Auxiliary machines

1	Mixer	One set
2	Crusher	One set
3	Milling machine	One set

Parameters

Materials	PVC,ASA with different colors and some additives
Products width	880mm
Products thickness	1-5mm
Center meter	1100mm
Products color	decide by customer
Output	250-400kg/hr ;1000m2 per 24 hours
Line speed	0.3-2M/min
Operation direction	from right to left
Machine painting color	Weier standard color (If you have any special requirement,please notice us)

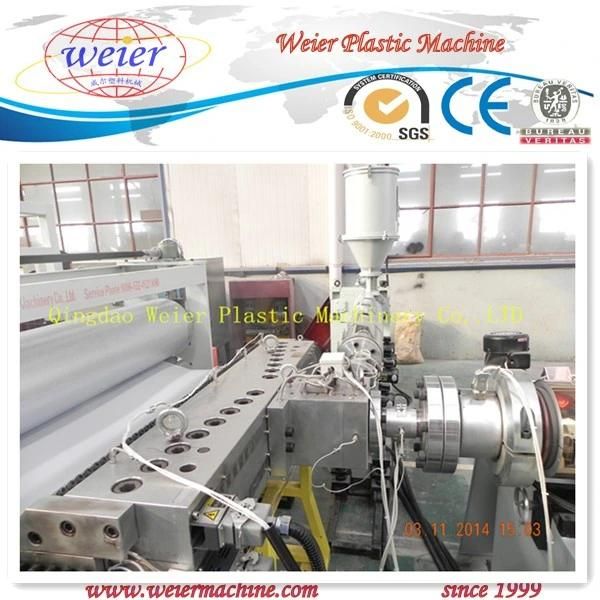

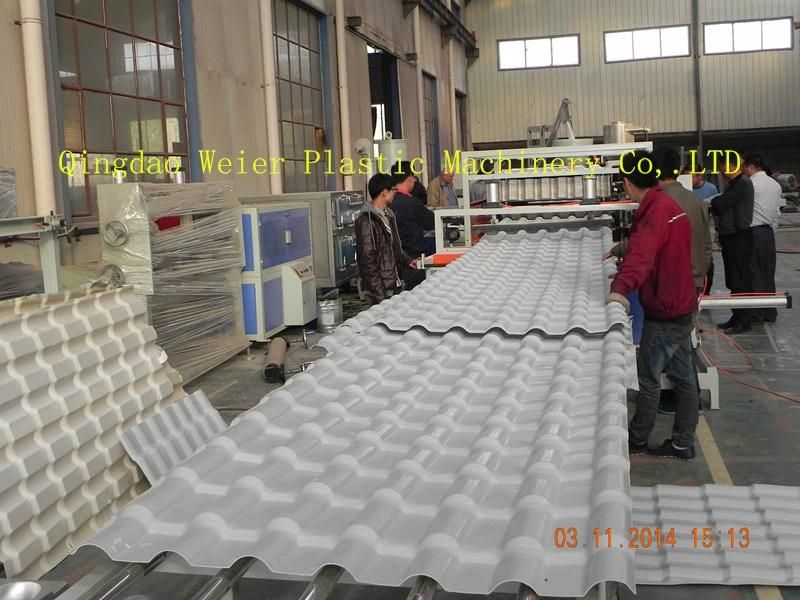

Machine pictures




Exhibition show

More details about our service

The supplier provide service manual and maintenance instruction of main electric appliance ,limb , usage manual of equipment We also supply water,electricity,gas of equipment and installation drawing.

The supplier is responsible for installation,debug and training, we will realize guarantee of repair; replacement of substandard products within one year. After the machine leaves factory. Fittings of the machine will supply at preferential price after one year .

The seller will send one or two technician to the buyer'plant  to debugging,and the tickets ,eating ,transportation and visa fee will bepaid by the buyer ,also including 50USD salary/person /day


If anyting intertst ,please contact us at  your best convenience,we can produce the overwhelming majority of plastic extrusion machines
