• Transport Package：Film and Wooden Carton
• Specification：SJZ80,156
• Trademark：ACEMIEN
• Origin：China
• Production Capacity：50 Pieces ,Year

Basic Info.

Transport Package Film and Wooden Carton Specification SJZ80/156 Trademark ACEMIEN Origin China Production Capacity 50 Pieces /Year

Product Description

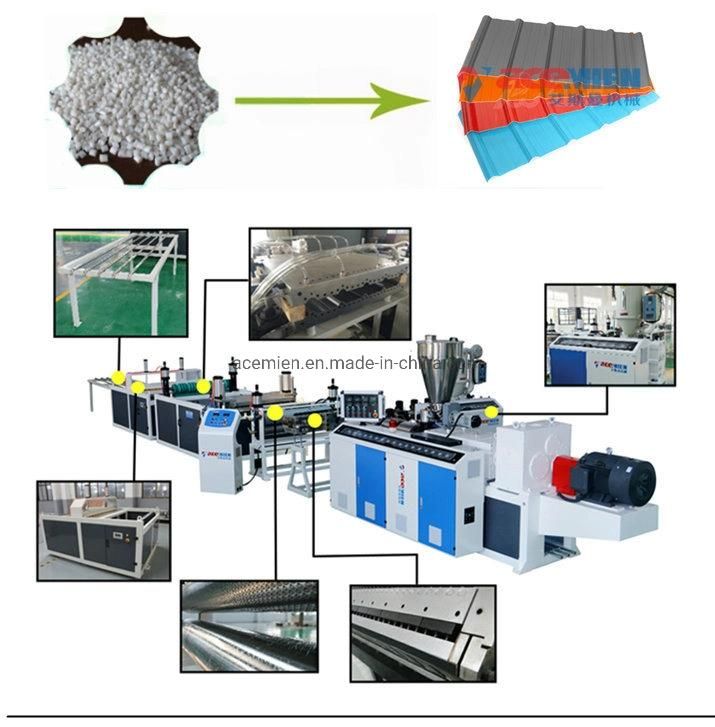

PVC+ASA Plastic Glazed Roofing tile machine

PVC+ASA plastic roof tile machine is designed based on 2 or 3 or 4 layer co-extrusion technology by one-time processing. It is an ideal building material for construction projects with heat insulation requirement. The following is a list of the distinct features of each layer material.

First layer:weather resistant resin is selected as the top layer material to block the solar ultraviolet radiation and reduce the coefficient of heat conductivity. It provides our UPVC roofing material with great durability and chemical corrosion resistance;

Second layer:the middle layer is a special foam structure with heat and sound insulation performances.

Third layer:the bottom layer of our heat insulated UPVC roof sheet adopts modified PVC material to offer optimum strength and rigidity.

Model no.	Product width(mm)	Product thickness(mm)	Product shape	Extruder power(KW)	Extrusion capacity(kg/h)
SJZ80/156	840-1130	1-4	Circular/trapezoid	55	350-400
SJZ92/188	1130-1340	1.5-4	Circular/trapezoid	110	600-700

No	Name	Number
1	Screw loader	1set

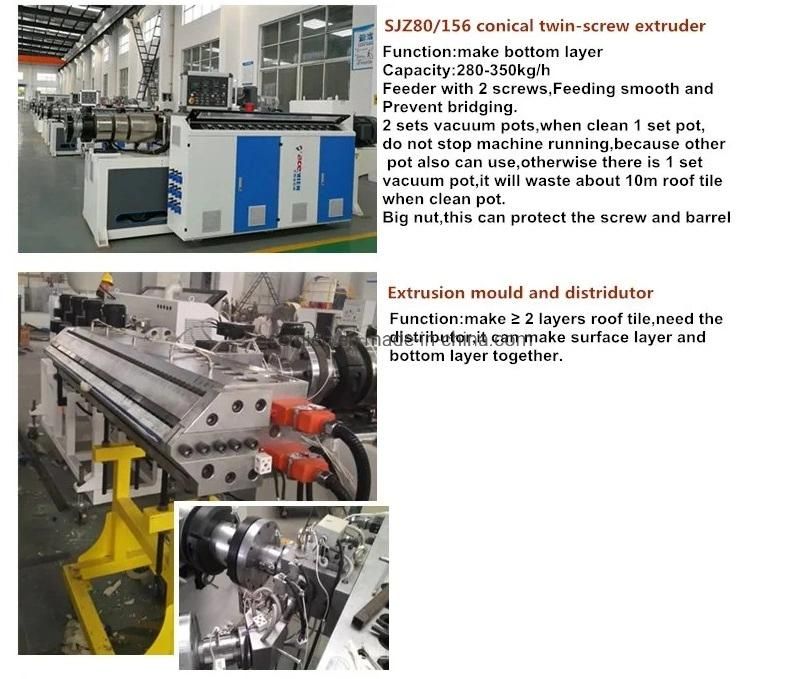

2	Conical twin screw extruderSJZ80/156	1set
3	Drying hopper	1set
4	Vacuum loader	1set
5	Single screw extruderSJZ50/30	1set
6	Mould	1set
7	Distributor	1set
8	Embossing roller	1set
9	Trimming device	1set
10	Forming machine	1set

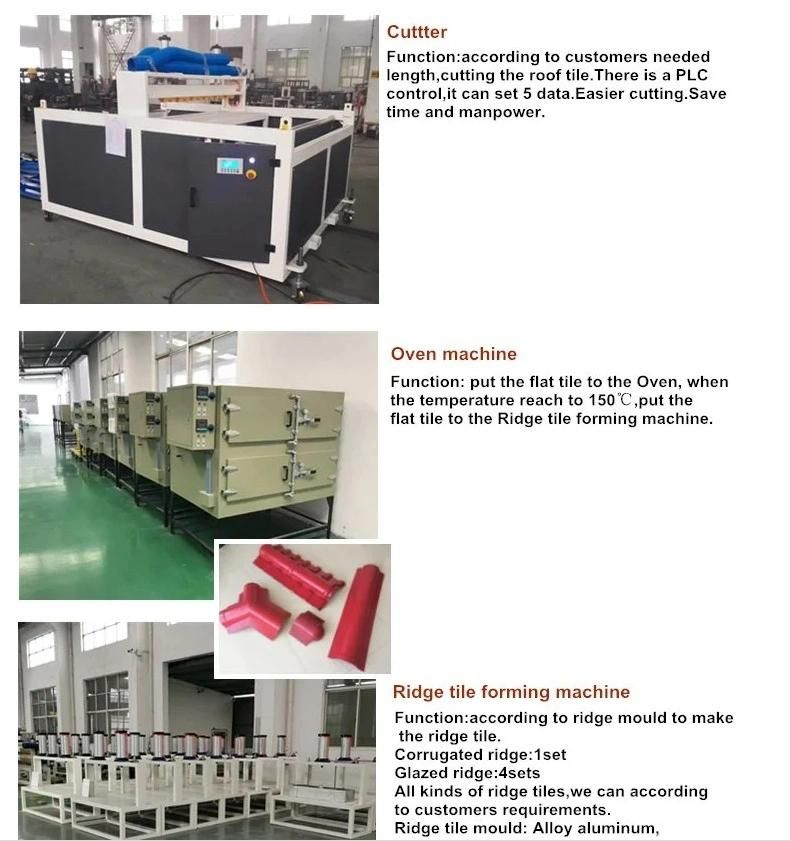

11	Cutter	1set
12	Stacker	1set
