• Model NO.：XDC-DGG-300B- Irrigation Pipe Making Machine
• Assembly Structure：Integral Type Extruder
• Screw：Single-Screw
• Engagement System：Non-Intermeshing
• Screw Channel Structure：Non Deep Screw
• Exhaust：Don′t Exhaust
• Automation：Automatic
• Computerized：Computerized
• Weight：20t
• Name：Drip Irrigation Flat Pipe Machine
• Electric：Siemens or ABB
• Keyword：Flat Drip Irrigation Pipe Making Machine
• Use Tage：Making Irrigation Pipe
• Pipe Diameter：320m High Speed Drip Irrigation Pipe PRO
• Full Automatic Punching：3 Sets Servo Punching Device
• Vacuum Calibrating Tank：6m
• Dripper Screening Speed：3000 Pieces,Min
• Max Speed：320m,Min
• Transport Package：Wooden Box Suitable for Sea Shipment and Export
• Specification：CE
• Trademark：XDC
• Origin：China
• HS Code：84778000
• Production Capacity：12sets,Year

Basic Info.

Model NO. XDC-DGG-300B- Irrigation Pipe Making Machine Assembly Structure Integral Type Extruder Screw Single-Screw Engagement System Non-Intermeshing Screw Channel Structure Non Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Weight 20t Name Drip Irrigation Flat Pipe Machine Electric Siemens or ABB Keyword Flat Drip Irrigation Pipe Making Machine Use Tage Making Irrigation Pipe Pipe Diameter 320m High Speed Drip Irrigation Pipe PRO Full Automatic Punching 3 Sets Servo Punching Device Vacuum Calibrating Tank 6m Dripper Screening Speed 3000 Pieces/Min Max Speed 320m/Min Transport Package Wooden Box Suitable for Sea Shipment and Export Specification CE Trademark XDC Origin China HS Code 84778000 Production Capacity 12sets/Year

Product Description

Thin-Wall High Speed Flat Drip Irrigation Pipe Production Line


Flat drip irrigation pipes; Has been introduced to serve our farmers for the protection of our water resources, to save from energy, pesticides and fertilizers and to obtain the highest productiveness from the plants and trees. Flat drop irrigation pipes can be used for all plants that can be planted in line, sugar beet, corn, potatoes, carrots, sunflowers, and all types of field plants and decorative plants.
It performs safely under high pressure because it has been built jointless and it is a durable type of pipe that can clean itself.
It works without any problems with its long dripper labyrinth.
It can be rolled safely and put together many times because of its durable dripper.
It has been produced with variable flow rate, dripper range and flesh thicknesses providing the system to be installed easily under various conditions.
Is has a longer extension distance comparing to others.
It has the most advanced technology in the present irrigation systems. The principal in the drop irrigation is to provide the daily water need of the plant in the type of drops by not causing a high demand for water for the plant. In other words it means the irrigation of the plant not the soil. The chemical fertilizer application can be performed to meet the nourishment requirement of the plant every day or every 2-3 days with the drop irrigation method. Thus, it is possible to gain an important amount of yield and quality.
Advantages:
Can be stored easily, does not require too much space.
The gain in yield can reach up to the rates of 50-100 % depending on the climate of the region.
Provides a shorter development period for the plant and provide early harvest.
Provides irrigation with low pressure and low flow rate water.
Provides irrigation of larger fields with less amount of water comparing to other irrigation systems.
The drips placed in the pipe with specific distances provide the plant with required amount of water with required pressure.

Thin-Wall High Speed Flat Drip Irrigation Pipe Production Line
Water does not leak deep and flow from the surface therefore there won't be loss of water...
It is the highest performing irrigation system in all irrigation systems.
Provides equal irrigation all around the field. It can be pulled to the long distances with its large scaled and special drippers. This specialty provides low main pipe cost.
Provides irrigation on the slopes without causing any erosion.
Provides irrigation in windy situations.
Technical parameter:

Item	Pipe diameter	Pipe thickness	Production speed	Distance of dripper
Flat dripper irrigation pipe production line	Φ12-16-20mm	0.12-0.9 mm	200-320m/min	100150200300400500-1500mm

Product description:
Drip irrigation pipe machine is a high-speed production equipment of thin-wall drip irrigation pipe independently developed by XINDACHENG. "ZEANON" is an independent brand developed by Qingdao Xindacheng together with European well-known drip line manufacturer. Zeanon products cover all aspects of the drip irrigation field, including water-saving irrigation technology & machinery, engineering design, drip products and drip irrigation pipe machine.
1. Dripper feeder device: double sets. Dripper feeding speed: 3000pcs/min.
2. Have dripper buffer device, make sure non-stop machinery even if happen bad quality dripper block on feeder.
3. Extruder: Servo direct drive, save power.

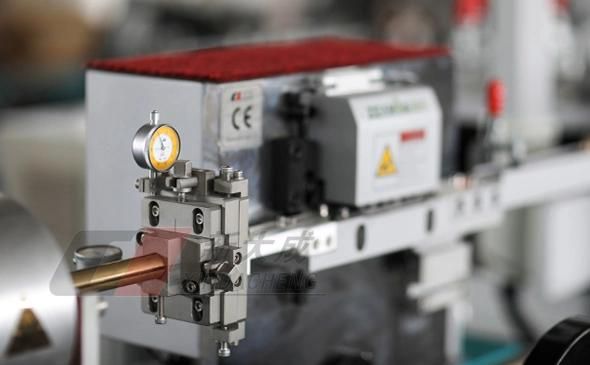

4. Extruder die head & calibrating: Germany technology, thickness adjustable.
5. Configuration: One-button automatic pipe-holding dripper insert device.
6. Irrigation pipe accumulator: equipped with the most advanced European parallel accumulator device.
7. Automatic drilling device: 3 units. speed: 3000times/min.
8. Configure online automatic imaging analysis and monitoring punching system: monitor the punching status, realize the error automatic alarm function, and ensure the product punching rate.
9. Line speed: 320m/min, it is the fastest production efficiency in the world.

* dripper space 100mm, speed: 300m/min.
* dripper space 200mm, speed: 320m/min.
* dripper space 300mm, speed: 320m/min.

Feature 1:

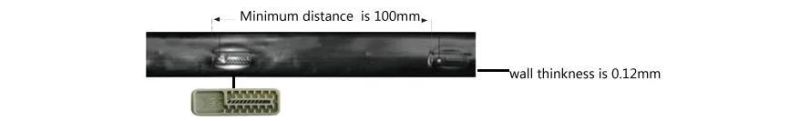

Zeanon irrigation pipe weights less than 7g/m,Reduce 30% material which will largely save cost.


Feature 2:
• Configured with advanced dripper buffer and insertion unit (Europe technology)
• Insert 3000 pieces of dripper per minute.


Feature 3:
• Advanced dripper,weights only 0.1g/pcs(China exclusive agent).
• Qingdao Xindacheng import from Europe, China exclusive agent.
• High efficient inner irrigation pipe dripper adopted high efficient injection mold technology.
• All produced in Europe, to make sure of the quality.



Feature 4:

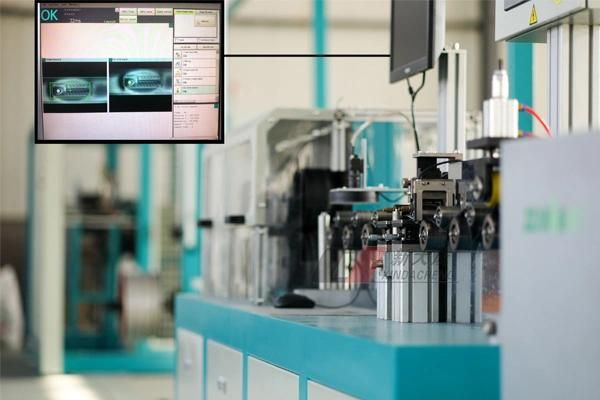

• Double Auto Punching Unit(3 unit)--leading technology in the world;
• Punching device fixed with online monitor & picture indentify system, store the punching system;
• Auto alarm for wrong punching, it is controlled by PLC system;
• Tracking and adjust the punching system in time.



Feature 5:

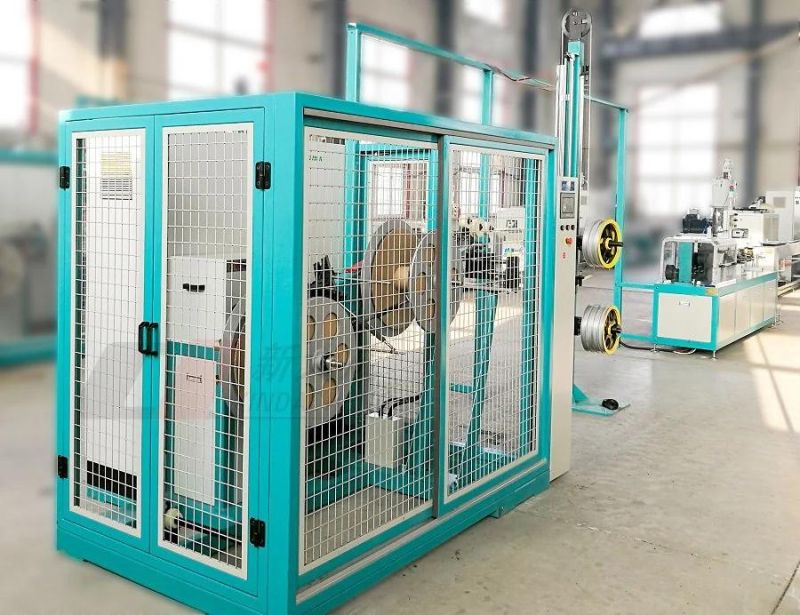

• Auto winder + Accumulator device
• This is an important part of the drip irrigation pipe machine.
• It is drived by servo motor.
• Automatically wind the dripper irrigation pipe.
• Controlled by PLC system.

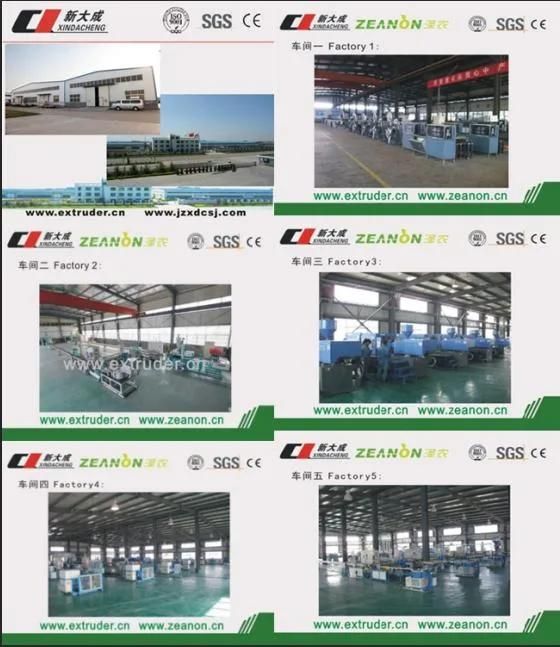

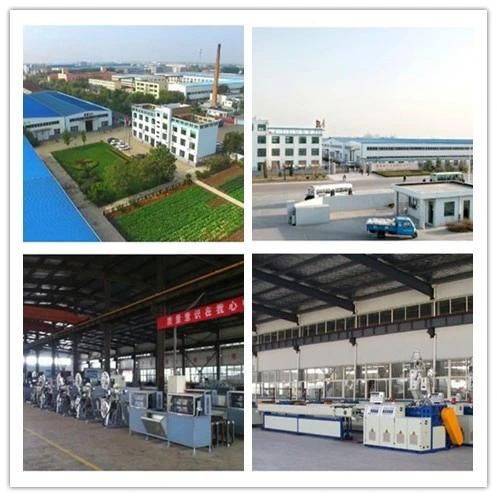

Company informations:
Qingdao Xindacheng Plastic Machinery Co., Ltd., a high-tech join-stock enterprise, integrates scientific research development, technology transfer, production and sale. In addition, it is the unit for accomplishing key promotion projects of science and technology result in construction department.
The company mainly engages in research, development, design, manufacture and sales service of new type plastic machinery, is able to provide "Turn-key project" of complete set of production line for many plastic product. It owns powerful technology strength, gathers professional scientific and research talents in top grade macromolecule material national wide, polymer processing, industrial automatization and marketing. Besides, it keeps closely contact with chemical design research institute and universities, so it is familiar with market trend and is able to transfer the latest science and technology achievements in the fastest speed so that to provide whole set of technology such as the most competitive equipment, technology and relevant technology consultation service.
Oriented by human, Xindacheng considers that the innovation and credit is the most important. It will offer first-class product and considerate service to help you in accomplishing great business and cooperate with together to create new era in plastic machinery industry.
Xindacheng always considers that customers' interest is the first important. Over decades, Xindacheng's product spreads all over the country and exported to more than 40 countries and regions such as, U.S. Italy, Canada, South Korea, Japan, Russia, Ukraine, Czech, Turkey, Mexico, Iran, Saudi Arabia, Egypt, Indonesia, Singapore, Taiwan, HK, Malaysia, and wins customers' reputations.
Company board chairman and staff warmly welcome friends from all circles to visit us.




Why choose XINDACHENG?
• We supply all the technical support, such as engineers, drawings, and instruction manual.
• We send one or more than one engineers to client for installing and adjust all the machinery.
• Buyer also can sent workers to our workshop for learning how to conduct Plastic extruder.
• Supply formula guide service and staple raw material purchase.
• We could supply the Feasibility Analysis Report for the project.
• We could supply turnkey project to you.
• We have good reputation from our customers both at home and abroad.

Certificate:



FAQ:
Q: Where is your factory? How can I get there?
Way 1: you take the train to Gaomi station (Weifang City), we will pick you up. It's only 30 minutes from our factory to Gaomi station.
Mode 2: take a plane to Liuting International Airport (Qingdao), we will meet you, 40 minutes from the factory to the airport.

Q: how is your factory doing in quality control?
A: the electrical part has cooperated with famous foreign brands such as Yaskawa, Siemens, NSK, Delta, Panasonic, etc. the other part comes from domestic high-quality manufacturers and will be tested before delivery.

Q: is there any overseas service?
A: Yes, we have an experienced service team. Each team member has gone abroad many times and has rich experience in machine installation. But the buyer needs to provide air tickets, food, hotel fees, etc.

Q: how does your company provide after-sales service?
A: all machines purchased from our company are provided with a one-year warranty period (except for human errors). We will supply some spare parts for replacement at the time of delivery. In case of damage to machine parts in the warehouse, we will send you free parts by express as soon as possible.
