1500kg/H Used Plastic Cleaning Recycling Line
Zhejiang Boretech Environmental Engineering Co., Ltd.- Capacity：1500kg,H
- Material：Cc&CS
- Transport Package：Film,Wooded Case,Regular Seaworthy Packing,Ect.
- Specification：1500 KG,H
- Trademark：BORETECH
- Origin：China
Base Info
- Model NO.：TL1500
- HS Code：8477800000
- Production Capacity：10 Sets Per Year
Description
Estimated Plant Parameters Input Capacity
(kg/h) Required Area
(m2) Installed Power
(Kw) Required Water
(kg/h) Required Steam
(kg/h) Requied Compressed Air(m3/min) Manpower 1500 1500 600 2.25 700 3.5 5 3000 2000 900 4.5 1300 6.5 7 6000 3000 1000 9 2300 12 11 9000 4500 1600 14 3200 20 16 Capacity
(kg/h) Electricity Consumption
(KWh) Steam
(kg) Washing Detergent
(kg) Water Consumption
(ton) 1500 170 550 12 1.5 3000 160 500 12 1.5 6000 150 450 12 1.5 9000 145 400 10 1.5
Fiber Grade PET Bottle Recycling Line
Estimated Plant ParametersInput Capacity
(kg/h) Required Area
(m2) Installed Power
(Kw) Required Water
(kg/h) Required Steam
(kg/h) Requied Compressed Air(m3/min) Manpower 500 800 170 0.75 200 0.5 8 1500 1200 400 2.25 700 0.5 12 3000 1800 600 4.5 1300 0.7 18 6000 2800 900 9 2300 1 30 9000 4200 1400 14 3200 1.5 40 Input
Capacity
(kg/h) Electricity Consumption
(KWh) Steam
(kg) Washing Detergent
(kg) Water Consumption
(ton) 500 140 550 6 1.5 1500 130 500 8 1.5 3000 120 450 8 1.5 6000 100 400 8 1.5 9000 95 350 8 1.5

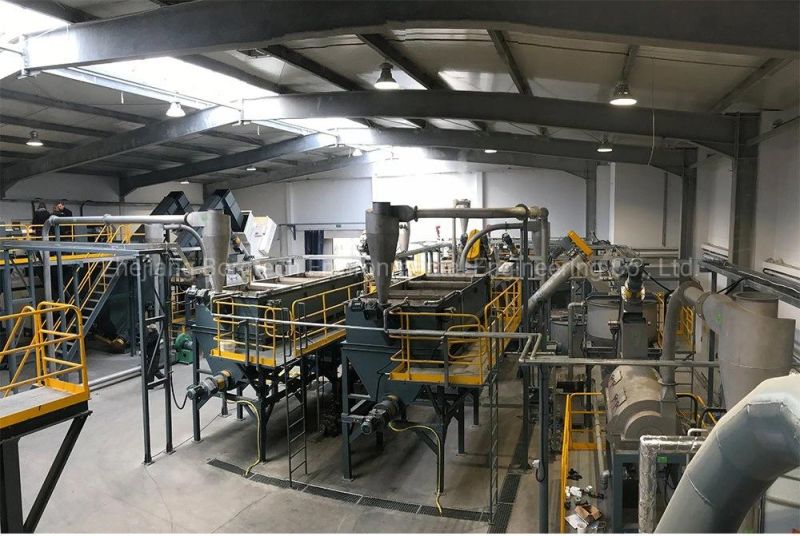

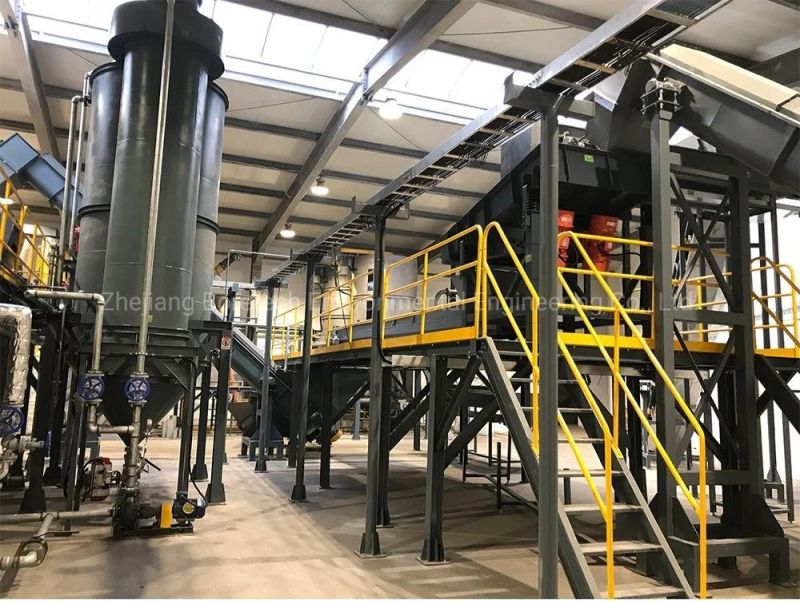

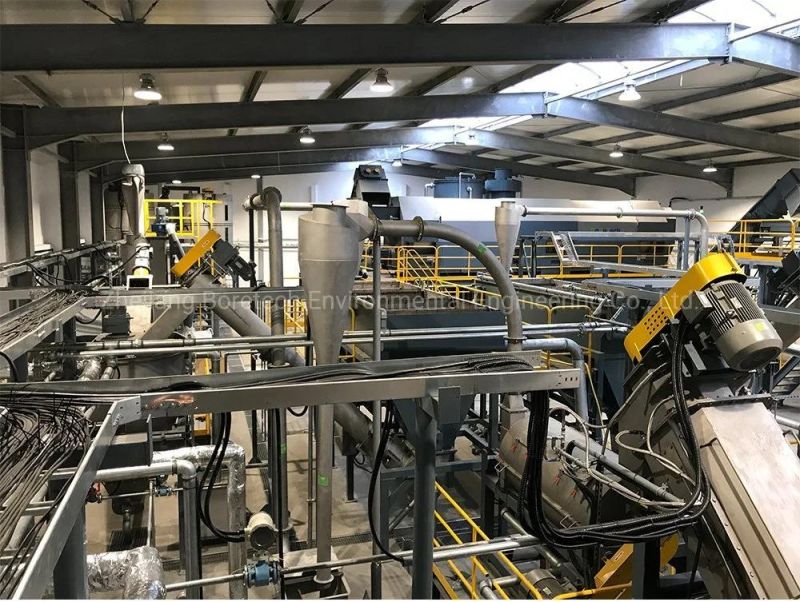

Project Show
1,pre-sale support:
Normally we suggest you paint our standard color , but we can supply customization paint service by paid.
2,after-sale service:
Warranty:1 year for machinery,6 months for electrical.
For mechanical parts, our guarantee duration is 12 months. If the part is broken within this period, we will send the spare parts immediately to the client for repairing.
3,technical support:
Normally, we send our engineer(s) to supervise the installation and commissioning. The buyer need to prepare the operation staff to implement it. BORETECH is able to send mechanical engineer, electrical engineer and operation engineer. The operation engineer is to help the buyer's labors to know how to operate the washing line and get the best efficiency.
BoReTech is one of the major supplier of PET bottle recycling system in Asia . We uses the around 30 years of fiber making and bottle recycling experiences to manufacture PET Bottle recycling machine and configure Pelletizing line, Polyester Staple Fiber line, POY line and Bottle to Bottle Line. At present, we have supplied about 170 sets plant for more than 30 countries. Our customers in the US, Japan, EU manufacture food grade rPET resin for such well-known brand owner's such as Coca Cola, Niagara Bottling, Nestle, etc.
Boretech can help our customers to make right configuration of the machinery, and find the right position in the industries. The most important value is that we can help our customers to minimize the learning cost and to avoid making any mistake during investment.
FAQ Q:How do you assistant to install the machine on worksite?
A: Normally, we send our engineer(s) to supervise the installation and commissioning. The buyer need to prepare the operation staff to implement it. BORETECH is able to send mechanical engineer, electrical engineer and operation engineer. The operation engineer is to help the buyer's labors to know how to operate the washing line and get the best efficiency.
Q:What do you guarantee on China local brand for bearing and gearbox?
A:For mechanical parts, our guarantee duration is 12 months. If the part is broken within this period, we will send the spare parts immediately to the client for repairing.
Q:Can I use machine with different color?
A: Normally we suggest you paint our standard color , but we can supply customization paint service by paid.
Q:What about packaging and transshipment?
A: It depends on capacity and equipment selection. For example, the line with 3 ton/h input capacity, there will be 15x40'HQ containers from China, and 1x40'HQ container from Taiwan. The crusher and crusher blade are made in Taiwan with excellent quality. For some special case, if the client requests the batch type bottle prewashing machine, we will need one flat rack for loading that.
Q:What is the delivery of the line?
A: 3~4 months after receipt of the down payment and L/C.
Q: How far is your factory from Shanghai?
A: It takes 1~1.5 hours from Shanghai airport to Boretech according to traffic situation.
(kg/h)
(m2)
(Kw)
(kg/h)
(kg/h)
(kg/h)
(KWh)
(kg)
(kg)
(ton)
- The above parameters are calculated based on the standard contiguartion;PET bottle material composition and factory management level will affect actual consumption.
- Water consumption parameters are calculated based on using wastewater reuse system.
Fiber Grade PET Bottle Recycling Line
Estimated Plant Parameters
(kg/h)
(m2)
(Kw)
(kg/h)
(kg/h)
Capacity
(kg/h)
(KWh)
(kg)
(kg)
(ton)
- The above parameters are calculated based on the standard contiguartion;PET bottle material composition and factory management level will affect actual consumption.
- Water consumption parameters are calculated based on using wastewater reuse system.
Project Show
1,pre-sale support:
Normally we suggest you paint our standard color , but we can supply customization paint service by paid.
2,after-sale service:
Warranty:1 year for machinery,6 months for electrical.
For mechanical parts, our guarantee duration is 12 months. If the part is broken within this period, we will send the spare parts immediately to the client for repairing.
3,technical support:
Normally, we send our engineer(s) to supervise the installation and commissioning. The buyer need to prepare the operation staff to implement it. BORETECH is able to send mechanical engineer, electrical engineer and operation engineer. The operation engineer is to help the buyer's labors to know how to operate the washing line and get the best efficiency.
BoReTech is one of the major supplier of PET bottle recycling system in Asia . We uses the around 30 years of fiber making and bottle recycling experiences to manufacture PET Bottle recycling machine and configure Pelletizing line, Polyester Staple Fiber line, POY line and Bottle to Bottle Line. At present, we have supplied about 170 sets plant for more than 30 countries. Our customers in the US, Japan, EU manufacture food grade rPET resin for such well-known brand owner's such as Coca Cola, Niagara Bottling, Nestle, etc.
Boretech can help our customers to make right configuration of the machinery, and find the right position in the industries. The most important value is that we can help our customers to minimize the learning cost and to avoid making any mistake during investment.
FAQ Q:How do you assistant to install the machine on worksite?
A: Normally, we send our engineer(s) to supervise the installation and commissioning. The buyer need to prepare the operation staff to implement it. BORETECH is able to send mechanical engineer, electrical engineer and operation engineer. The operation engineer is to help the buyer's labors to know how to operate the washing line and get the best efficiency.
Q:What do you guarantee on China local brand for bearing and gearbox?
A:For mechanical parts, our guarantee duration is 12 months. If the part is broken within this period, we will send the spare parts immediately to the client for repairing.
Q:Can I use machine with different color?
A: Normally we suggest you paint our standard color , but we can supply customization paint service by paid.
Q:What about packaging and transshipment?
A: It depends on capacity and equipment selection. For example, the line with 3 ton/h input capacity, there will be 15x40'HQ containers from China, and 1x40'HQ container from Taiwan. The crusher and crusher blade are made in Taiwan with excellent quality. For some special case, if the client requests the batch type bottle prewashing machine, we will need one flat rack for loading that.
Q:What is the delivery of the line?
A: 3~4 months after receipt of the down payment and L/C.
Q: How far is your factory from Shanghai?
A: It takes 1~1.5 hours from Shanghai airport to Boretech according to traffic situation.
