• Model NO.：ABLD100
• Screw Diameter：100mm
• Delivery Time：70days
• Machine Lifespan：>20 Years
• Weight：22.5 Tons
• Guarantee Time：1 Year
• Condition：New
• Power(W)：108 Kw
• Voltage：Customer Specified
• Company Attribute：Manufacturer
• After-Sales Service Provided：Engineers Available to Service Machines Overseas
• Heating Zone with Cooling Fan：6 Zone
• Drive Motor：45kw
• Screw Speed：15~50r.p.m.
• L/D Ratio：24:1
• Clamping Force：780 Kn
• Transport Package：Film Packing
• Specification：ABLD100
• Trademark：Dawson
• Origin：Zhangjiagang, Jiangsu, China
• HS Code：8477301000
• Production Capacity：up to Product

Basic Info.

Model NO. ABLD100 Screw Diameter 100mm Delivery Time 70days Machine Lifespan >20 Years Weight 22.5 Tons Guarantee Time 1 Year Condition New Power(W) 108 Kw Voltage Customer Specified Company Attribute Manufacturer After-Sales Service Provided Engineers Available to Service Machines Overseas Heating Zone with Cooling Fan 6 Zone Drive Motor 45kw Screw Speed 15~50r.p.m. L/D Ratio 24:1 Clamping Force 780 Kn Transport Package Film Packing Specification ABLD100 Trademark Dawson Origin Zhangjiagang, Jiangsu, China HS Code 8477301000 Production Capacity up to Product

Product Description

DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***

Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

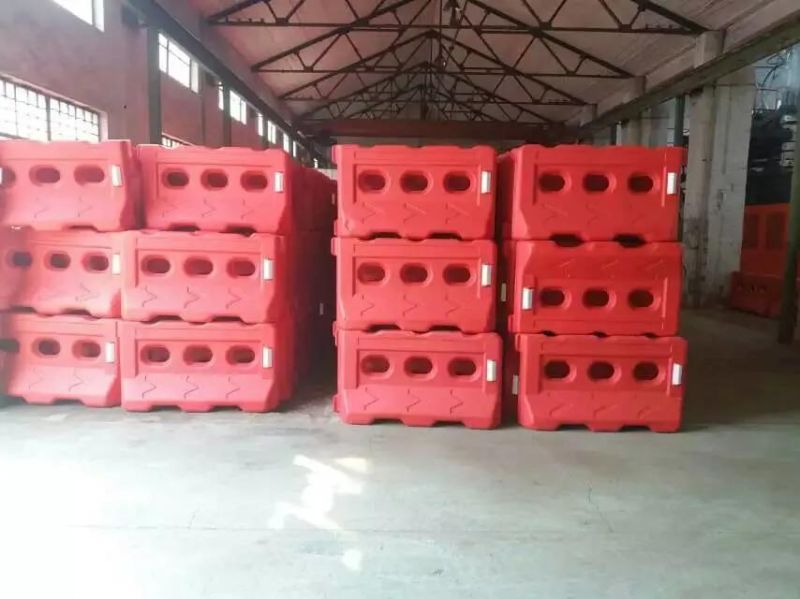

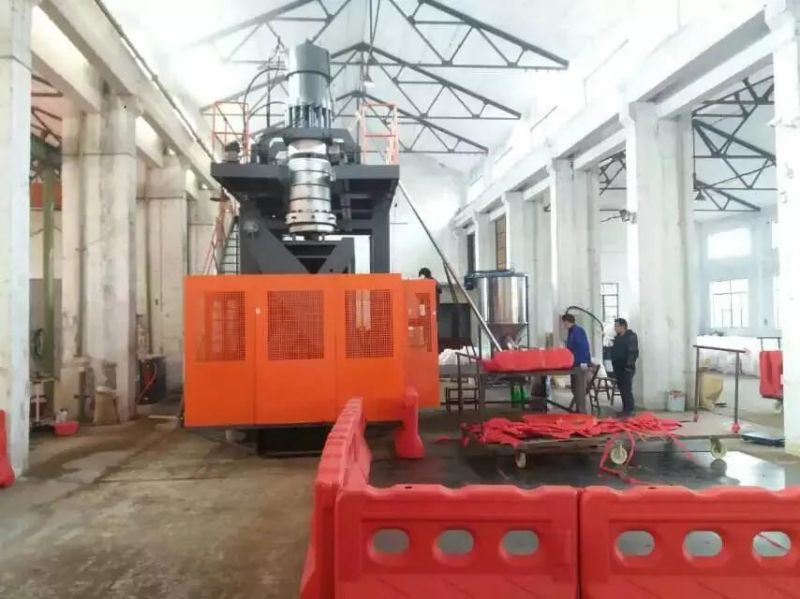

 This type of blow molding machine ABLD100 can produce plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 120L. The machine is especially designed for producing  PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available.
Single station single die head design, very easy to operate and maintenance.)Most components of the blow moulding machine are from famous world brand.Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
The main components of the machine. ( ABLD100 )

electronic parts
Name	Trader
Micro computer control system	Japanese MITSUBISHI
Temperature Controller	TAIWAN YANHUA  PID
Auxiliary Relay	OMRON
contactor	Schneider from France
Electric motor	Three phase 220V or 380V
Power Source	TAIWAN MEANWELL
Transducer	TAIDA FROM CHINA
hydraulic parts
Name	Trader
Oil pump	TAIWAN HIGH-TECH
Valve	TAIWAN JINSHUN
Oil pump and connection	TAIWAN JINSHUN
Sealed part	HALLITE
air control system
Name	Trader
Cylinder	AIRTAC
Air Valve	FESTO

Technical Parameters: ( ABLD100)
