• Model NO.：BF-4000CS
• Warranty：1 Year
• Productivity：High
• Power(W)：40kw
• Dimension(L*W*H)：17*9*5.4m
• Weight：20 Ton
• Transport Package：Naked with Plastic Strap
• Trademark：BENFAN
• Origin：Zhejiang, China (Mainland)
• HS Code：8477401000
• Production Capacity：100 Sets,Year

Basic Info.

Model NO. BF-4000CS Warranty 1 Year Productivity High Power(W) 40kw Dimension(L*W*H) 17*9*5.4m Weight 20 Ton Transport Package Naked with Plastic Strap Trademark BENFAN Origin Zhejiang, China (Mainland) HS Code 8477401000 Production Capacity 100 Sets/Year

Product Description

Product Introduction

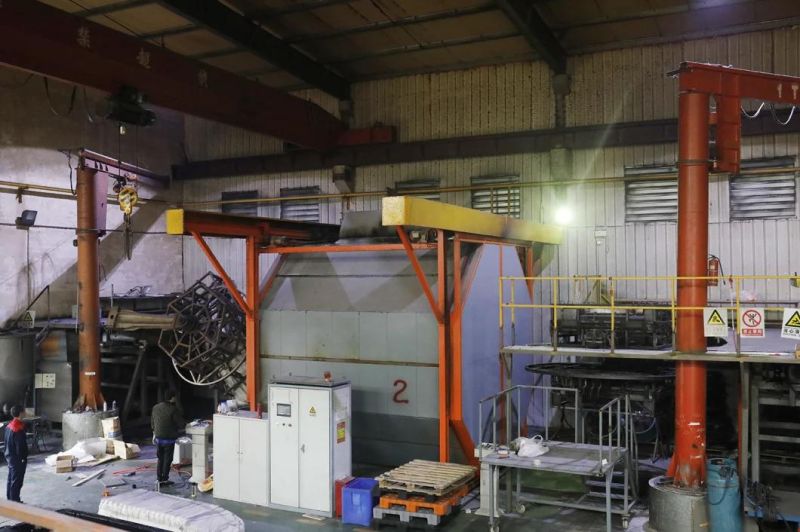

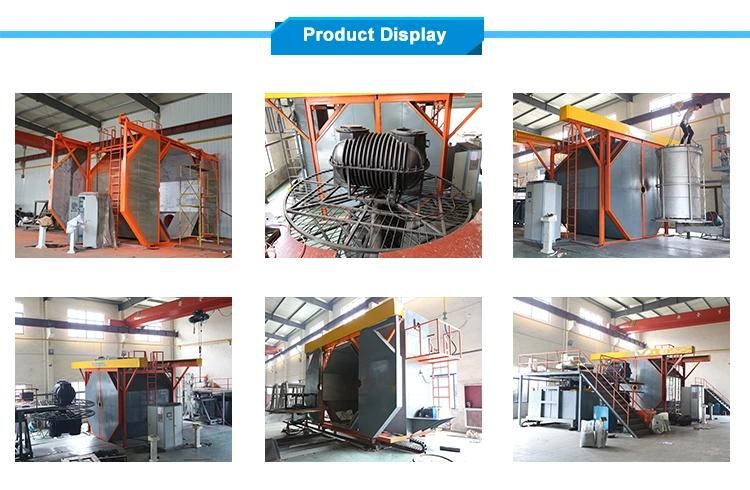

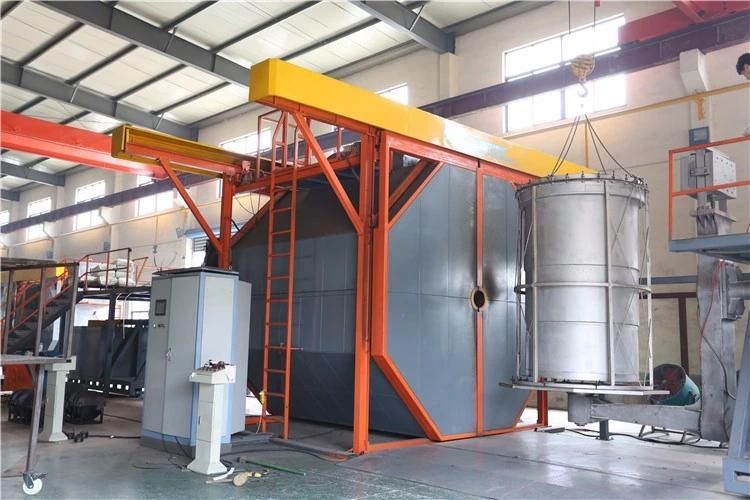

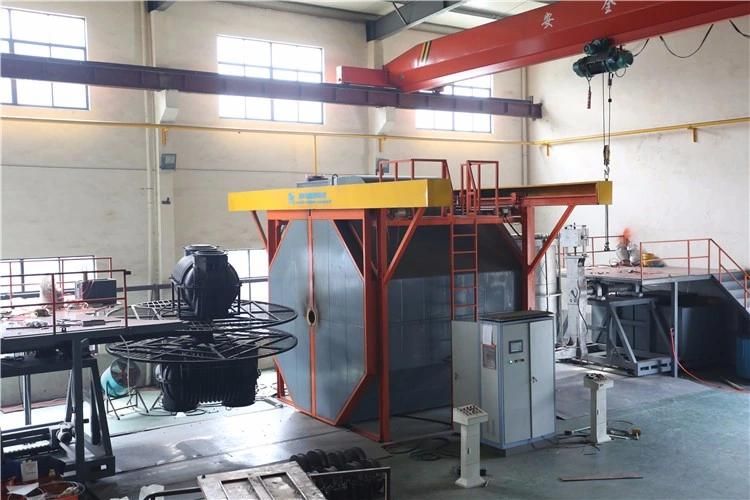

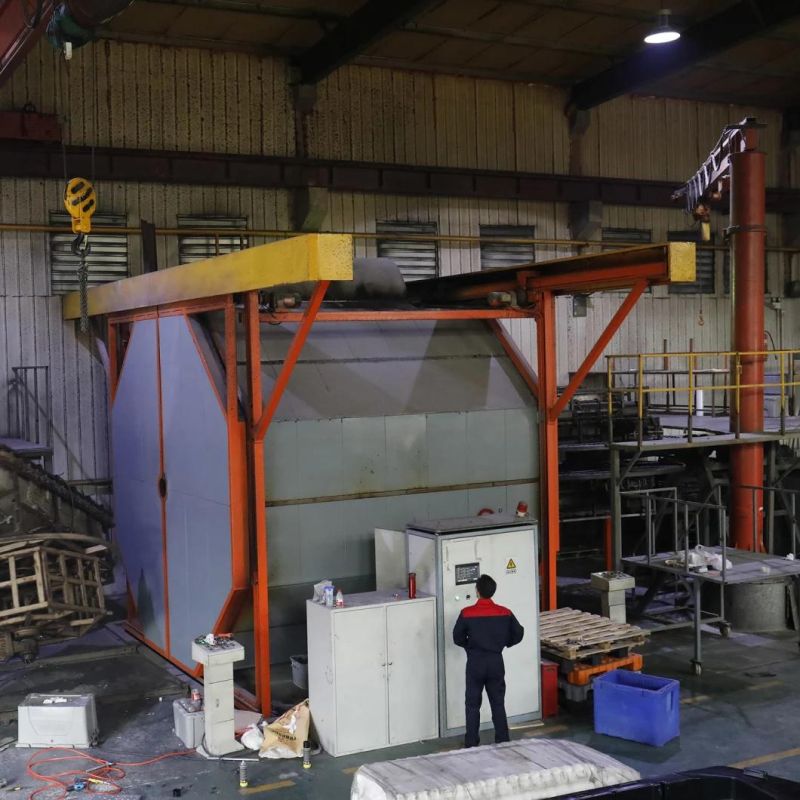

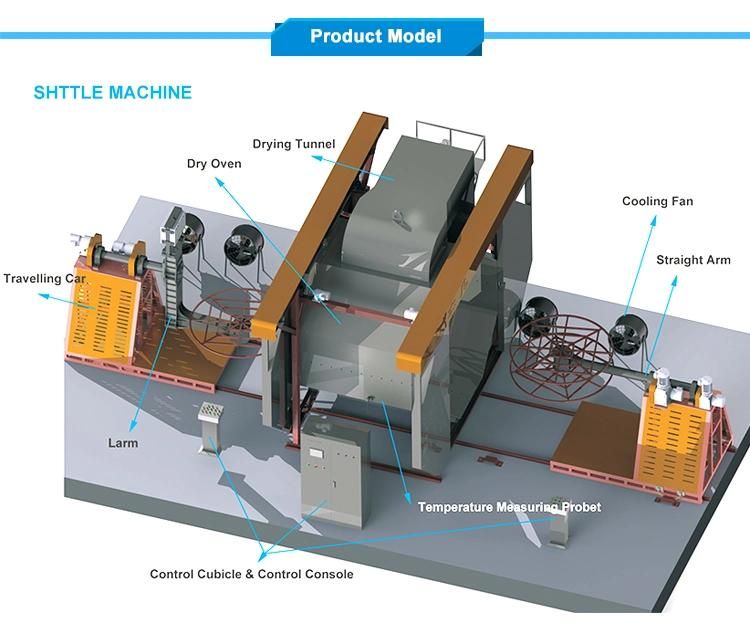

Shuttle style rotational molding machine is placed along a straight line with oven and two mainframes in its center. Cooling chamber and loading station in both sides. When one arm on one side rotating the mold into the oven to get heated, the molds on other arm can be demoulded or adding material.

In this way, the operation is flexiable for manufacturing comparatively large product. Even for comparatively small product, productivity is high. Besides, equipment is relatively simple and easy to be maintained. At present, this kind of rotational molding machine is broadly used in our country.

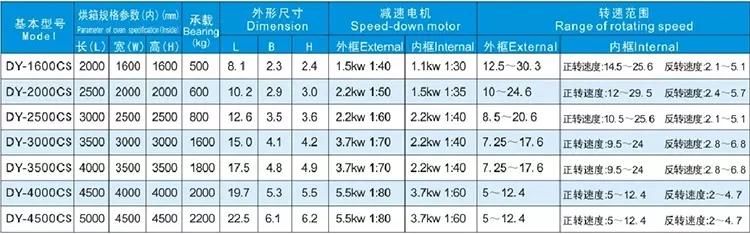

Technical parameters

Benfan rotomolding machine advantage:

1.    It only takes 3mins. from room temperature increase to 250 to 280 degree in oven

2.    Arm is made of special alloy material which is good load

3.    Full gear transmission, high efficiency

4.    Full automatic operation

5.    Heavy duty oven and energy saving

6.    Loading and unloading easy for mould

7.    Special deep cavity heating technical, suitable for complicated product

8.    Internet remote control (if the machine has problem in your factory, we can solve the problem through internet)

9.   PLC and Motors are Siemens brand from German,Burner is RIELLO from Italy,Bearing is NSK from Japan, all electrial compenents are using Schneider brand.

10.  Big computer screen, bob-weight system, special made motor, thermostability sealing arm head etc

11.  Use circle oven, it is more uniform heat distribution on the mold, that means it is good for product making and also more energy saving.
