High-End Cable Sheathing Line Machine/Cable Making Machine for Sheath of Cat5 CAT6 Cat7
Dongguan Zhaohong Wire & Cable Machinery Co., Ltd.- Type：Cable Extruder
- Plastic Processed：PVC
- Product Type：Granulating Extruder
- Feeding Mode：One Feed
- Assembly Structure：Integral Type Extruder
- Screw：Single-Screw
Base Info
- Model NO.：ZH-70SE
- Engagement System：Full Intermeshing
- Screw Channel Structure：Deep Screw
- Exhaust：Exhaust
- Automation：Automatic
- Computerized：Computerized
- Speciality：High Speed
- Motor：Germany-Siemens
- Inverter：Germany-Siemens
- Bearing：Japan-NSK
- Control System：Sychronization
- Electric Element：Siemens and Schneider
- Maintance：1 Year
- Transport Package：Wood Package
- Specification：BV
- Trademark：ZH
- Origin：Dongguan, China
- HS Code：8477900000
Description
Basic Info.
Model NO. ZH-70SE Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Speciality High Speed Motor Germany-Siemens Inverter Germany-Siemens Bearing Japan-NSK Control System Sychronization Electric Element Siemens and Schneider Maintance 1 Year Transport Package Wood Package Specification BV Trademark ZH Origin Dongguan, China HS Code 8477900000Product Description

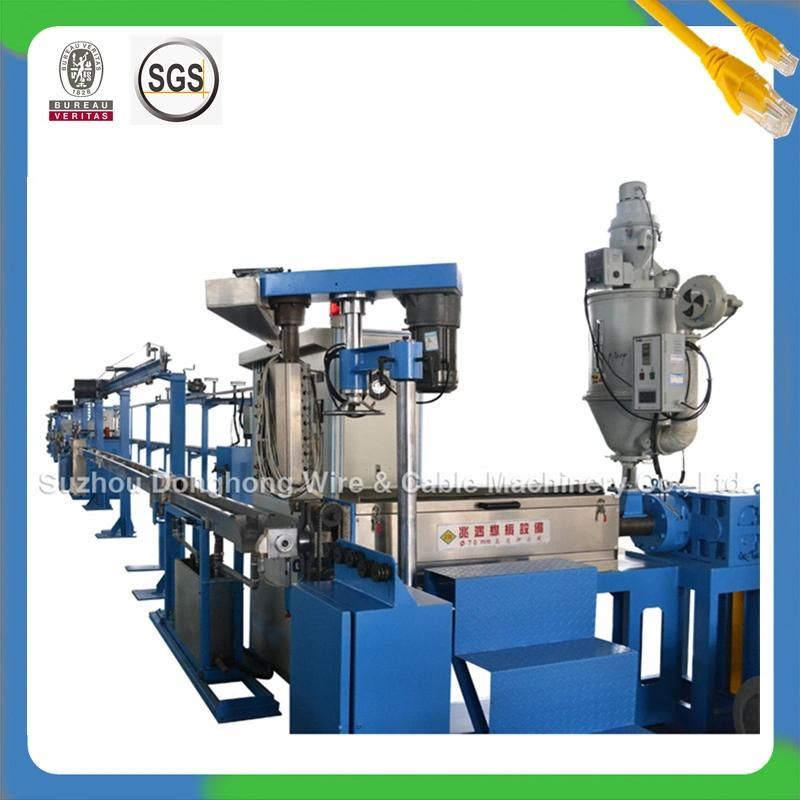

High-end Cable Sheathing Line Machine/Cable Making Machine for Sheath of CAT5 CAT6 CAT7
Application of Cable Extrusion Line
It is applicable for electronic wire, power wire, data wire, control wire and high frequency sheath (Jacket) extruding.
Cable Extrusion Line Feature
- Optimization design of the new type screw, with large outputs, plasticizing completely, rapid change color, etc;
- Extruding finish plastic's concentricity could be reach to more than 93%, outer diameter error range is ±0.01;
- Using SCR power controller or solid-state relay, equip with RKC temperature controlled meter, the temperature difference of machine body is ±1ºC;
- Design with human interface operating system, wire diameter asthmatically tracking feedback, it is easily for operating, more efficiency.
Specification
| Pay-off type | Dual shaft type |
| Pay-off bobbin | PN300-400 |
| Core wire specification | 1-8mm |
| L/D ratio | 26:1 |
| Extrusion output | 140kg/h |
| Main motor power | 30/50HP |
| Finished wire diameter | 2-12mm |
| Temperature control | 7 section |
| Cooling device | Single/ Double layer U type (8M) |
| Hauling power | 5HP |
| Accumulator type | horizontal |
| Accumulating length | 200 |
| Outlet wire speed | Max 400m/min |
| Take-up type | Dual shaft / shaft |
| Take-up bobbin | PN400-630 |
| Take-up power | 3HP |
