• Model NO.：2SJ
• Machine Weight：4T
• Certification：CE, ISO9001:2008
• Single-Face Thickness of Film：0.015-0.1mm
• Transport Package：Wrapping Film
• Specification：CE, ISO9001: 2000
• Trademark：CHANGYIN
• Origin：China
• HS Code：8477300000
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. 2SJ Machine Weight 4T Certification CE, ISO9001:2008 Single-Face Thickness of Film 0.015-0.1mm Transport Package Wrapping Film Specification CE, ISO9001: 2000 Trademark CHANGYIN Origin China HS Code 8477300000 Production Capacity 1000 Sets/Year

Product Description

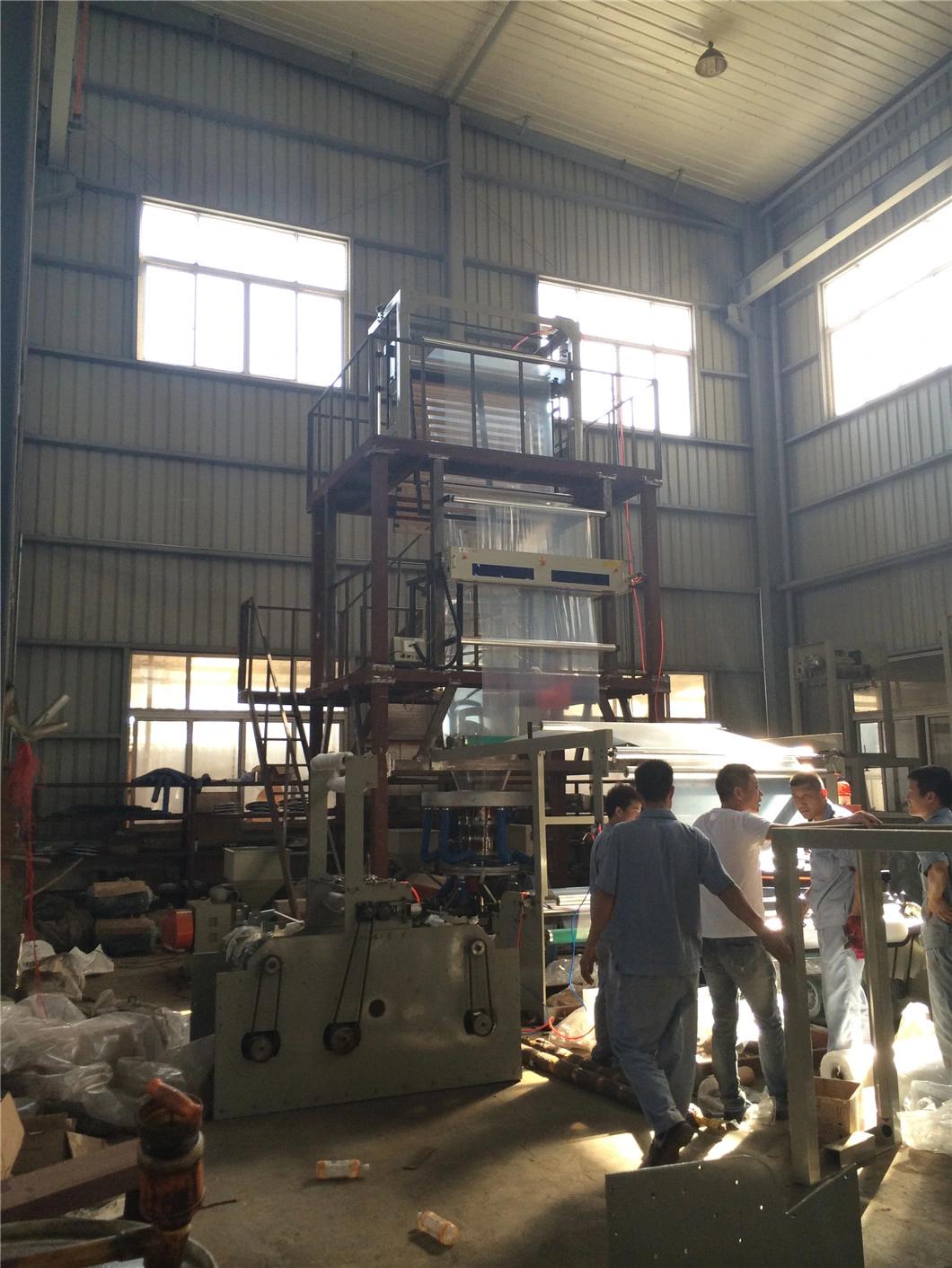

Usage:The machine plasticizing two identical or different raw substances by two extruder extrude them to the complex machine head, then produces the co-extruding molded complex film.By this way, it makes possible to enhance the film's physical performance, rigidity, good insulation-proof and impenetrability.

Material:LDPE.HDPE.LLDPE

Technical data:
Model:2SJ-50
Diameter of screw:50*2
L/D:28:1
Reduced diameter of film:800mm
Single-face thickness of film:0.015-0.1mm
Max.Output:40kg/h
Power of main motor:11*2kw
Heating power:26kw
Outline dimension:4200*2200*4000mm
Weight:3T

Model:2SJ-55
Diameter of screw:55*2
L/D:28:1
Reduced diameter of film:1000mm
Single-face thickness of film:0.015-0.1mm
Max.Output:65kg/h
Power of main motor:15*2kw
Heating power:30kw
Outline dimension:4600*2400*4600mm
Weight:3.5T

Model:2SJ-60
Diameter of screw:60*2
L/D:28:1
Reduced diameter of film:1200mm
Single-face thickness of film:0.015-0.1mm
Max.Output:80kg/h
Power of main motor:18.5*2kw
Heating power:42kw
Outline dimension:5000*2800*5000mm
Weight:4.5T
