• Model NO.：DZ3000
• Customized：Non-Customized
• Condition：New
• Supply：CNC Plastic Board Butt Welding Machine
• PLC Control：Seamens Touch Screen
• Processing Length：3050mm
• Processing Thickness：3mm to 30mm
• Functions：Horizontal Weld, Rolling and Bending 0-145°
• Voltage：380V
• Material：PP, PVC, PVDF, HDPE, Pph
• Transport Package：Standard Export Wooden Box
• Specification：CE ISO SGS
• Trademark：SUDA
• Origin：Guangzhou
• HS Code：85158900
• Production Capacity：100sets,Year

Basic Info.

Model NO. DZ3000 Customized Non-Customized Condition New Supply CNC Plastic Board Butt Welding Machine PLC Control Seamens Touch Screen Processing Length 3050mm Processing Thickness 3mm to 30mm Functions Horizontal Weld, Rolling and Bending 0-145° Voltage 380V Material PP, PVC, PVDF, HDPE, Pph Transport Package Standard Export Wooden Box Specification CE ISO SGS Trademark SUDA Origin Guangzhou HS Code 85158900 Production Capacity 100sets/Year

Product Description

                                           CNC Plastic Board Butt Welding Machine

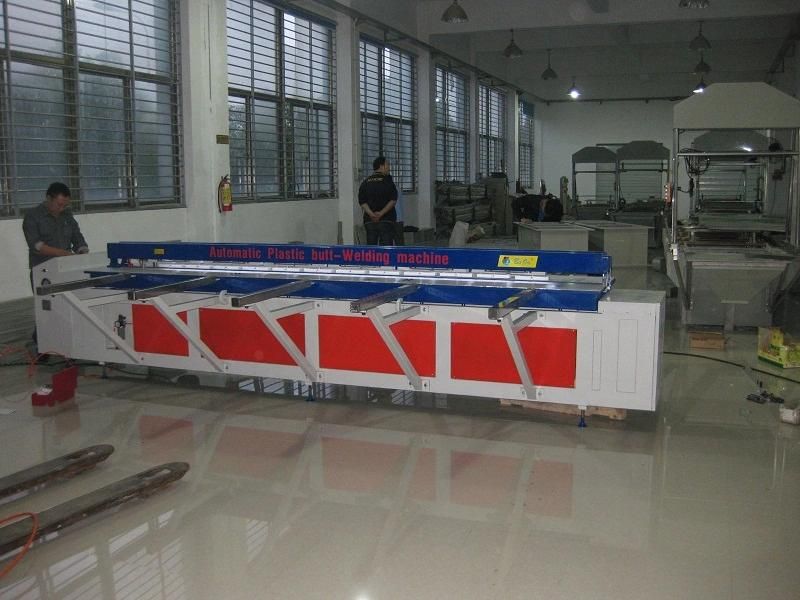

                     DZ3000 Automatic butt-welding and bending machine
Application and Feature


1.It applies PLC touch screen system.According to parameters of material,it can automatically adjust heating temperature,time and pressure;

2.Models of over three meters apply fragmented heating to enable large-size machines to own excellent property of energy-saving as small-size machines;

3.Control system applies components imported from Japan which has stable performance and durability.

4.Brand new integral machine frame,highly reliable transmission mechanism and excellent working stability;

5.It applies professional technology for anti-corrosion surface treatment and coating on surface is durable.


Specifications and Parameters:

Model/Parameters	Butt-welding machine	Bending machine
Processing Thickness(mm)	3-50	3-30
Processing Length(mm)	4000	4000
Smallest coiling size(mm)	500	0
Range of Bending angle	0	0-145°
Rated Voltage of heating blade(V)	220	220
Power of heating blade(KW)	5	10
Power of Slip Roll Machine Motor(KW)	2.2-5.5	0
Air Pressure(kg.f/cm2)	6-8	6-8
Rated Voltage(V)	380	380
Rated electric current(A)	50	50

Dimensions: L*W*H  4800X1850XX1100(mm)

Applicable Materials :Thermo-plastic sheet PVCPPPPNPVDFPE

Automatic Series machines

Our Advantage:

1.Very Stable and competitive price

2.Provide professional export services

3.Also can accept small orders.

4. We can offer the certification of machines .


Our Service

1. One year warranty, life-long maintenance.

2. In warranty time, if non-artificial reason damaged can take old change new for free. Out of warranty time,we can Offer maintenance service (charge for material cost).

3. We accept OEM/ODM.


Why choose us?


1.Our equipment has strong competitiveness, our equipment already ahead, our device has the following characteristics:

The only updates the equipment for five generations development process
The only use of advanced technology from Germany
The only electrical integration automated system
The only design
The only practical new technology

2.Our main spare parts import from some famous company.
