• Model NO.：SJSZ80,156
• Automation：Automatic
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Customized：Customized
• Condition：New
• After-sales Service：Provide Lifelong Service, on Site Repair and Upgra
• Plastic Machine：PVC Pipe Extrusion Machine
• Main Extruder：Sjsz Double-Screw Extruder
• Pipe Diameter：160-315mm mm or 160-250mm
• Main Motor：Siemens Beide
• Output Capacity：300-400kg,Hr
• Overall Dimension：About 30m*2m*2m
• Raw Material：PVC Powder
• Power Supply：380V 3phase 50Hz or as Your Demand
• Operator：1-2 Persons Per Shift
• Inverter：ABB
• Temperature Meter：Omron
• Relay / Switch：Schneider
• Transport Package：Mold: Wooden Package. Outside: Stretch Film
• Specification：CE SGS TUV ISO
• Trademark：DINGKUN
• Origin：Qingdao of Shandong
• HS Code：847209000
• Production Capacity：300-400kg,Hr
• Package size per unit product：1200.00cm * 230.00cm * 260.00cm
• Gross weight per unit product：150000.000kg

Overview Product Description

Produce process :
PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → stacker

Main Composition

ItemQuantity1.SJSZ-80/156 conical twin screw extruder (Equipped with automatic feeding unit)One set2.Die and MoldOne set3.Vacuum calibration unitOne set4.Haul-off unitOne set5.Cutter UnitOne set6.StackerOne setOptional auxiliary machines for your choice 1.PrinterOne set2.MixerOne set3.CrusherOne set4.Milling machineOne set5.PVC pipe belling machineOne setProduct Parameters

Technical parameter

Diameter(mm)16-40dual20-63dual20-6375-200160-315315-630Extruder modeSJZ51/105SJZ65/132SJZ51/105SJZ65/132SJZ80/156SJZ92/188Extruder power (kw)18.5AC37AC18.5AC37AC55AC110DCMax lineal speed (m/min)0.5-100.5-150.5-100.5-80.5-60.5-4Max capacity (kg/h)12025080-120180-250280-350500-600Installation area  24*2.8*2.0m30*2.8*2.2m35*3.0*2.4 m36*3.0*2.4 m Detailed Photos

1. SJSZ-XXX conical twin screw extruder (Equipped with automatic feeding unit)

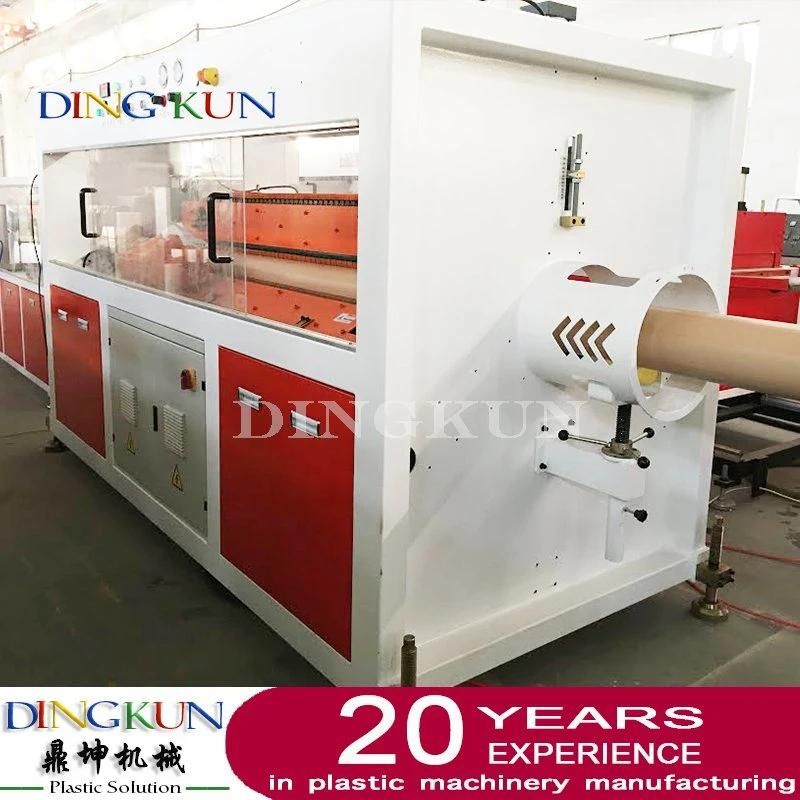

2. Vacuum calibration unit

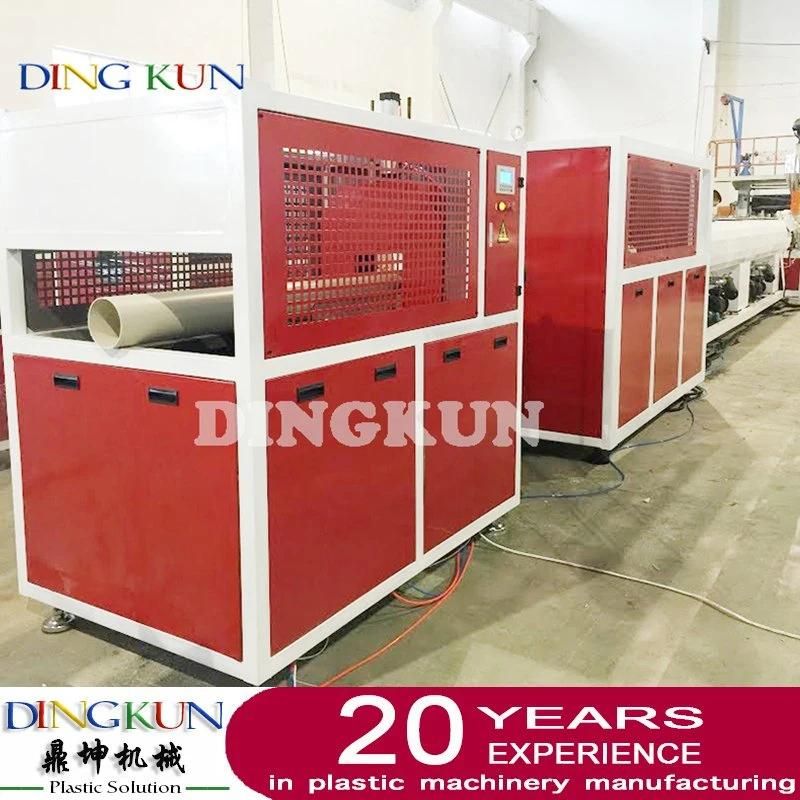

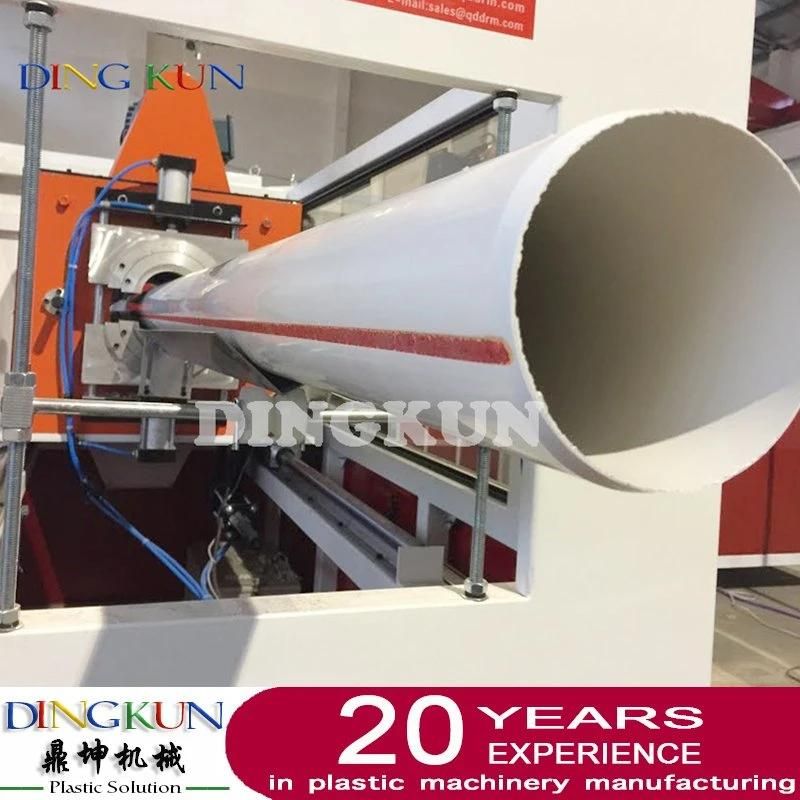

3. Haul-off unit + cutter unit

4. Stacker


SJSZ80/156 PVC PIPE MACHINE FOR 160-250mm / 160-315mm Pipe


PVC DOUBLE PIPE MACHINE
Packaging & Shipping

Loading Container & Delivery

Company Profile



DINGKUN- CERTIFICATIONCertificationCertified ByCertificate No.Business Scope Expiry DatISO 9001:2008Beijing Hangxie Certification
Center Co., Ltd.,
CNAS
03413Q21640R1MDesign and Production of
Single-Screw Plastic Extruders
and Conical Twin-Screw
Plastic ExtrudersCEEuropeanInspection and
Certification
Company S.A.CN.CE.0680-10/10Plastic Extrusion Machinery &
SJ-30, SJ-45, SJ-65, SJ-90,
SJ-120, SJ-150, SJ-180,
SJ-200, SJSZ-51/105,
SJSZ-65/132, SJZS-80/156,
SJSZ-92/188TUVTÜV Rheinland7467484_P+TProduction & Trade AssessmentMain Product Lines Verification ReportTÜV Rheinland7467487_P+TMain Product Lines VerificationSGS

SGS-CSTC Standards Technical Services Co.,Ltd
Focus Technology Co., LtdQIP-ASR155278Extrusion Machine, Pipe Machine ,profile Machine, Roof Machine

Execellent Service-Turnkey Project (Pre-Sale and After-Sale Service)

DINGKUN is committed to providing full support for its local and international clients and dealers and will always provide a prompt response to customer enquiries.

1. Provide all the machines for the complete production according to customer's requirements.
2. Provide complete service for factory layout and other information to help customer to build the factory.
3. Provide the raw material to the customer if need.
4. Provide good service for machine installation and training, until the customers can run the machines and make stable production.
5. Provide after-sell service for all the life, except one year quality guarantee,
6. Provide good quality, good price and good service to customer. We are the professional and trustable supplier for turnkey projects. Let us do win-win business together.
