Three Layer Plastic Stretch Film Blowing Machine
Ruian Hoin Machinery Co., Ltd.- After-sales Service：Technical Support Online
- Warranty：One Year
- Type：Multi-Layer Co-extrusion Film Blowing Machine
- Raw Material：Mixing
- Maximum Folding Width of Film：1200mm
- Screw Diameter：55mm
Base Info
- Model NO.：F3B-RD-1000
- Automation：Automatic
- Computerized：Non-Computerized
- Machine Weight：6t
- Certification：CE, ISO9001:2008
- Certificate：CE, ISO9001
- Factory Manufacture：Ruian, Zhejiang, China
- High Output：90-240kg,H
- Feature 1：Double Air Vent Air Ring
- Feature2：360° Continuous Rotation
- Feature 3：Double Rewinding
- Transport Package：Stretch Film or Wooden Case
- Specification：CE, ISO9001
- Trademark：HOIN
- Origin：Ruian, Zhejiang, China
- HS Code：84773010
- Production Capacity：30 Set,Month
Description
Main Technical VariablesModel F3B-RD 1000 F3B-RD 1200 F3B-RD 1500 F3B-RD 2000 F3B-RD 2500 F3B-RD 3000 Screw diameter(mm) Φ45/Φ50/Φ45 Φ50/Φ55/Φ50 Φ55/Φ60Φ55 Φ60/Φ65/Φ60 Φ65/Φ70/Φ65 Φ75/Φ80Φ75 Screw L/D Ratio L/D30 1 L/D30 1 L/D30 1 L/D30 1 L/D30 1 L/D30 1 Screw rotation 15-120r/min 15-120r/min 15-120r/min 15-120r/min 15-120r/min 15-120r/min Power of main motor 11/15/11 15/18.5/15 18.5/22/18.5 22, 30, 22kw 30, 37, 30kw 37, 45, 37kw Max.Extrude Output 100kg/h 120kg/h 150kg/h 180kg/h 210kg/h 240kg/h Range of Die Φ250mm Φ300mm Φ350mm Φ500mm Φ600mm Φ700mm Single-face Thickess of film 0.01-0.10mm 0.01-0.10mm 0.02-0.10mm 0.02-0.10mm 0.02-0.10mm 0.02-0.10mm Max Film Folding Dia. 1000mm 1200mm 1500mm 2000mm 2500mm 3000mm Electric capacity 76kw 88kw 102kw 140kw 160kw 190kw Machine of weight 4200kg 5300kg 6200kg 8600kg 10600kg 13000kg Overall Dimension
(L×W×H) 6600×4100×5000mm 6800×4300×6000mm 7000×4800×6800mm 7800×5300×8600mm 8600×6200×9600mm 9600×7200×11000
mm Design and specifications are subject to change without notice.

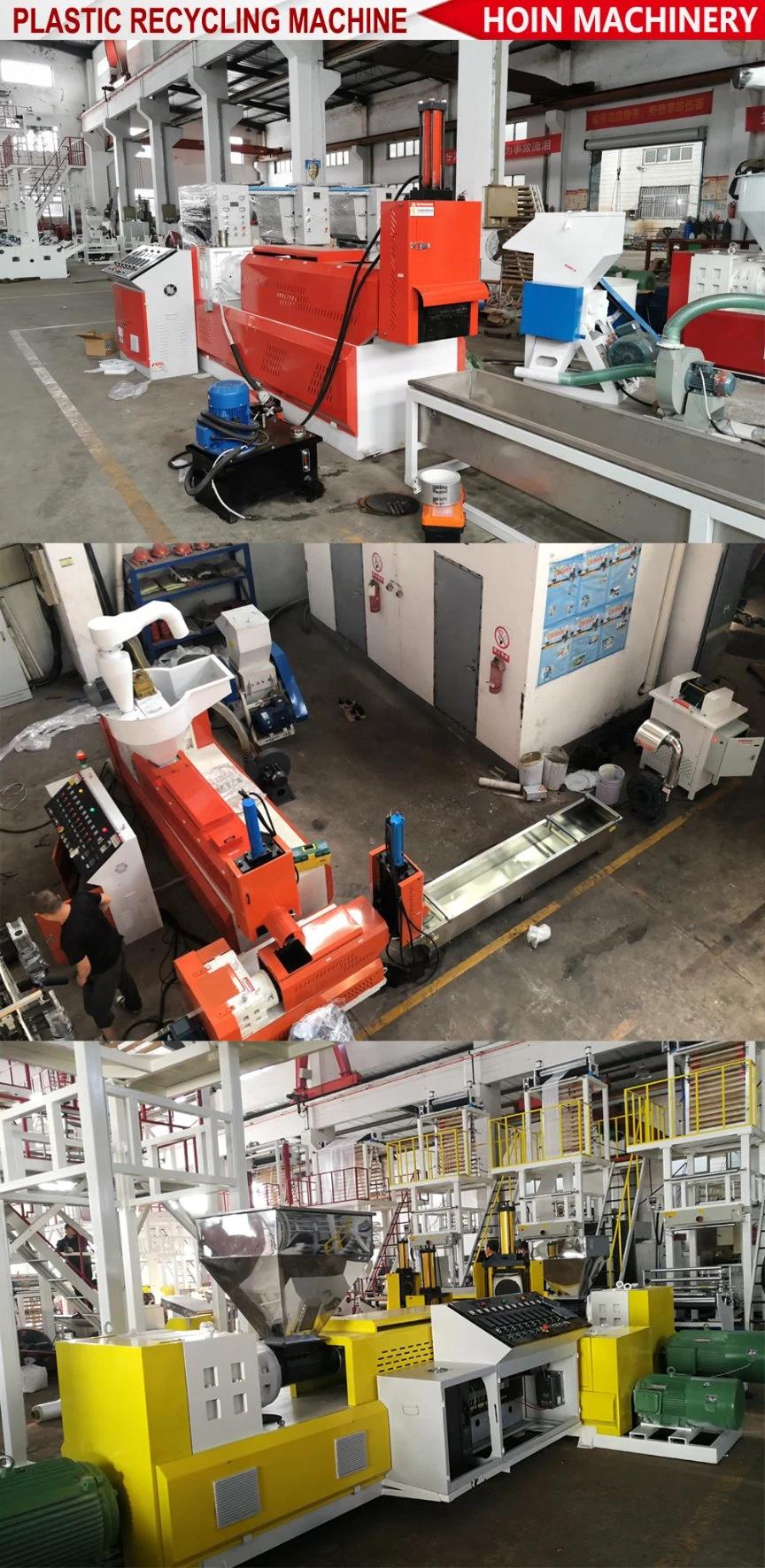

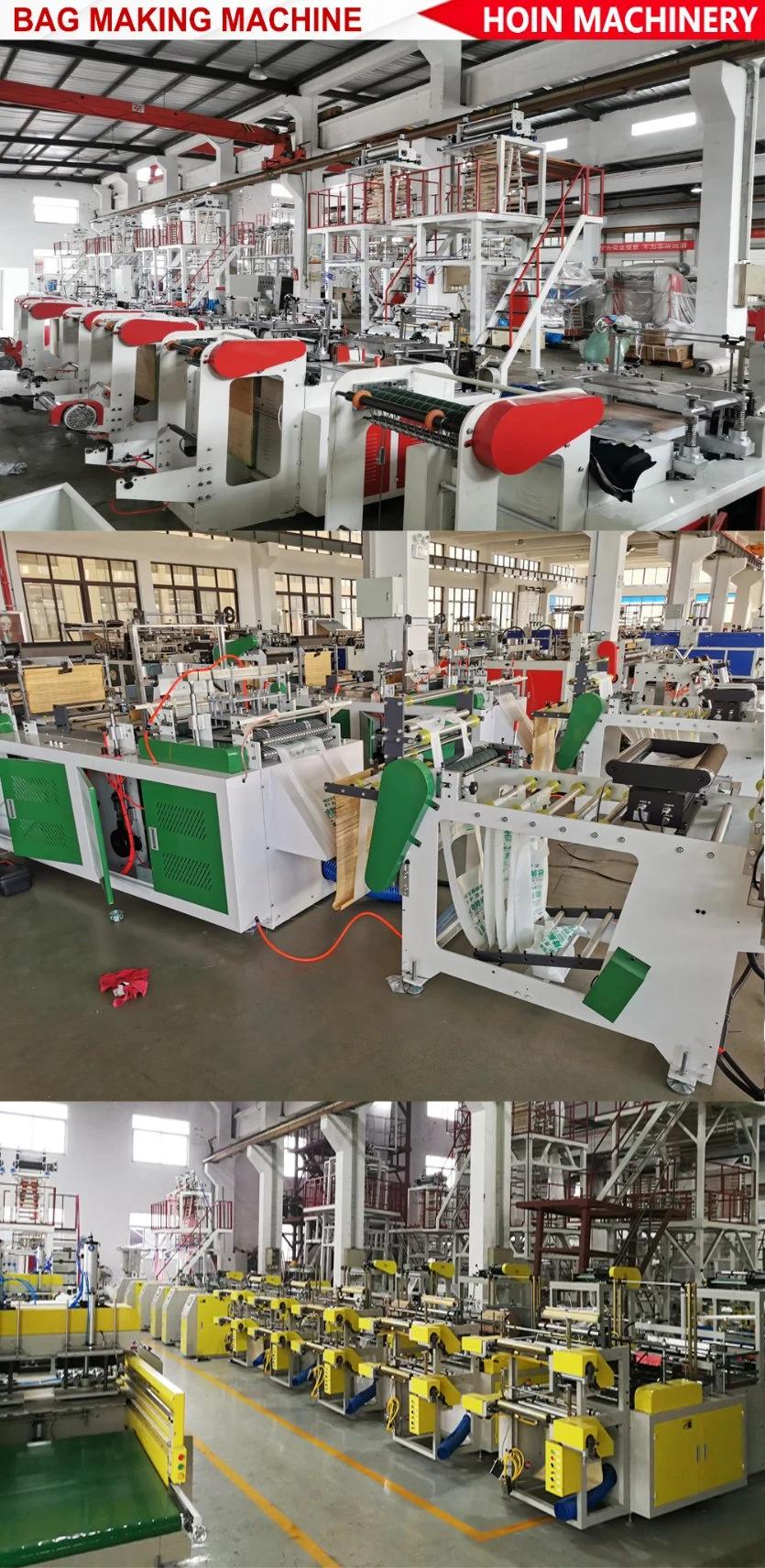

Workshop of HOIN

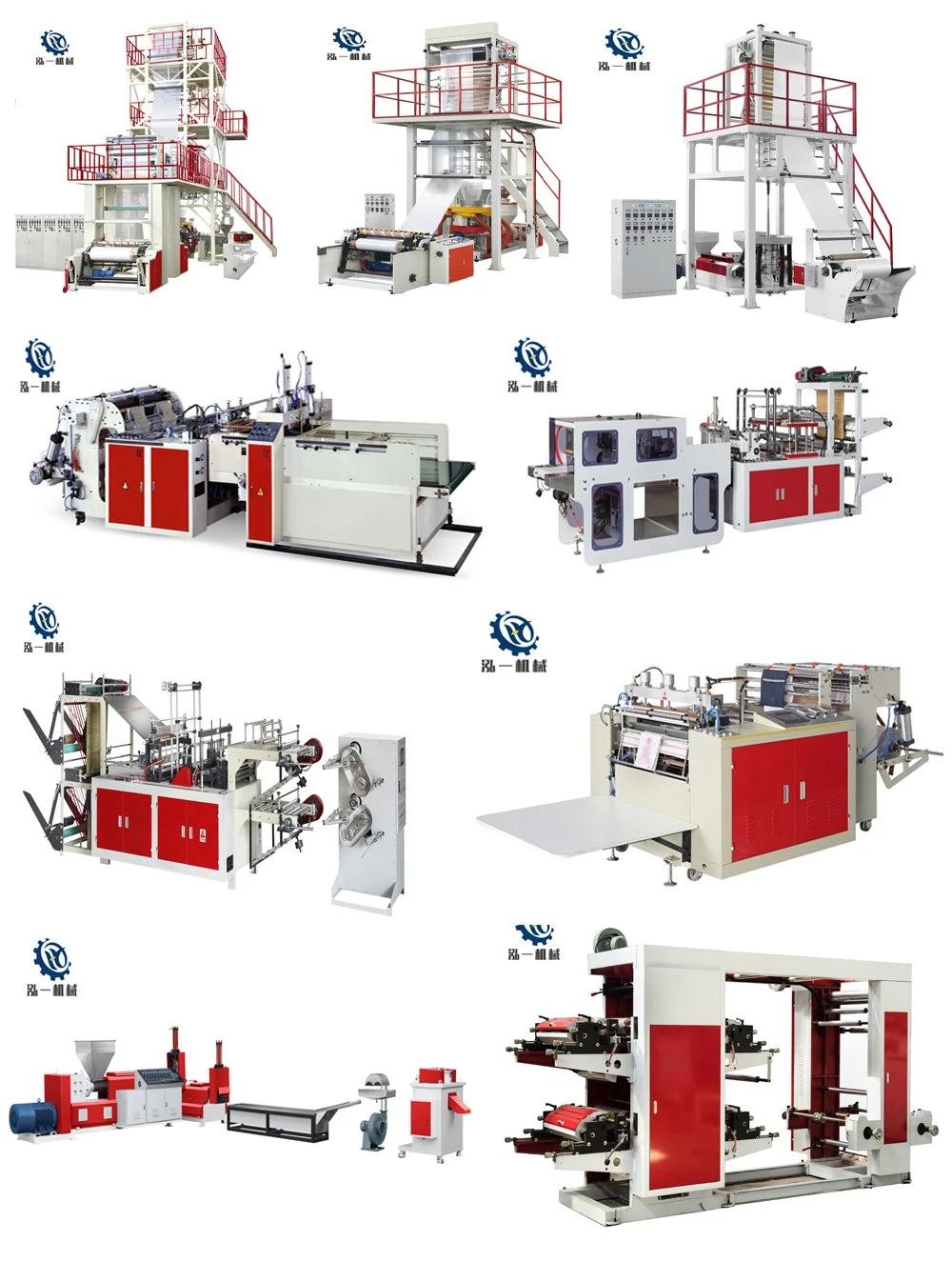

E. More Products Optional
F. After service of HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 80USD per day per person.
4. How long of your machine's warranty period?
All our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We also can offer you our best after service, of course you will afford our technician's cost.
6. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
(L×W×H)
mm
Workshop of HOIN E. More Products OptionalF. After service of HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 80USD per day per person.
4. How long of your machine's warranty period?
All our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We also can offer you our best after service, of course you will afford our technician's cost.
6. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
