PP 2 Layers Film Blowing Machine

Xiongqiu Plastic Machinery Co., Ltd.
  • Type：PP Film Blowing Machine
  • Raw Material：PP PE
  • Maximum Folding Width of Film：900mm
  • Screw Diameter：55mm*2
  • Automation：Non-Automatic
  • Computerized：Non-Computerized

Base Info

  • Model NO.：FMP-1000
  • Machine Weight：8T
  • Certification：CE, ISO9001:2008
  • Machine Size：L*W*H: 5.5m * 2.7m * 3.7m
  • Voltage：380V 50Hz 3phase
  • Transport Package：Plastic Warp Film for Container Shipment
  • Specification：double layers
  • Trademark：Xiongqiu Plastic Machinery Co., Ltd.
  • Origin：Foshan, Guangdong Province
  • HS Code：8477300000

Description

PPA / PPEfilm width(mm)150--700300--900400--1100thickness0.02--0.15mmscrew diameter Φ45mm * 2 Φ55mm * 2 Φ65mm * 2L/D ratio28:1die diameter Φ220mm Φ330mm Φ430mmdie structureSpiral mandrel die chrome plated surface 40Crmain power11kw*218.5kw*222kw*2max output65kg/h85kg/h105kg/hTorque motor winderoptional equipmentauto-loader device, film surface treater, air compressor, rotary die head, horizontal oscillating unit
PICTURES FOR REFERENCE:

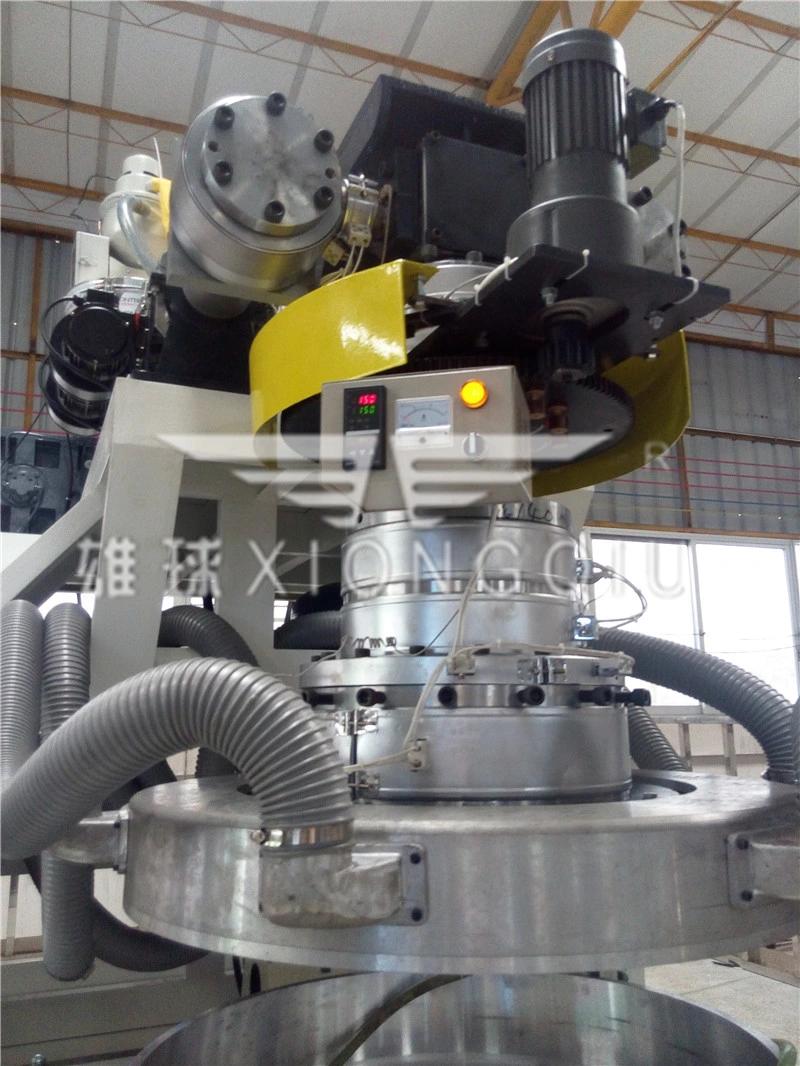

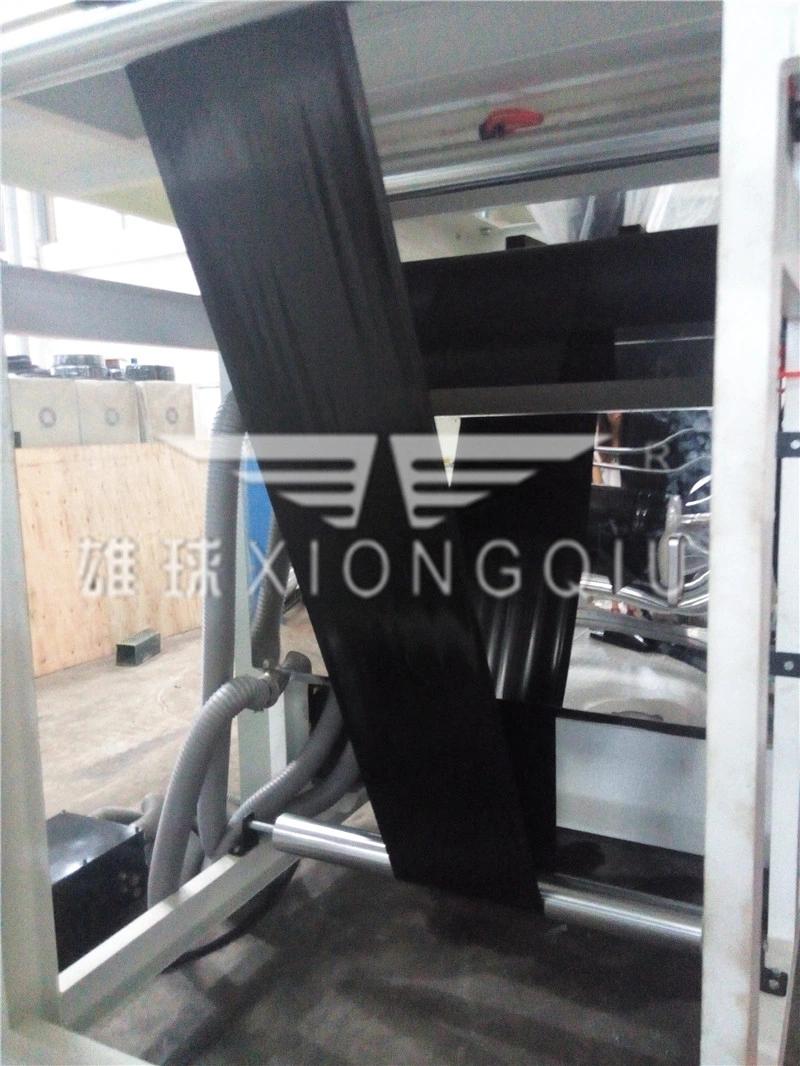

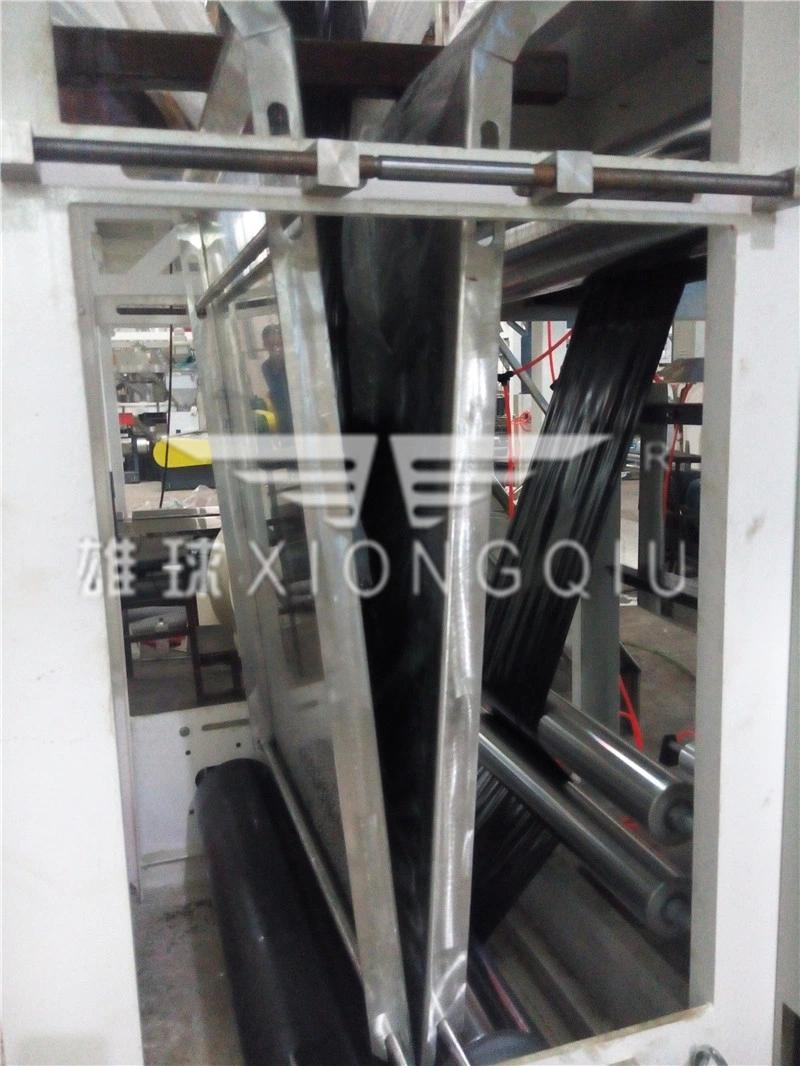

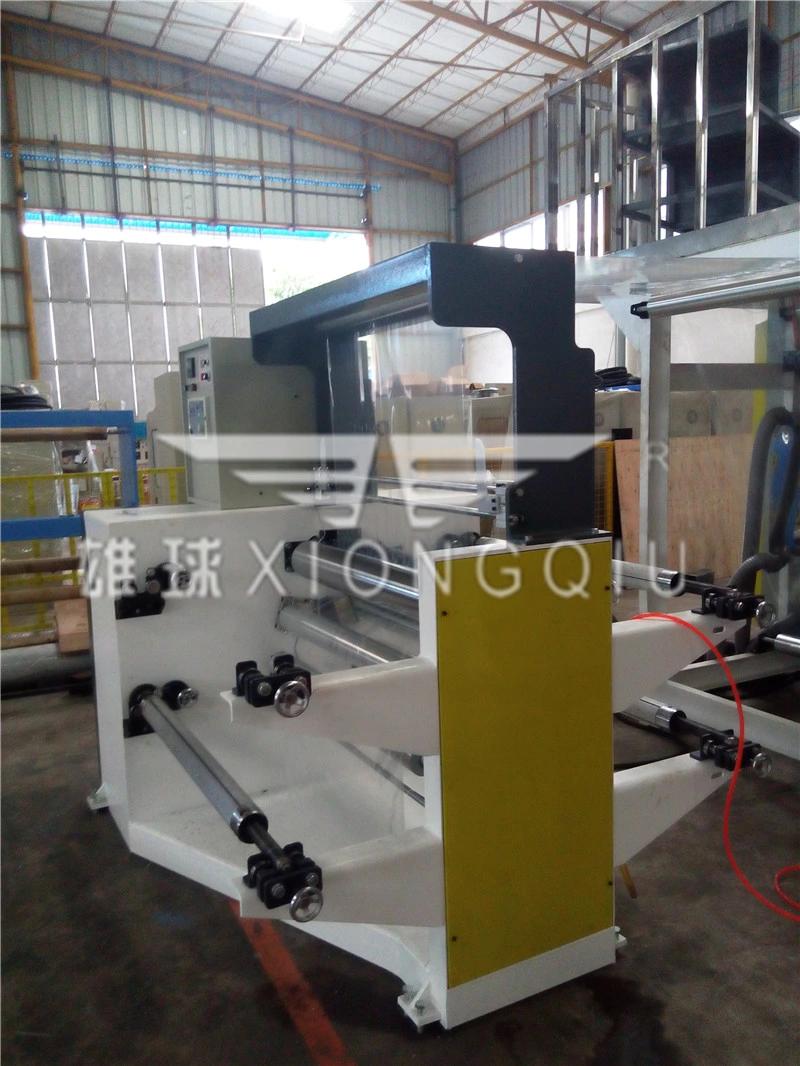

1000mm PP 2 layers co-extrusion film blowing machine
PP 2 Layers Film Blowing Machine
PP 2 Layers Film Blowing Machine
PP 2 Layers Film Blowing Machine
PP 2 Layers Film Blowing Machine
