• Model NO.：YZJ-PP
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Don′t Exhaust
• Automation：Automatic
• Computerized：Computerized
• Color：Blue
• Producti Width：9-14mm
• Producti Thickness：0.5-1.0mm
• Max Capacity：90kg,H
• Warranty：13 Months
• Voltage：Customer Standard
• Control System：PLC or Hand Control
• Service：Free Installing and Training
• Transport Package：Pallet or Wooden Box Package
• Specification：30000*3500*2500
• Trademark：YZJ
• Origin：Sichuan
• HS Code：8477800000
• Production Capacity：10 Sets,Month

Strap width9-14mmproducti thickness0.5-1.0mmProduction speed100m/minStretching ratio5-7Max.output90kg/h
About Our Company

1. Study plastic strap making process since 1995;

2.Produce the plastic strap and the plastic strap making machinery at the same time.

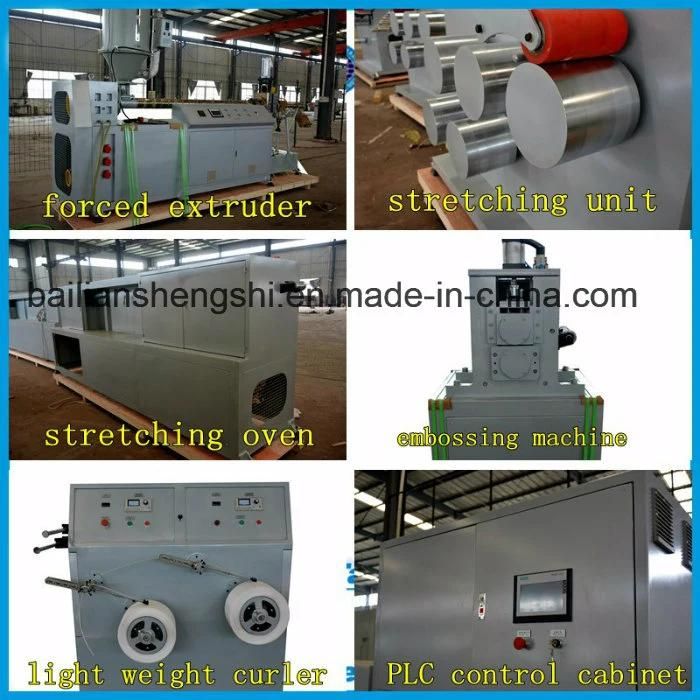

Product Show


1.The main machine drive consists of frequency control motor and special hard tooth-surface reducer for plastic extruding machine. Forming part is composed of screw feed barrel, frame head and die. The raw material is heated from hopper to screw feed barrel, and the rough block is extruded.

2.The stretching unit is composed of frequency control motor, band drive, carry-over pinch roll and band press device, which conveys the strapping band shaped in the oven to the embossing roller through carry-over pinch roll, and then the formed band is produced through the embossing roller.

3.The circulating wind heat stretching oven unit consists of drying room, adjustable band winding roller, heater, built-in tension device, fan, etc., which is used to heat the rough block. When the temperature of rough block meets the requirement for stretching, it is stretched and shaped in the oven. This machine adopts reciprocating band winding structure, which makes the total length of heating line above 4 times of heating box body. The circulating wind heat system may keep the indoor temperature constant to the maximum extent, so the heat utilization may be improved greatly and the energy consumption will be reduced.

4.Light weight curler is composed of torque motor, band drive, gear drive, band winding spool and travel rod. Different speed ratio is gained through gear, and different products may be winded in. The curler winds the accepted products and separates them as a single piece with specified shape and quality.




After-sales service

1.We provide one-year warranty guarantee for all the machines.  We supply long term spare parts for every customer and 24 hours technical suport by email, calling and door to door service;

2.We run machines in our factory before delivery. Clients check machines running in our factory, and  when machines arrive in Client's factory, we will send our engineer to run machines in client's factory too.

3. we provide service manual and maintenance instruction of main electric appliance,usage manual of equipment.

4.We also supply installation drawing of water, electricity, gas of equipment.



      If you want to know more information of our plastic strapping making machine,please contact me directly.
