• Model NO.：LMSB-80,156
• Customized：Customized
• Condition：New
• Machine：PVC Foam Board Extrusion Machine
• Extruder Model：Sj-80,156 Conical Twin Screw Extruder
• Extrusion Capacity：350-400kg,H
• Installed Power：170kw
• Die Head：T-Type Die Head
• Calibrating Method：Three Roller Calendars
• Main Electrical Parts：ABB,Omron, Rkc, Schneider, Siemens
• Guranteed Time：12 Months
• Transport Package：Separate Wood Case and Pallet
• Specification：ISO9001-2000
• Trademark：LEADER
• Origin：Qingdao China
• HS Code：8477209000
• Production Capacity：40set,Year

Basic Info.

Model NO. LMSB-80/156 Customized Customized Condition New Machine PVC Foam Board Extrusion Machine Extruder Model Sj-80/156 Conical Twin Screw Extruder Extrusion Capacity 350-400kg/H Installed Power 170kw Die Head T-Type Die Head Calibrating Method Three Roller Calendars Main Electrical Parts ABB,Omron, Rkc, Schneider, Siemens Guranteed Time 12 Months Transport Package Separate Wood Case and Pallet Specification ISO9001-2000 Trademark LEADER Origin Qingdao China HS Code 8477209000 Production Capacity 40set/Year

Product Description

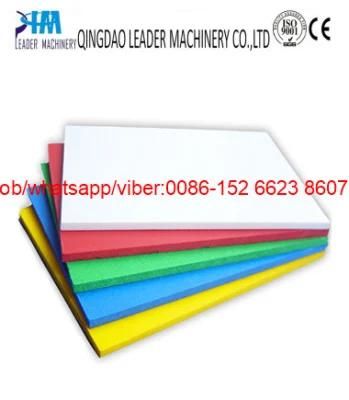

2400*1200 pvc board plastic pvc boards/foam sheets extrusion line
This line is specially used for producing PP/PE/PS/ABS/PVC single layer or multi-layer sheet or plate, suitable in the fields of packaging, stationery, chemicals, construction, household appliances and so on.

Main technical data:
1. Usual sheet width: 700, 900, 1020, 1200, 1300, 1400, 1500, 1700, 1800, 2100, 2200mm
2. Usual sheet thickness: 0.5-2mm, 1.5-10mm, 6-20mm, 3-30mm
Extruder: Special screw structure, imported world-known thermocontrollers, electronics, hard gear face reducers to ensure high effective material extrusion capacity.

T -type die head: Suitable compression ratio to ensure uniform flow stability.
Three-roller calendar: According to the material properties, adopting vertical three-roller, oblique three-roller, horizontal three-roller calendar. Internal roller temperature control using a unique flow channel, so that the stability of uniform distribution roller. The independent oil temperature control for three roller to ensure more stable and exact control.

Cooling frame: According to product specifications, configurations with different specifications of the stainless steel cooling roller
Edge-cutting devices: Trimming can be divided into manual and automatic, three-dimensional configuration tool adjustment device, width adjustable.

Cut off machine: Saw cutting or knife cutting, thin type and non-friable type sheet generally usually knife cut, adopted high-quality alloy cutting tools, sharp and durable.

Model	LMSB65/132	LMSB80/156	LMSB92/188
Max product width	1000mm	1500mm	2000mm
Products thickness	0.5-3mm	0.5-3mm	0.5-3mm
Extruder model	SJ-65/132	SJ80/156	SJ-92/188
Rollers diameter	350mm	400mm	450mm
Rollers temperature control	Oil/water	Oil/water	Oil/water
Main motor power	37kw	55kw,75kw	75kw, 110kw
Capacity	250kg/h	360kg/h	550kg/h
Total line Length	22m	28m	35m
