Multicavity Energy-Saving Plastic Machine Injection Blow Molding Machines
Zhangjiagang Dawson Machine Co., Ltd.- Type:Injection Blow Molding Machine
- Raw Material:HDPE
- Making Method of Parison:Injection Blowing
- Automation:Automatic
- Computerized:Computerized
- Certification:CE, ISO9001:2008
Base Info
- Model NO.:IBM65D
- Injection Blow Molding Suitable Material:HDPE LDPE PP PS ABS San PETG Pctg TPU

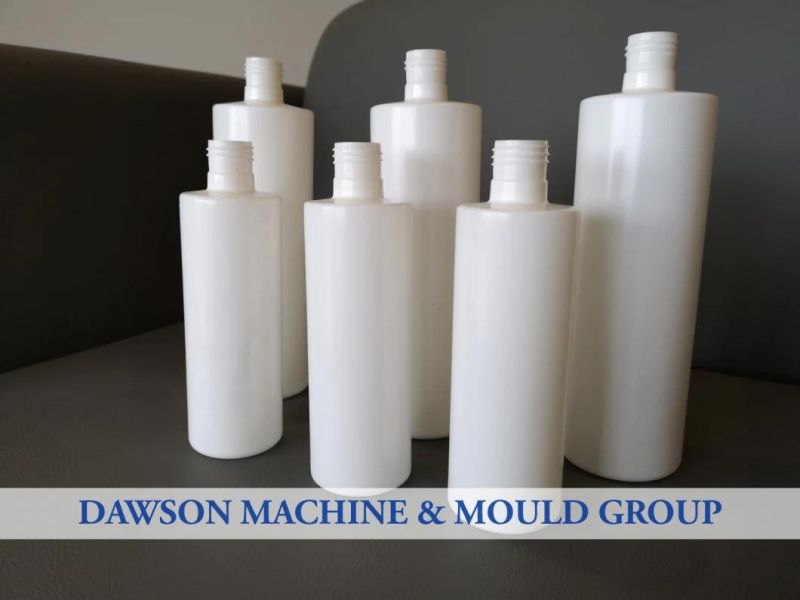

- Injection Blow Molding Application:Eye Dropper, Medicine Bottle, Chemical Bottle
- More Application:Milk & Yogurt Bottle
- Injection Blow Molding Machine Type:Injection Blow Molding Machine
- Injection Blow Molding Screw Diameter:50 mm
- Clamping Force of Injection:650 Kn
- Clamping Force of Blowing:89 Kn
- Machine Heating Capacity of Mould:5 Kw
- Injection Blow Molding Machine Dimension:4*1.28*2.35 (M)
- Injection Blow Molding Machine Weight:7.5 Ton
- Opening Stroke of Mold Platen:140 mm
- Max. Platen Size (L*W):740*390
- Min. Mold Thickness (H):280 mm
- Suitable Bottle Range:5ml - 1L
- Total Rated Power with Mold Heating:45 Kw
- Transport Package:Film Packing
- Specification:IBM65D
- Trademark:DAWSON
- Origin:Jiangsu Zhangjiagang
- HS Code:8477301000
- Production Capacity:as Per Samples
Description
Overview
Product Description
Item Unit Date Injection system Screw Diameter mm 40 Max. Theoretical injection capacity G 176 Heating capacity KW 7.2 No. of heating area Qty 3 Clamping & blowing system Clamping force of injection kn 350 Clamping force of blowing kn 40 Opening stroke of mold platen mm 120 Max. Platen size (L×W) mm 420×340 Min. Mold thickness (H) mm 180 Heating capacity of mould KW 2.8 Product dimension range Suitable bottle range ml 3-800 Max. bottle height mm ≤180 Max. Dia. of bottle mm ≤80 Dry cycle s 4 Hydraulic driving system Motor power KW 11/15 hydraulic pressure Mpa 14 Pneumatic system Min. Air pressure Mpa ≥0.8 Discharge rate of compressed air M3/mm ≥0.7 Cooling system Water flowage M3/h 3 Total rated power with mold heating KW 21/25 Machine information Dimension M 3.1×1.2×2.2 machine weight Ton 4.0 Machine Advantages
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.
Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.
Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )
Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.
Q: What is the lead time?
For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.
Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.
Q: What's DAWSON's advantage?
DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.
DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
