Cooler Boxes Making Machine Rotational Molding Machine
Zhejiang Benfan Machinery Co., Ltd.- Warranty：1 Year
- Delivery Time：60 Days
- After Sales Provided：Field Installation, Commissioning and Training
- Power：66kw
- Weight：30000kgs
- Dimension(L*W*H)：21*16*6.2m
Base Info
- Model NO.：BF-4500TL
- Fuel：CNG,LPG,Diesel
- Oven Diameter：4500*4500*4500mm
- Control System：Siemens PLC
- Number of Arms：4 Arms
- Arm Max. Loading：1500kgs
- Oven Thickness：150mm
- Max.Temperature：400 Degree
- Raw Material：HDPE, LDPE, LLDPE
- Transport Package：Plywood Case, Rag-Rugs and PVC Film
- Trademark：BENFAN
- Origin：Zhejiang, China (Mainland)
- HS Code：8477401000
- Production Capacity：10 Sets Per Month
Description
Total weight(Ton)L W H BF-2500TL Ø2500 13500 9000 4000 35 16 BF-3000TL Ø3000 15500 10500 4500 35 20 BF-3500TL Ø3500 17500 11500 5100 45 24 BF-4000TL Ø4000 19500 13500 5600 45 26 BF-4500TL Ø4500 21500 15500 6100 56 28
Machine Premium Features:
1. It only need 3mins. from room temperature increase to 250 to 280 degree in oven
2. Arm made of special alloy material of good load
3. Full gear transmission, high efficiency
4. Full automatic operation with Siemens PLC.
5. Heavy duty oven and energy saving
6. Loading and unloading easy for mould
7. Special deep cavity heating technical, suitable for complicated product
8. Internet remote control when machine has problems in overseas.
9. All motors use Siemens brand,burner is Riello from Italy and electric brand is Schneider and Omron.
Company Indroduce
| Machinery type: | Carrousel rotomolding machine |
| Heating supply: | Natural gas,liquefied gas,diesel oil |
| Temperature control: | DTE Control±2ºC |
| Burner system: | Riello |

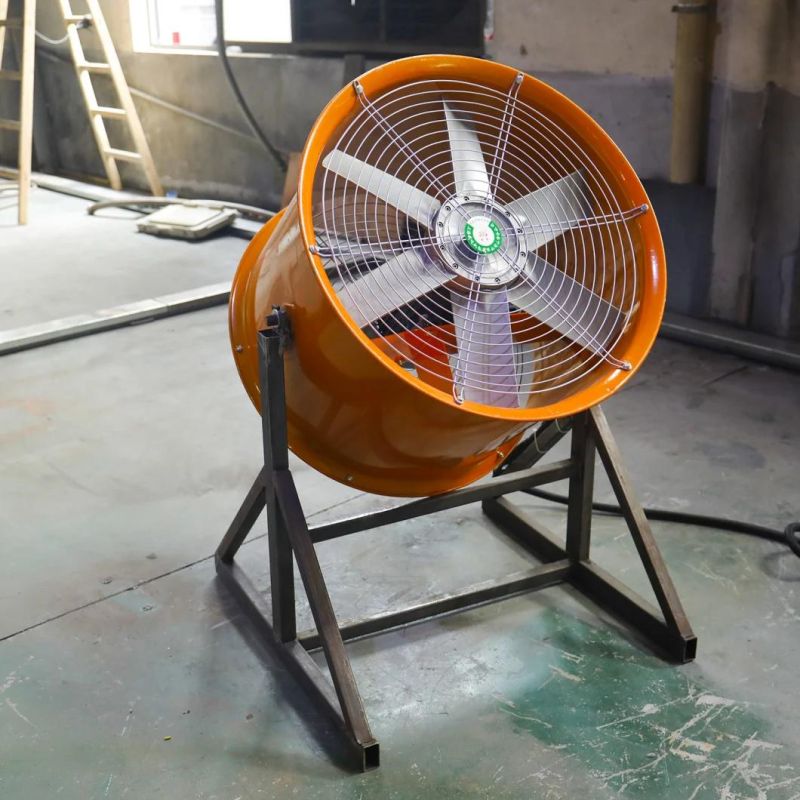

| Cooling mode: | Fan cooling |

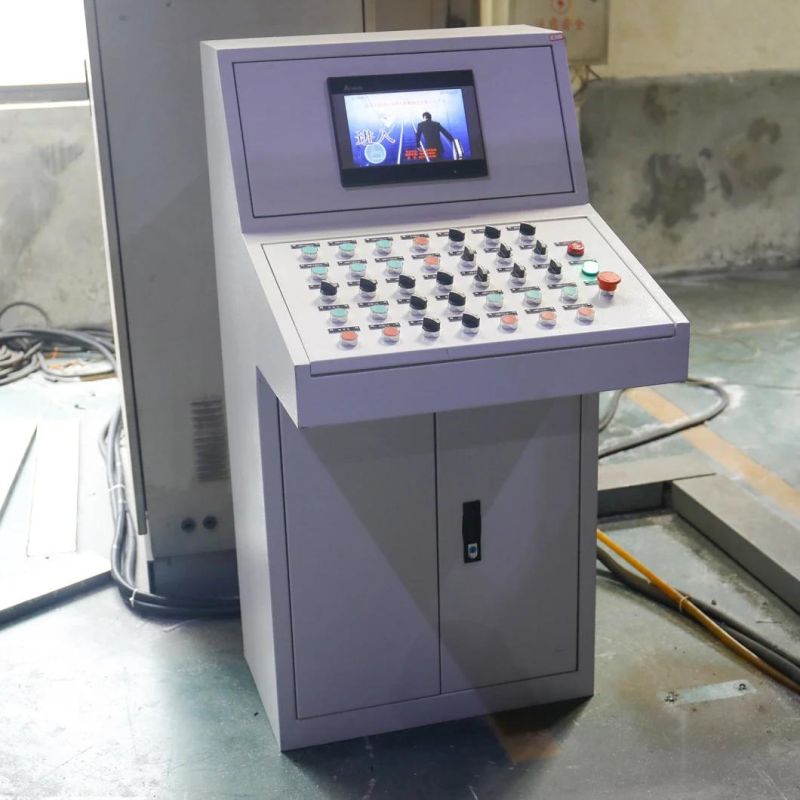

| Control mode: | Touch screen+PLC(Siemens brand) |
| Electric brand: | Schneider,Omron |
| Delivery time: | About 60 days after receive the deposit |
| Overseas Installation period | It depends on machine size,usually takes 10-20days |
| Heating rate: | 3 miniutes from room temperature to 280 degree in oven |
Machine Premium Features:
1. It only need 3mins. from room temperature increase to 250 to 280 degree in oven
2. Arm made of special alloy material of good load
3. Full gear transmission, high efficiency
4. Full automatic operation with Siemens PLC.
5. Heavy duty oven and energy saving
6. Loading and unloading easy for mould
7. Special deep cavity heating technical, suitable for complicated product
8. Internet remote control when machine has problems in overseas.
9. All motors use Siemens brand,burner is Riello from Italy and electric brand is Schneider and Omron.
