Mini PE HDPE LDPE Plastic Film Blowing Machine Price
RUIAN YUNBANG MACHINE CO., LTD.- Type：PE Film Blowing Machine
- Raw Material：PE
- Maximum Folding Width of Film：600mm
- Screw Diameter：50mm
- Automation：Automatic
- Computerized：Computerized
Base Info
- Model NO.：SJ
- Machine Weight：1.5t
- Certification：CE, ISO9001:2008
- Film Thickness：HDPE: 0.008-0.10mm, LDPE: 0.02-0.15mm
- Inverter Brand：Delta Brand
- Motor Brand：Siemens Brand
- Electric Brand：Schneider or Chnt Brand
- Film Width：500mm, 600mm, 700mm, 800mm
- Transport Package：as Requirement
- Specification：CE. SGS
- Trademark：YunBang
- Origin：China
- HS Code：8477309000
- Production Capacity：20 Sets,Month
Description
Basic Info.
Model NO. SJ Machine Weight 1.5t Certification CE, ISO9001:2008 Film Thickness HDPE: 0.008-0.10mm, LDPE: 0.02-0.15mm Inverter Brand Delta Brand Motor Brand Siemens Brand Electric Brand Schneider or Chnt Brand Film Width 500mm, 600mm, 700mm, 800mm Transport Package as Requirement Specification CE. SGS Trademark YunBang Origin China HS Code 8477309000 Production Capacity 20 Sets/MonthProduct Description
Film Blowing Machine-Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance.
-The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity.
-It is applied to blowing the plastic films like low density polytene(LDPE), high density polytene(HDPE) and linear low density polytene(LLDPE).
-It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.
| Model | SJ50-600 | SJ-55-800 |
| Max.film width | 300-600mm | 300-800mm |
| Suitable material | HDPE,LDPE,LLDPE | HDPE,LDPE,LLDPE |
| Max.output | 50-70kg/hr | 80kg/hr |
| Film thickness | 0.008-0.10mm | 0.008-0.10mm |
| Gear box | 146 | 180 |
| Screw diameter | φ50mm from Zhoushan | φ55mm |
| Screw material | SACM-645/38 CRMOALA | SACM-645/38 CRMOALA |
| L/D | 30:1 | 30:1 |
| Main motor | 22kw | 30kw |
| Main motor with inverter | 22kw from delta | 30kw from delta |
| Barrel material | SACM-645/38 CRMOALA | SACM-645/38 CRMOALA |
| Barrel cooling | 250w×2 | 370w×2 |
| Barrel temperature control zone | 3pcs | 4pcs |
| Barrel heating | stainless steel | stainless steel |
| Die size | HD 100mm with fast screen changer | HD 80mm with fast screen changer |
| Die gap | 1.25mm | 1.25mm |
| Die and adapator temp.control | 3pcs | 3pcs |
| Die and adapator heating | stainless steel | Stainless steel |
| Air ring | 600mm HDPE dual air ring | 600mmHDPE dual air ring |
| Fan | 2.2kw with delta inverter adjust spped | 5.5kw with delta inverter adjust spped |
| Traction roller with | φ165×700mm with embossing roller | φ165×850mm with embossing roller |
| Up traction motor | 1.1kw | 1.1kw |
| Up traction inverter | 1.5kw from delta | 1.5kw from delta |
| Traction speed | 5-80m/min | 5-80m/min |
| Wind type | PLC full automatic with flying knife after changing paper core. PLC from MITSUBISHI | PLC full automatic with flying knife after changing paper core PLC from MITSUBISHI |
| Wind motor | 1.5kw | 1.5kw |
| Wind inverter | 1.5kw from delta | 1.5kw from delta |
| Wind speed | 5-80m/min | 5-80m/min |
| Down traction motor | 0.75kw | 0.75kw |
| Down traction inverter | 0.75kw from delta | 0.75kw from delta |
| Traction speed | 5-80m/min | 5-80m/min |
| Alumimum width | 650mm | 850mm |
| Power consume | 31kw | 35kw |
| Machine size | 3800×2050×4000mm | 5000×1800×4200mm |

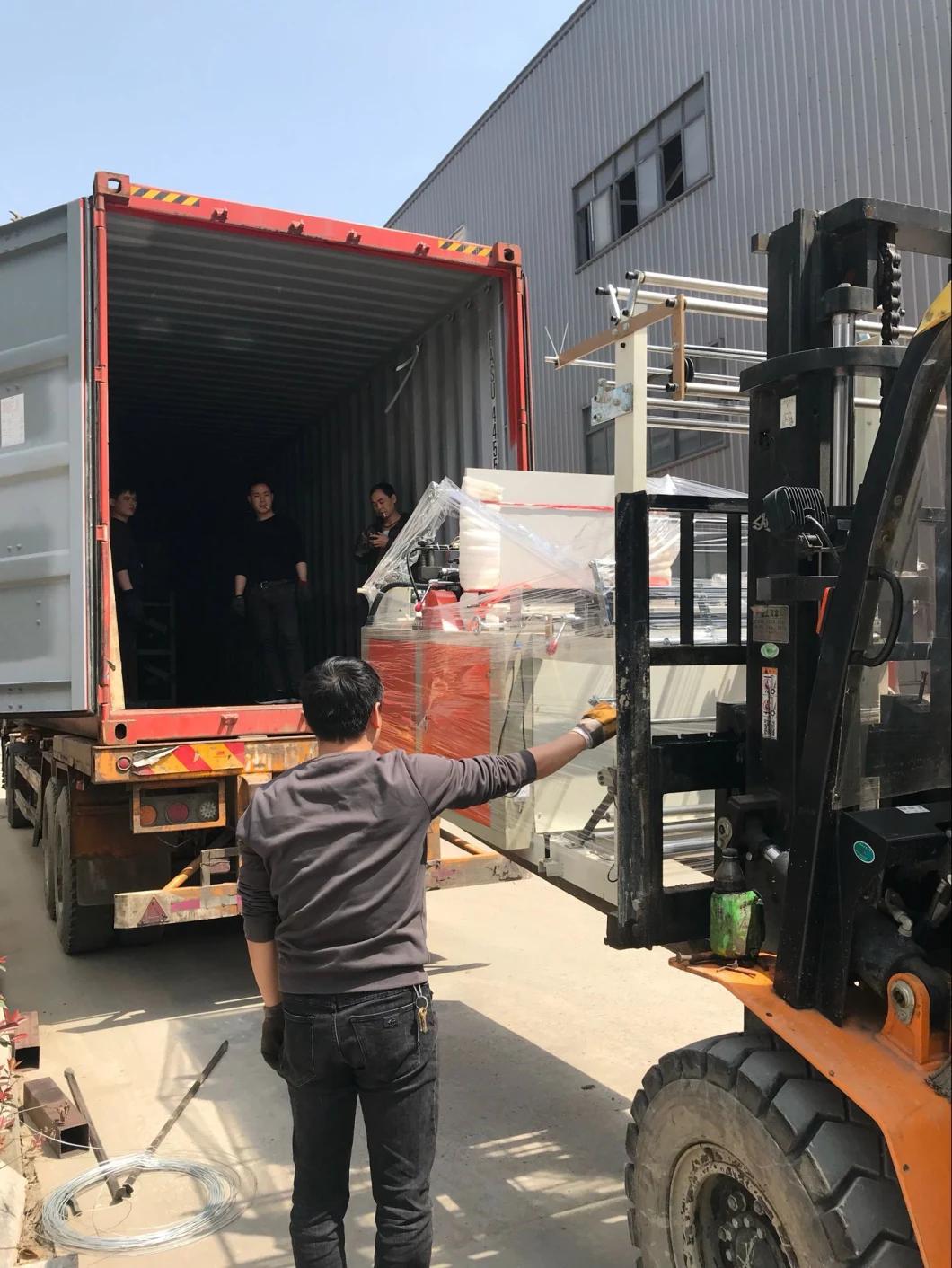

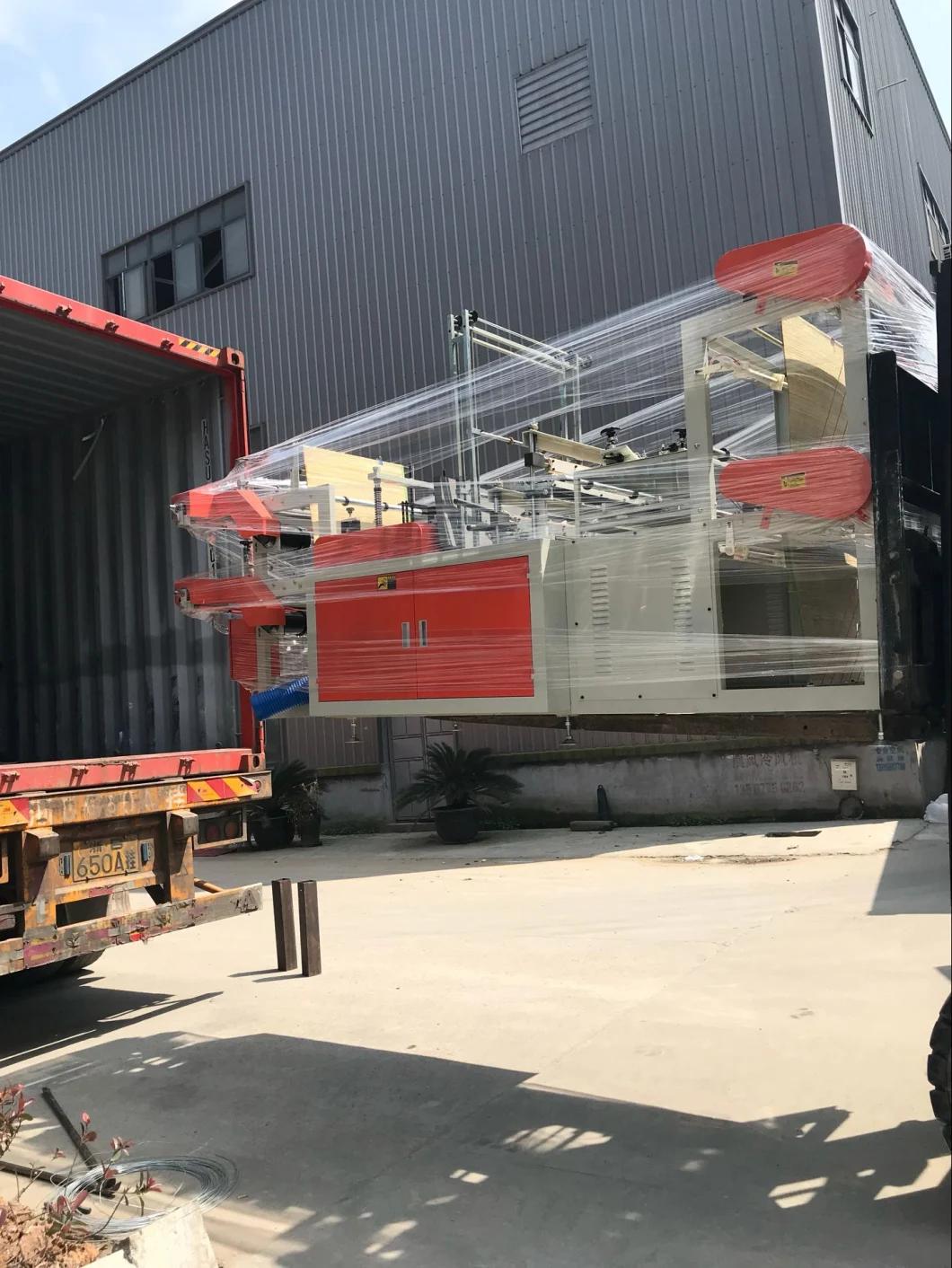

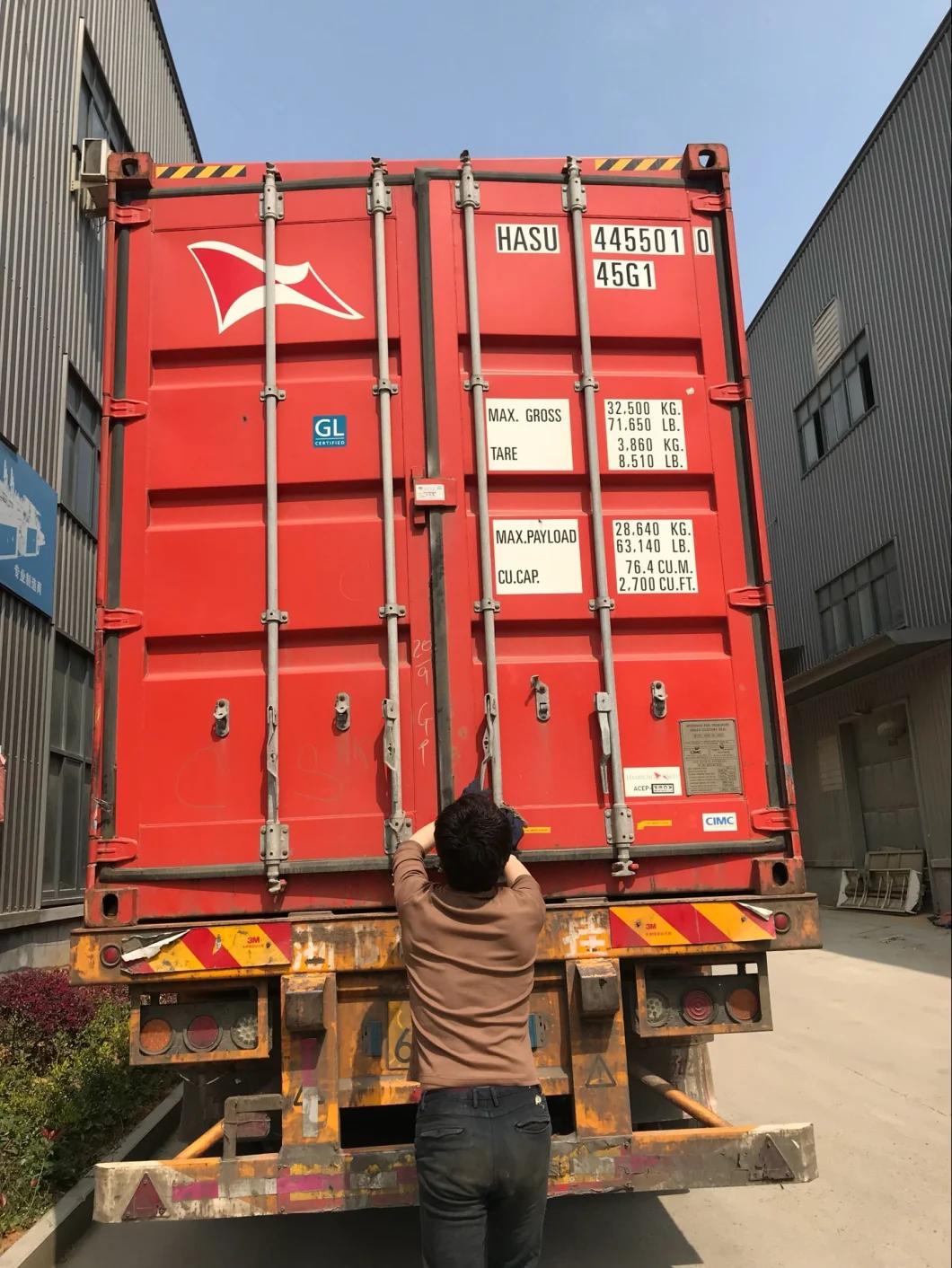

Film Blowing Machine Package and Delivery Pictures:
