Plastic Machinery

PE Film Washing Line / PE Film Recycling Machine

Zhangjiagang Sevenstars Machinery Co., Ltd.
  • Material Processed:Film
  • Plastic Type:PP PE
  • Screw:Multi-Screw
  • Automation:Automation
  • Computerized:Computerized
  • Certification:ISO9001:2008

Base Info

  • Model NO.:PE300, PE500
  • Main Motor:Siemens
  • Contactor:Schneider
  • Capacity:300-1500kg,H
  • Control:PLC
  • Machine Color:Optional
  • Material Connect with Water:Stainless Steel 304
  • Transport Package:Plastic Film Covered by Plywood Case
  • Specification:CE SGS ISO
  • Trademark:Sevenstars
  • Origin:China (Mainland)
  • HS Code:84778000
  • Production Capacity:50sets,Year

Description


WASTE PE. PP FILM CRUSHING WASHING LINE(OUTPUT: 500-700kg/hr)
NO
component items
POWE(kw)
  L*W*H(mm)
  WEIGHT
  (kg)
QTY
1
Belt conveyor
1.5
6000*900*600(3200)
  600
  1
2
PS-1000 Crusher with water
45
1650*1660*2800(2800+920)
1700

3
Screw Loader 1(Φ 500)
11
3500*800*1300
700
1
4
Single Screw friction washing
11+0.75
5300*1300*2150
2200
1
5
Screw Loader 2(Φ 500)
11
3500*800*1300
700
1
6
Floating Tank
2.2+1.1+1.5
6000*1200*2150
2300
1
7
Screw Loader 3(Φ 500)
11
3500*800*1300
700
1
8
Horizontal dryer
30
2300*1750*1900
2200
1
9
Silo

1500*900*3400
130
1
10
electrical control system

800*500*2000
520
1
1000*550*1150
120
1
1, length of production line: 27 m;
2, installed power: 128 kw;
3, equipment noise: 1 meter≤ 80dB; 5  meters≤ 75dB;
4, water consumption for recyling 1T waste material: 1m³ (circulating water);
5, oil burning boiler steam volume: 300kg/h  ; steam pressure 0.7MPa;
vapor temperature: 170° C; average oil consumption per hour: 15-25L;
PE Film Washing Line / PE Film Recycling Machine

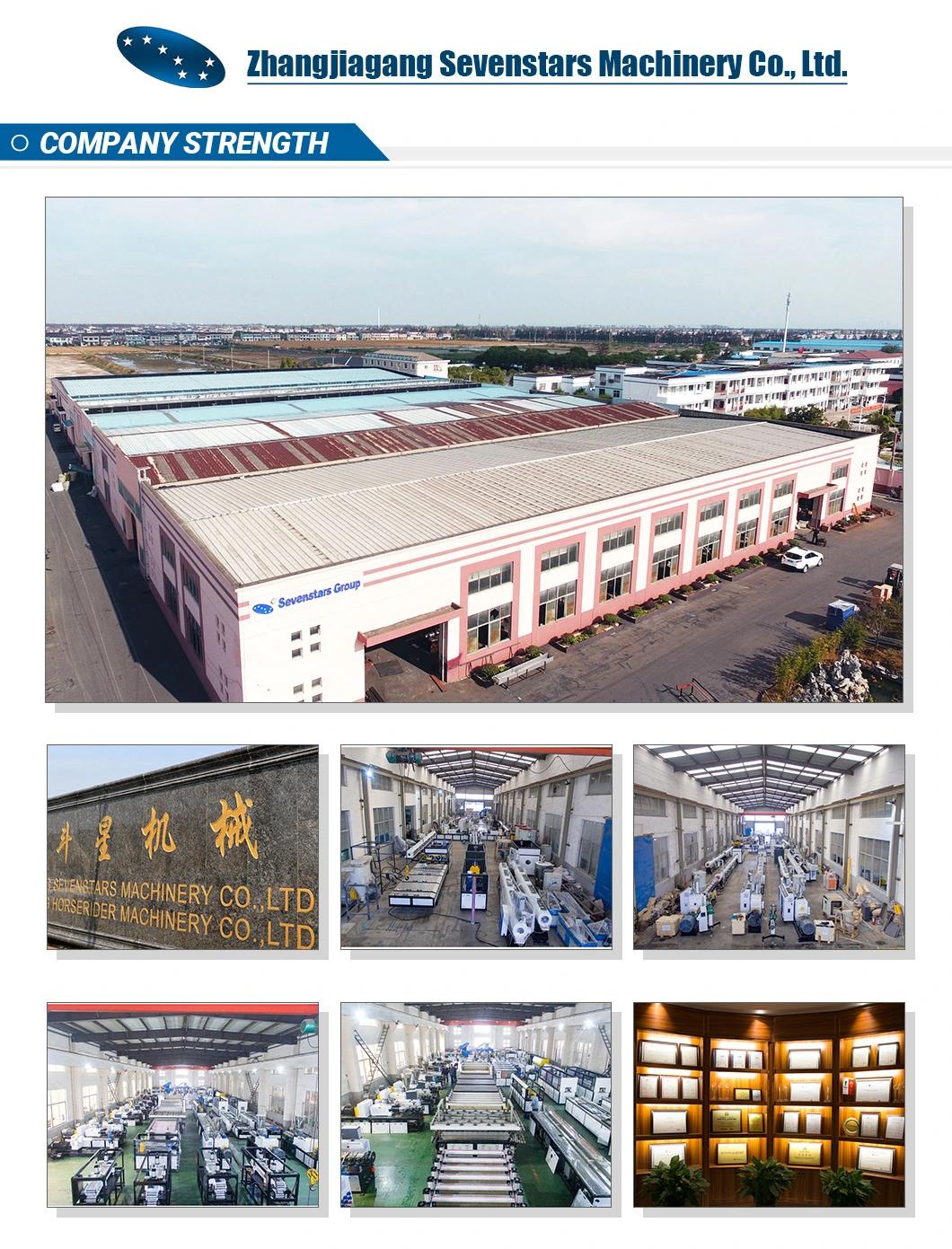

Zhangjiagang sevenstars is located in Zhangjiagang city, China, a beautiful and famous city for all kinds of plastic machine.
